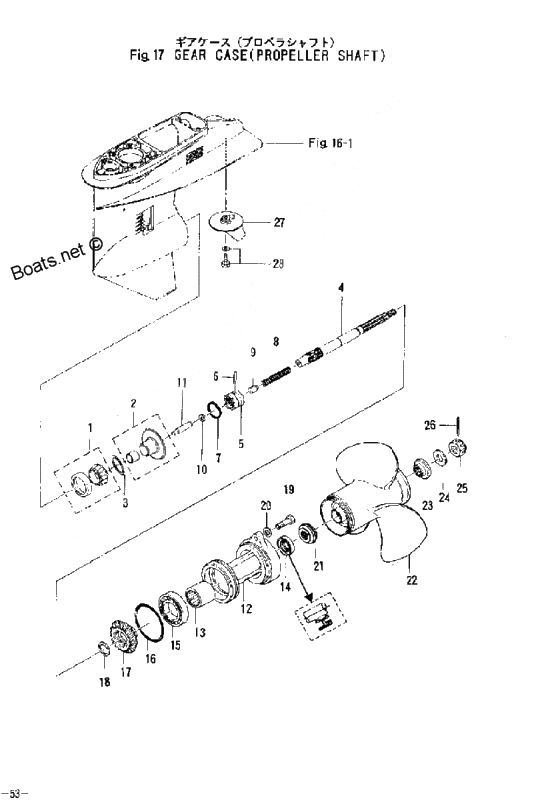

Gear case (propeller shaft) для Tohatsu M50D2 - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    345-60215-0 Taper roller bearing, 32007
    Taper roller bearing, 32007
  • 2
    3C8-64010-1 Bevel Gear A
    Bevel Gear A
  • 3
    353-64036-0 Shim, 36-44-0.3
    Shim, 36-44-0.3
  • 3
    353-64037-0 Shim,36-44-0.15
    Shim,36-44-0.15
  • 3
    353-64038-0 Shim,36-44-0.1
    Shim,36-44-0.1
  • 4
    3C8-64211-0 Propeller Shaft
    Propeller Shaft
  • 5
    3C8-64215-1 Сцепление
    Сцепление
  • 6
    3C8-64217-0 Clutch Pin
    Clutch Pin
  • 7
    3C8-64219-1 Snap, Clutch Pin
    Snap, Clutch Pin
  • 8
    3C8-64221-0 Spring Washer
    40D#35242-50D#52260-
    Spring Washer
    40D#35242-50D#52260-
  • 9
    3C8-64222-0 Spring holder clutch
    40D#35242-50D#52260-
    Spring holder clutch
    40D#35242-50D#52260-
  • 10
    965002-0803 Steel ball, 3/8
    40D#35242-50D#52260-
    Steel ball, 3/8
    40D#35242-50D#52260-
  • 11
    3C8-64223-1 Push rod, clutch
    40D#35242-50D#52260-
    Push rod, clutch
    40D#35242-50D#52260-
  • 12
    3C8S60101-0 Обойма гребного вала
    Обойма гребного вала
  • 13
    345-60211-0 Needle Bearing 22-30-30
    Needle Bearing 22-30-30
  • 14
    334-60223-0 Oil seal, 22-36-10
    Oil seal, 22-36-10
  • 15
    9601-0-6007 Ball bearing, 6007
    Ball bearing, 6007
  • 16
    345-60103-0 O-Ring
    O-Ring
  • 17
    3C8-64030-0 Bevel Gear C
    Bevel Gear C
  • 18
    345-64032-0 Washer
    Washer
  • 19
    3C8-60108-0 Bolt 6-25
    40D#35343-50D#52569-
    Bolt 6-25
    40D#35343-50D#52569-
  • 20
    940103-0600 Washer
    40D#35343-50D#52569-
    Washer
    40D#35343-50D#52569-
  • 21
    3C8-64231-0 Thrust holder propeller
    Thrust holder propeller
  • 22
    348-64103-0 Propeller 14
    Propeller 14
  • 22
    361-64115-0 Propeller 9
    Propeller 9
  • 22
    3E3-64528-0 Propeller 13.5 c (11.0x12.4)
    50D S-L STD
    Propeller 13.5 c (11.0x12.4)
    50D S-L STD
  • 22
    348-64107-0 Propeller 8. 5 (3x285x220) -> 3t
    Propeller 8. 5 (3x285x220) -> 3t
  • 22
    348-64102-0 Propeller 13
    Propeller 13
  • 22
    348-64108-0 Prop 40c d-50d (11.4 dia. x 7.1 pitch) 4 blade
    Prop 40c d-50d (11.4 dia. x 7.1 pitch) 4 blade
  • 348B64108-1 Prop 40c d-50d (11.4 dia. x 7.1 pitch) 4 blade
    Prop 40c d-50d (11.4 dia. x 7.1 pitch) 4 blade
  • 22
    3E3-64526-0 Propeller c 12.5 11.3x11.5
    40D S-L STD, 50D-LL-XL STD
    Propeller c 12.5 11.3x11.5
    40D S-L STD, 50D-LL-XL STD
  • 22
    361-64114-0 Propeller 12
    40D LL-XL STD
    Propeller 12
    40D LL-XL STD
  • 22
    3E3-64536-0 Propeller c16
    Propeller c16
  • 22
    361-64113-0 Propeller 11
    Propeller 11
  • 22
    3E3-64531-0 Propeller c14.5(11.3x13.8)
    Propeller c14.5(11.3x13.8)
  • 22
    361-64109-0 Propeller 10
    Propeller 10
  • 23
    348-64232-0 Stopper Propeller
    Stopper Propeller
  • 24
    345-64124-0 Washer
    Washer
  • 25
    353-64121-0 Nut Propeller
    Nut Propeller
  • 26
    951503-0325 Split Pin
    Split Pin
  • 27
    3C8-60217-0 Trim Tab
    Trim Tab
