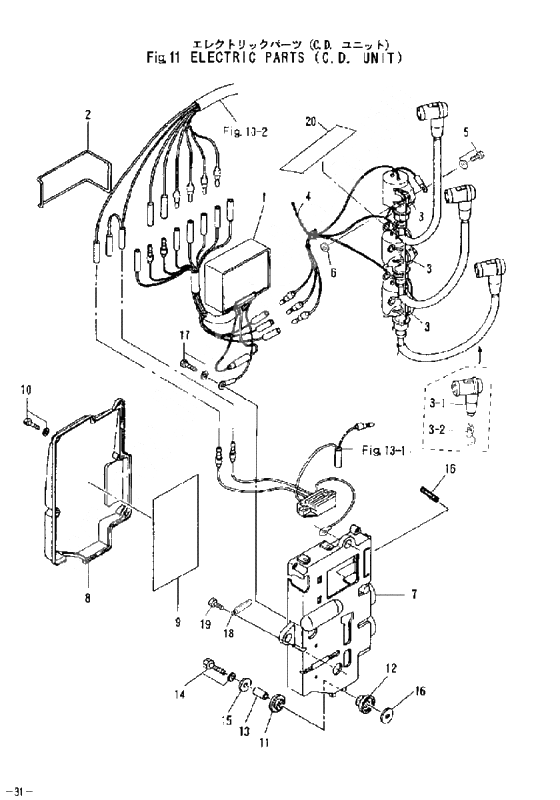

Electric parts (c.d. unit) для Tohatsu M50D2 - 2002 года выпуска`
-
№АртикулНазвание
-
13C8-06160-0 C.D. UnitC.D. Unit
-
23B7-60103-0 O-RingO-Ring
-
33C7-06050-0 Ignition coil ass'yIgnition coil ass'y
-
33C7-06040-0 Ignition Coil
W/RESISTANCE CAPIgnition Coil
W/RESISTANCE CAP -
3-13M2-06291-1 Plug capPlug cap
-
3-13C7-06921-0 Prug cap (with waterproof registance)Prug cap (with waterproof registance)
-
3-23M2-06926-0 Terminal plug capTerminal plug cap
-
4336-76091-0 Band Battery CordBand Battery Cord
-
6151-33159-0 Gasket,combination gaugeGasket,combination gauge
-
73C8-06901-0 Electric bracket
40D#32886-50D#50696Electric bracket
40D#32886-50D#50696 -
83C8-06902-0 Cover electric bracketCover electric bracket
-
93C8-72028-0 Label wiring diagramLabel wiring diagram
-
10921503-5514 Stud BoltStud Bolt
-
11346-67113-0 Mount RubberMount Rubber
-
123B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
13346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
14910103-6630 BoltBolt
-
15346-67115-0 WasherWasher
-
16353-76213-0 Fuse(20ah)Fuse(20ah)
-
203C8-72181-0 Caution labelCaution label
