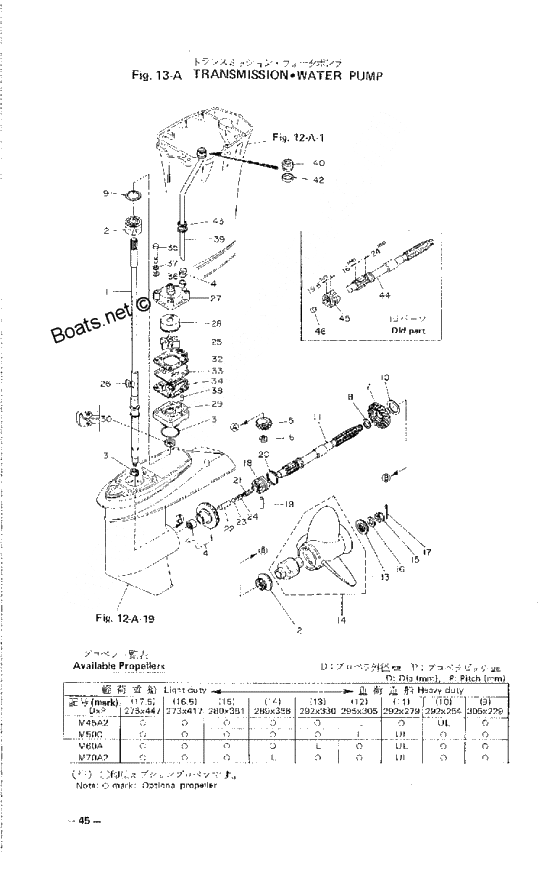

Transmission water pump для Tohatsu M50C - 2002 года выпуска`
-
№АртикулНазвание
-
1353-64302-0 Drive shaft lDrive shaft l
-
1353-64303-0 Drive Shaft ULDrive Shaft UL
-
2353-60213-0 New part
(#6304D)New part
(#6304D) -
3353-64327-0 Пружина валаПружина вала
-
4353-64010-0 Bevel gear a assemblyBevel gear a assembly
-
4-1345-64011-0 Needle bearing 202720Needle bearing 202720
-
5353-64020-0 Bevel Gear BBevel Gear B
-
6353-64027-0 Nut Bevel Gear BNut Bevel Gear B
-
7353-64030-0 Шестерня СШестерня С
-
8353-64032-0 Washer, bevel gear c t=3.0Washer, bevel gear c t=3.0
-
9353-64023-0 Shim
t=0.1, 0.15, 0.3Shim
t=0.1, 0.15, 0.3 -
10353-64033-0 T=0.1, 0.15, 0.3
T=0.1, 0.15, 0.3T=0.1, 0.15, 0.3
T=0.1, 0.15, 0.3 -
113A3-64211-0 Propeller Shaft
Old type partsPropeller Shaft
Old type parts -
12353-64231-0 Thrust holder a propeller
M50C - #20053 - M60A - #20125 M70A2 - 320219 - #20252 #20344 -Thrust holder a propeller
M50C - #20053 - M60A - #20125 M70A2 - 320219 - #20252 #20344 - -
13353-64233-0 Stopper a propellerStopper a propeller
-
14353-64105-0 Propeller 13 (3x11.5x13.0)Propeller 13 (3x11.5x13.0)
-
14353-64106-0 Propeller 14 (3x11.4x14.0)Propeller 14 (3x11.4x14.0)
-
14353-64107-0 353-64107-0353-64107-0
-
14353-64101-0 Propeller 9 (3x12.0x9.0)Propeller 9 (3x12.0x9.0)
-
14353-64108-0 353-64108-0353-64108-0
-
14353-64102-0 353-64102-0353-64102-0
-
14353-64109-0 353-64109-0353-64109-0
-
14353-64103-0 Propeller 11 (3x11.5x11.0)Propeller 11 (3x11.5x11.0)
-
14353-64104-0 Propeller 12 (3x11.6x12.0)Propeller 12 (3x11.6x12.0)
-
15353-64121-0 Nut PropellerNut Propeller
-
16345-64124-0 WasherWasher
-
183A3-64215-0 Clutch
Old type partsClutch
Old type parts -
19353-64218-0 Clutch Pin
6-41.5mmClutch Pin
6-41.5mm -
20353-64219-0 Snap, Clutch PinSnap, Clutch Pin
-
21346-64221-0 Spring ClutchSpring Clutch
-
22353-64223-1 New partNew part
-
243A3-64222-0 Spring holder clutchSpring holder clutch
-
25353-65021-0 New partNew part
-
26353-65022-1 Key water pump impellerKey water pump impeller
-
27353-65016-2 Pump CasePump Case
-
28353-65011-0 Liner, pump caseLiner, pump case
-
29353-65017-0 Pump Case LowerPump Case Lower
-
30345-60223-0 Oil seal 17-33-10Oil seal 17-33-10
-
31345-65015-0 O-Ring
03.02.1947 0:00:00O-Ring
03.02.1947 0:00:00 -
32353-65018-0 Gasket, Water Pump CaseGasket, Water Pump Case
-
33353-65025-0 Guide Plate Water PumpGuide Plate Water Pump
-
34353-65029-0 Gasket Pump Guide PlateGasket Pump Guide Plate
-
35910-13086-5 BoltBolt
-
36940203-0800 WasherWasher
-
37941303-0800 Spring WasherSpring Washer
-
38334-65012-0 СтопорСтопор
-
39353-65110-0 Water Pipe LWater Pipe L
-
39353-65120-0 Water Pipe ULWater Pipe UL
-
40345-65206-0 Upper Seal Rubber Water PipeUpper Seal Rubber Water Pipe
-
41334-65014-0 Seal Rubber Lower, Water PipeSeal Rubber Lower, Water Pipe
-
42345-65205-0 Collar, 18-20-4.5Collar, 18-20-4.5
-
43346-65204-0 Lock Rubber Water PipeLock Rubber Water Pipe
-
44360-64211-0 Propeller Shaft
Old type partsPropeller Shaft
Old type parts -
45353-64215-0 Clutch
Old type partsClutch
Old type parts -
46353-64222-0 Spring holder clutch
Old type partsSpring holder clutch
Old type parts
