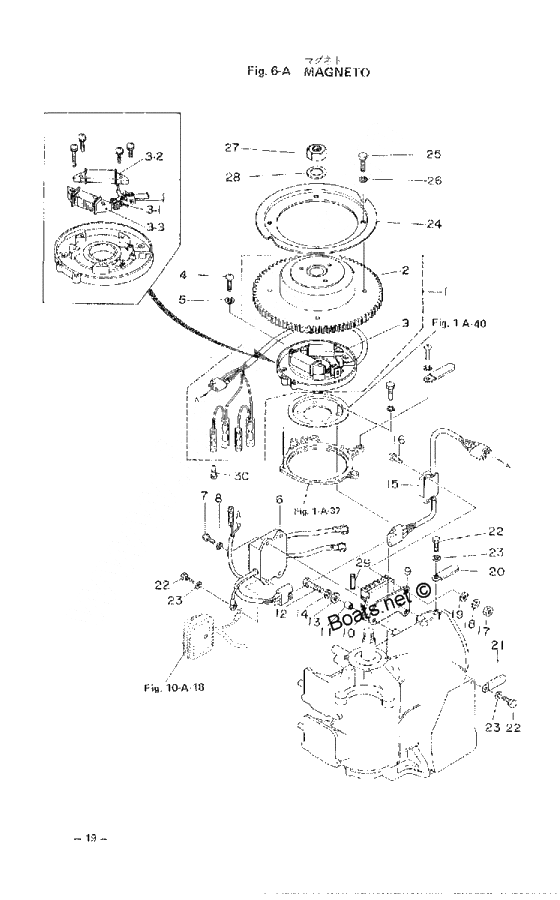

Magneto для Tohatsu M50C - 2002 года выпуска

  • №
    Артикул
    Название
  • 00
    910103-0616 Bolt
    NS50C,NS60A,NS70A2
    Bolt
    NS50C,NS60A,NS70A2
  • 00
    3A3-06987-0 Adaptor cord a
    NS50C,NS60A,NS70A2
    Adaptor cord a
    NS50C,NS60A,NS70A2
  • 00
    353-06281-0 Holder cable terminal
    NS50C,NS60A,NS70A2
    Holder cable terminal
    NS50C,NS60A,NS70A2
  • 00
    910121-0612 Bolt
    NS50C,NS60A,NS70A2
    Bolt
    NS50C,NS60A,NS70A2
  • 00
    353-06260-1 C.d. ingnition unit
    NS50C,NS60A,NS70A2
    C.d. ingnition unit
    NS50C,NS60A,NS70A2
  • 00
    930103-0500 Nut
    NS50C,NS60A,NS70A2
    Nut
    NS50C,NS60A,NS70A2
  • 00
    3A3-06988-0 Adaptor cord b
    NS50C,NS60A,NS70A2
    Adaptor cord b
    NS50C,NS60A,NS70A2
  • 00
    353-06283-0 Collar 6.4-10-4.7
    NS50C,NS60A,NS70A2
    Collar 6.4-10-4.7
    NS50C,NS60A,NS70A2
  • 00
    353-05904-0 Starter pulley
    NS50C,NS60A,NS70A2
    Starter pulley
    NS50C,NS60A,NS70A2
  • 00
    353-06260-2 C.d. ingnition unit
    NS50C,NS60A,NS70A2
    C.d. ingnition unit
    NS50C,NS60A,NS70A2
  • 00
    930103-0600 Nut
    NS50C,NS60A,NS70A2
    Nut
    NS50C,NS60A,NS70A2
  • 00
    3A3-06989-0 Adaptor cord c
    NS50C,NS60A,NS70A2
    Adaptor cord c
    NS50C,NS60A,NS70A2
  • 00
    910103-0620 Bolt
    NS50C,NS60A,NS70A2
    Bolt
    NS50C,NS60A,NS70A2
  • 00
    353-00132-0 Nut 18P1.5
    NS50C,NS60A,NS70A2
    Nut 18P1.5
    NS50C,NS60A,NS70A2
  • 00
    3A3-06260-0 C.d. ingnition unit
    NS50C,NS60A,NS70A2
    C.d. ingnition unit
    NS50C,NS60A,NS70A2
  • 00
    941303-0500 Spring Washer
    NS50C,NS60A,NS70A2
    Spring Washer
    NS50C,NS60A,NS70A2
  • 00
    353-06290-2 Flywheel magneto ass'y
    NS50C,NS60A,NS70A2-WITH RING
    Flywheel magneto ass'y
    NS50C,NS60A,NS70A2-WITH RING
  • 00
    332-66308-0 Washer, fuel tank
    NS50C,NS60A,NS70A2 D6.5-D16-1.5MM
    Washer, fuel tank
    NS50C,NS60A,NS70A2 D6.5-D16-1.5MM
  • 00
    353-00133-0 Washer
    NS50C,NS60A,NS70A2 D19-D34-3MM
    Washer
    NS50C,NS60A,NS70A2 D19-D34-3MM
  • 00
    940-13060-0 Washer
    NS50C,NS60A,NS70A2
    Washer
    NS50C,NS60A,NS70A2
  • 00
    940-13050-0 Washer
    NS50C,NS60A,NS70A2
    Washer
    NS50C,NS60A,NS70A2
  • 00
    3A3-06290-0 Flywheel magneto ass'y
    NS50C,NS60A,NS70A2
    Flywheel magneto ass'y
    NS50C,NS60A,NS70A2
  • 00
    941303-0600 New part
    NS50C,NS60A,NS70A2
    New part
    NS50C,NS60A,NS70A2
  • 00
    353-76213-0 Fuse(20ah)
    NS50C,NS60A,NS70A2
    Fuse(20ah)
    NS50C,NS60A,NS70A2
  • 00
    353-06282-0 Plate cable terminal holder
    NS50C,NS60A,NS70A2
    Plate cable terminal holder
    NS50C,NS60A,NS70A2
  • 00
    353-06972-0 Clamp
    NS50C,NS60A,NS70A2
    Clamp
    NS50C,NS60A,NS70A2
  • 00
    921-51050-8 Screw
    NS50C,NS60A,NS70A2
    Screw
    NS50C,NS60A,NS70A2
  • 00
    921503-5510 Stud Bolt
    NS50C,NS60A,NS70A2
    Stud Bolt
    NS50C,NS60A,NS70A2
  • 00
    3A3-76037-0 Plug B Cable Terminal
    NS50C,NS60A,NS70A2
    Plug B Cable Terminal
    NS50C,NS60A,NS70A2
  • 00
    3A3-06282-0 Plate cable terminal holder
    NS50C,NS60A,NS70A2
    Plate cable terminal holder
    NS50C,NS60A,NS70A2
  • 00
    309-06972-0 Clamp,6.5-47.5P
    NS50C,NS60A,NS70A2
    Clamp,6.5-47.5P
    NS50C,NS60A,NS70A2
  • 00
    941-32050-0 Spring Washer
    NS50C,NS60A,NS70A2
    Spring Washer
    NS50C,NS60A,NS70A2
  • 1
    353-06290-2 Flywheel magneto ass'y
    (with Ring Gear)
    Flywheel magneto ass'y
    (with Ring Gear)
  • 2
    353-06291-1 Flywheel cup
    (with Ring Gear)
    Flywheel cup
    (with Ring Gear)
  • 3
    353-06202-1 Coil plate assembly
    Coil plate assembly
  • 3-1
    345-06222-0 Trigger coil
    Trigger coil
  • 3-2
    346-06221-0 Exciter coil
    Exciter coil
  • 3-3
    346-06223-0 Катушка
    Катушка
  • 6
    353-06260-1 C.d. ingnition unit
    C.d. ingnition unit
  • 8
    940-13060-0 Washer
    Washer
  • 9
    353-06282-0 Plate cable terminal holder
    Plate cable terminal holder
  • 10
    353-06281-0 Holder cable terminal
    Holder cable terminal
  • 11
    353-06283-0 Collar 6.4-10-4.7
    Collar 6.4-10-4.7
  • 12
    910103-0620 Bolt
    Bolt
  • 13
    332-66308-0 Washer, fuel tank
    6.5-16-1.5mm
    Washer, fuel tank
    6.5-16-1.5mm
  • 14
    941303-0600 New part
    New part
  • 15
    353-06265-1 Electronic safety governor (e.s.g.)
    Electronic safety governor (e.s.g.)
  • 16
    921503-5510 Stud Bolt
    Stud Bolt
  • 17
    930103-0500 Nut
    Nut
  • 18
    941-32050-0 Spring Washer
    Spring Washer
  • 19
    940-13050-0 Washer
    Washer
  • 20
    353-06972-0 Clamp
    Clamp
  • 21
    309-06972-0 Clamp,6.5-47.5P
    Clamp,6.5-47.5P
  • 22
    910121-0612 Bolt
    Bolt
  • 24
    353-05904-0 Starter pulley
    Starter pulley
  • 25
    910103-0616 Bolt
    Bolt
  • 27
    353-00132-0 Nut 18P1.5
    Nut 18P1.5
  • 28
    353-00133-0 Washer
    19-34-3mm
    Washer
    19-34-3mm
  • 29
    353-76213-0 Fuse(20ah)
    Fuse(20ah)
  • 30
    3A3-76037-0 Plug B Cable Terminal
    Plug B Cable Terminal
