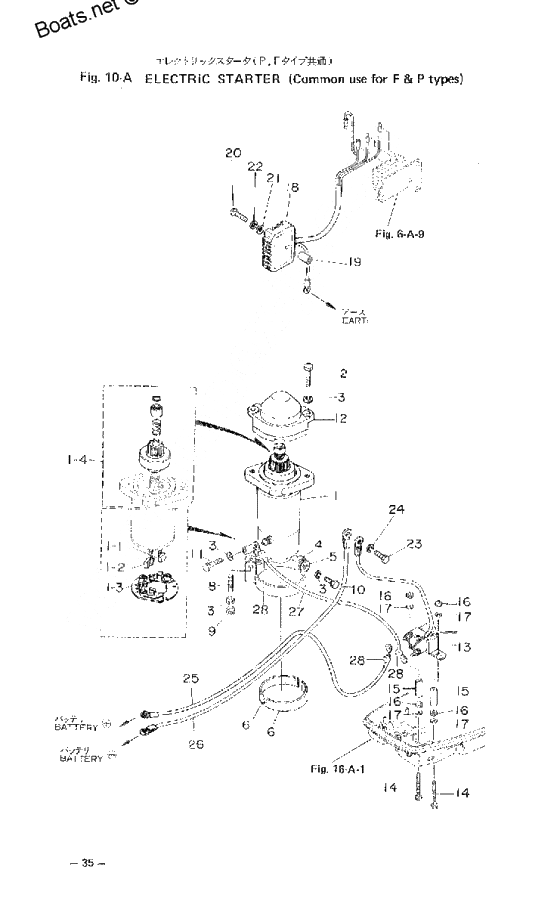

Electric starter для Tohatsu M50C - 2002 года выпуска

  • №
    Артикул
    Название
  • 00
    940-13060-0 Washer
    NS50C,NS60A,NS70A2
    Washer
    NS50C,NS60A,NS70A2
  • 00
    910103-0616 Bolt
    NS50C,NS60A,NS70A2
    Bolt
    NS50C,NS60A,NS70A2
  • 00
    3A3-76120-0 Battery Cord
    NS50C,NS60A,NS70A2
    Battery Cord
    NS50C,NS60A,NS70A2
  • 00
    353-76006-1 Bracket, Starter Motor
    NS50C,NS60A,NS70A2
    Bracket, Starter Motor
    NS50C,NS60A,NS70A2
  • 00
    941-33060-0 Spring Washer
    NS50C,NS60A,NS70A2
    Spring Washer
    NS50C,NS60A,NS70A2
  • 00
    353-76010-1 Starter Motor Ass'y
    NS50C,NS60A,NS70A2
    Starter Motor Ass'y
    NS50C,NS60A,NS70A2
  • 00
    353-76046-0 Spacer, starter solenoid
    NS50C,NS60A,NS70A2
    Spacer, starter solenoid
    NS50C,NS60A,NS70A2
  • 00
    353-76009-2 Band Starter Motor
    NS50C,NS60A,NS70A2
    Band Starter Motor
    NS50C,NS60A,NS70A2
  • 00
    910121-0612 Bolt
    NS50C,NS60A,NS70A2
    Bolt
    NS50C,NS60A,NS70A2
  • 00
    930103-0600 Nut
    NS50C,NS60A,NS70A2
    Nut
    NS50C,NS60A,NS70A2
  • 00
    353-76007-1 Rubber Starter Motor
    NS50C,NS60A,NS70A2
    Rubber Starter Motor
    NS50C,NS60A,NS70A2
  • 00
    390-76120-0 Battery cord (+)
    NS50C,NS60A,NS70A2
    Battery cord (+)
    NS50C,NS60A,NS70A2
  • 00
    941303-0600 New part
    NS50C,NS60A,NS70A2
    New part
    NS50C,NS60A,NS70A2
  • 00
    910103-6820 Bolt
    NS50C,NS60A,NS70A2
    Bolt
    NS50C,NS60A,NS70A2
  • 00
    390-76130-0 Battery cord (-)
    NS50C,NS60A,NS70A2
    Battery cord (-)
    NS50C,NS60A,NS70A2
  • 00
    353-76061-0 Collar, rectifier complete
    NS50C,NS60A,NS70A2
    Collar, rectifier complete
    NS50C,NS60A,NS70A2
  • 00
    910-13084-0 Bolt
    NS50C,NS60A,NS70A2
    Bolt
    NS50C,NS60A,NS70A2
  • 00
    334-76141-0 STARTER CORD
    NS50C,NS60A,NS70A2
    STARTER CORD
    NS50C,NS60A,NS70A2
  • 00
    910-13084-5 Bolt
    NS50C,NS60A,NS70A2
    Bolt
    NS50C,NS60A,NS70A2
  • 00
    921-53065-0 Screw
    NS50C,NS60A,NS70A2
    Screw
    NS50C,NS60A,NS70A2
  • 00
    910-13066-5 Bolt
    NS50C,NS60A,NS70A2
    Bolt
    NS50C,NS60A,NS70A2
  • 00
    334-76145-0 Cap Starter Terminal
    NS50C,NS60A,NS70A2
    Cap Starter Terminal
    NS50C,NS60A,NS70A2
  • 00
    941303-0800 Spring Washer
    NS50C,NS60A,NS70A2
    Spring Washer
    NS50C,NS60A,NS70A2
  • 01
    353-76012-1 Brush (+)
    NS50C,NS60A,NS70A2
    Brush (+)
    NS50C,NS60A,NS70A2
  • 1
    353-76010-1 Starter Motor Ass'y
    Starter Motor Ass'y
  • 1-1
    353-76012-1 Brush (+)
    Brush (+)
  • 1-2
    353-76013-1 Brush (-)
    Brush (-)
  • 1-3
    353-76017-0 Brush Spring
    Brush Spring
  • 1-4
    353-76015-0 Pinion Ass'y
    Pinion Ass'y
  • 02
    353-76013-1 Brush (-)
    NS50C,NS60A,NS70A2
    Brush (-)
    NS50C,NS60A,NS70A2
  • 2
    910-13084-5 Bolt
    Bolt
  • 3
    941303-0800 Spring Washer
    Spring Washer
  • 04
    353-76015-0 Pinion Ass'y
    NS50C,NS60A,NS70A2
    Pinion Ass'y
    NS50C,NS60A,NS70A2
  • 4
    353-76006-1 Bracket, Starter Motor
    Bracket, Starter Motor
  • 5
    353-76009-2 Band Starter Motor
    Band Starter Motor
  • 6
    353-76007-1 Rubber Starter Motor
    Rubber Starter Motor
  • 8
    910103-6820 Bolt
    Bolt
  • 10
    910-13084-0 Bolt
    Bolt
  • 12
    353-76016-2 Pinion cover
    Pinion cover
  • 13
    353-76040-1 Starter Solenoid
    Starter Solenoid
  • 14
    910-13066-5 Bolt
    Bolt
  • 15
    353-76046-0 Spacer, starter solenoid
    Spacer, starter solenoid
  • 17
    941303-0600 New part
    New part
  • 18
    353-76060-1 Rectifier, complete
    Rectifier, complete
  • 19
    353-76061-0 Collar, rectifier complete
    Collar, rectifier complete
  • 20
    921-53065-0 Screw
    Screw
  • 21
    940-13060-0 Washer
    Washer
  • 23
    910121-0612 Bolt
    Bolt
  • 25
    353-76120-0 Battery cord (+)
    Battery cord (+)
  • 26
    353-76130-0 Battery cord (-)
    Battery cord (-)
  • 27
    334-76141-0 STARTER CORD
    STARTER CORD
  • 28
    334-76145-0 Cap Starter Terminal
    Cap Starter Terminal
