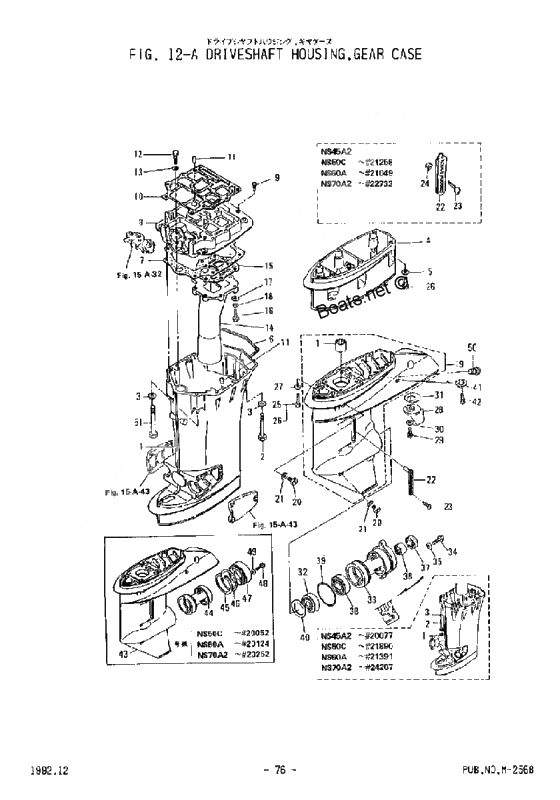

Driveshaft housing, gear case для Tohatsu M50C - 2002 года выпуска`
-
№АртикулНазвание
-
003A3-02311-1 Exhaust Pipe
NS70A2Exhaust Pipe
NS70A2 -
00348-60217-0 Trim Tab
NS50C,NS60A,NS70A2Trim Tab
NS50C,NS60A,NS70A2 -
00338-67179-0 Drain plug engine base
NS50C,NS60A,NS70A2Drain plug engine base
NS50C,NS60A,NS70A2 -
003A3-60984-0 Plug Sub Water Pipe
NS50C,NS60A,NS70A2Plug Sub Water Pipe
NS50C,NS60A,NS70A2 -
00922-53044-5 Screw
NS50C,NS60A,NS70A2Screw
NS50C,NS60A,NS70A2 -
009601-0-6007 Ball bearing, 6007
NS50C,NS60A,NS70A2 (#6007)Ball bearing, 6007
NS50C,NS60A,NS70A2 (#6007) -
003A3-61017-0 Bolt
NS50C,NS60A,NS70A2Bolt
NS50C,NS60A,NS70A2 -
00941303-0600 New part
NS50C,NS60A,NS70A2New part
NS50C,NS60A,NS70A2 -
00353-60219-0 Packing
NS50C,NS60A,NS70A2Packing
NS50C,NS60A,NS70A2 -
00345-01111-0 Dowel Pin 6-12
NS50C,NS60A,NS70A2Dowel Pin 6-12
NS50C,NS60A,NS70A2 -
003A3-61018-0 Bolt
NS50C,NS60A,NS70A2Bolt
NS50C,NS60A,NS70A2 -
003A2-60983-0 Tapping Screw
NS50C,NS60A,NS70A2Tapping Screw
NS50C,NS60A,NS70A2 -
00353-60103-0 O-Ring
NS50C,NS60A,NS70A2 D3.5-D74.6O-Ring
NS50C,NS60A,NS70A2 D3.5-D74.6 -
003A3-61017-1 Bolt
NS50C,NS60A,NS70A2Bolt
NS50C,NS60A,NS70A2 -
00345-60215-0 Taper roller bearing, 32007
NS50C,NS60A,NS70A2Taper roller bearing, 32007
NS50C,NS60A,NS70A2 -
00910-13063-5 Bolt
NS50C,NS60A,NS70A2Bolt
NS50C,NS60A,NS70A2 -
00930403-0400 Nylon Nut
NS50C,NS60A,NS70A2Nylon Nut
NS50C,NS60A,NS70A2 -
00353-64012-0 Shim
NS50C,NS60A,NS70A2 T=0.1,0.15,0.3Shim
NS50C,NS60A,NS70A2 T=0.1,0.15,0.3 -
00940-13080-0 Washer
NS50C,NS60A,NS70A2Washer
NS50C,NS60A,NS70A2 -
00332-60005-0 Oil plug
NS50C,NS60A,NS70A2Oil plug
NS50C,NS60A,NS70A2 -
003A3-60101-0 Housing, Propeller Shaft
NS50C,NS60A,NS70A2Housing, Propeller Shaft
NS50C,NS60A,NS70A2 -
00353-61030-0 Drive shaft housing l
NS50C,NS60A,NS70A2Drive shaft housing l
NS50C,NS60A,NS70A2 -
00940-13060-0 Washer
NS50C,NS60A,NS70A2Washer
NS50C,NS60A,NS70A2 -
00916-13083-5 Bolt, rear
NS50C,NS60A,NS70A2-FOR TRANSOM LBolt, rear
NS50C,NS60A,NS70A2-FOR TRANSOM L -
00346-60204-5 Sub Water Strainer
NS50C,NS60A,NS70A2Sub Water Strainer
NS50C,NS60A,NS70A2 -
00353-61110-0 Extension housing ul
NS50C,NS60A,NS70A2Extension housing ul
NS50C,NS60A,NS70A2 -
00332-60006-0 Gasket (8.1x15.1)
NS50C,NS60A,NS70A2Gasket (8.1x15.1)
NS50C,NS60A,NS70A2 -
00910114-0830 Bolt
NS50C,NS60A,NS70A2Bolt
NS50C,NS60A,NS70A2 -
003A3-61192-1 Drive shaft housing l
NS50C,NS60A,NS70A2Drive shaft housing l
NS50C,NS60A,NS70A2 -
00371-02311-0 Exhaust PipeExhaust Pipe
-
00353-61113-1 Bolt, gear case
NS50C,NS60A,NS70A2-FOR TRANSOM LBolt, gear case
NS50C,NS60A,NS70A2-FOR TRANSOM L -
00171-00053-0 O-Ring
NS50C,NS60A,NS70A2O-Ring
NS50C,NS60A,NS70A2 -
003A3-61012-0 Gasket drive shaft housing
NS50C,NS60A,NS70A2Gasket drive shaft housing
NS50C,NS60A,NS70A2 -
00345-60206-0 Water Strainer
NS50C,NS60A,NS70A2Water Strainer
NS50C,NS60A,NS70A2 -
00940203-0800 Washer
NS50C,NS60A,NS70A2Washer
NS50C,NS60A,NS70A2 -
003A3-61192-2 Drive shaft housing l
NS50C,NS60A,NS70A2Drive shaft housing l
NS50C,NS60A,NS70A2 -
00389-02311-0 Exhaust Pipe
NS50C,NS60A,Exhaust Pipe
NS50C,NS60A, -
00353-61113-0 Bolt, handle b
NS50C,NS60A,NS70A2-FOR TRANSOM XLBolt, handle b
NS50C,NS60A,NS70A2-FOR TRANSOM XL -
00353-01301-1 Engine base
NS50C,NS60A,NS70A2Engine base
NS50C,NS60A,NS70A2 -
00910114-0625 Bolt
NS50C,NS60A,NS70A2Bolt
NS50C,NS60A,NS70A2 -
003A3-60235-0 Water Strainer Set
NS50C,NS60A,NS70A2Water Strainer Set
NS50C,NS60A,NS70A2 -
00353-60111-0 New part
NS50C,NS60A,NS70A2 D24-D38-10MMNew part
NS50C,NS60A,NS70A2 D24-D38-10MM -
00916-13088-5 Bolt
NS50C,NS60A,NS70A2Bolt
NS50C,NS60A,NS70A2 -
01353-60211-0 New part
NS50C,NS60A,NS70A2New part
NS50C,NS60A,NS70A2
