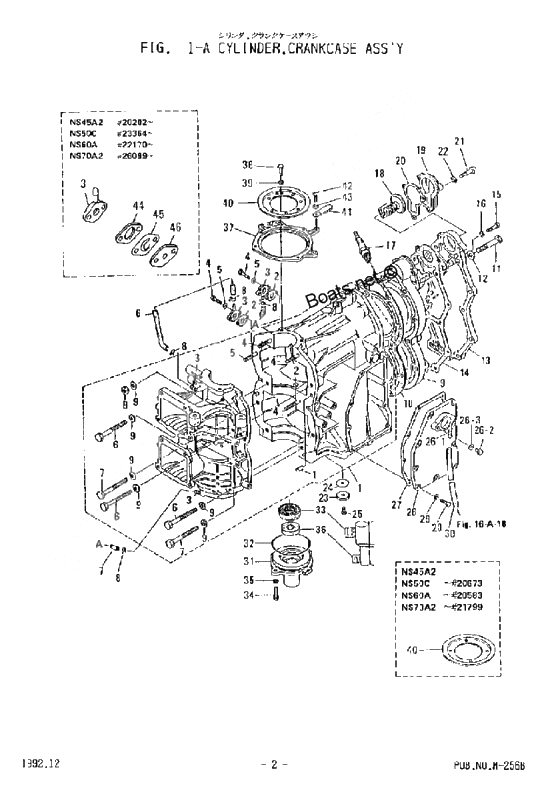

Cylinder, crankcase ass'y для Tohatsu M50C - 2002 года выпуска`
-
№АртикулНазвание
-
00940-13050-0 Washer
NS50C,NS60A,NS70A2Washer
NS50C,NS60A,NS70A2 -
003C7-01154-0 Gasket b, check valve
NS50C,NS60A,NS70A2Gasket b, check valve
NS50C,NS60A,NS70A2 -
00910103-0616 Bolt
NS50C,NS60A,NS70A2Bolt
NS50C,NS60A,NS70A2 -
00346-63722-2 Guide Plate
NS50C,NS60A,NS70A2Guide Plate
NS50C,NS60A,NS70A2 -
009701-0-1016 Spark plug ngk bp8hs-10
NS50C,NS60A,NS70A2 NGK BR8HS-10 F/CANADASpark plug ngk bp8hs-10
NS50C,NS60A,NS70A2 NGK BR8HS-10 F/CANADA -
9701-0-1009 Spark plug ngk bp8hs-10Spark plug ngk bp8hs-10
-
00151-00053-0 O-Ring
NS50C,NS60A,NS70A2O-Ring
NS50C,NS60A,NS70A2 -
00353-01100-2 Cylinder & crank case assembly
NS50CCylinder & crank case assembly
NS50C -
009807-3-0380 Lubrication pipe a
NS50C,NS60A,NS70A2 D3-D7-380MMLubrication pipe a
NS50C,NS60A,NS70A2 D3-D7-380MM -
00353-02301-2 Exhaust Cover
NS50C,NS60A,NS70A2Exhaust Cover
NS50C,NS60A,NS70A2 -
00309-06972-0 Clamp,6.5-47.5P
NS50C,NS60A,NS70A2Clamp,6.5-47.5P
NS50C,NS60A,NS70A2 -
00353-01030-0 サーモスタット
NS50C,NS60A,NS70A2サーモスタット
NS50C,NS60A,NS70A2 -
00126-00121-0 Oil seal 30-45-8
NS50C,NS60A,NS70A2 D3-D45-8MMOil seal 30-45-8
NS50C,NS60A,NS70A2 D3-D45-8MM -
00360-01100-1 Cylinder & crankcase ass'y
NS60A,NS70A2Cylinder & crankcase ass'y
NS60A,NS70A2 -
009807-3-0160 Lubrication pipe b
NS50C,NS60A,NS70A2 D3-D7-160MMLubrication pipe b
NS50C,NS60A,NS70A2 D3-D7-160MM -
00921-51051-0 Screw, throttle lever
NS50C,NS60A,NS70A2Screw, throttle lever
NS50C,NS60A,NS70A2 -
00353-01031-0 Cap, thermostat
NS50C,NS60A,NS70A2Cap, thermostat
NS50C,NS60A,NS70A2 -
00910103-0620 Bolt
NS50C,NS60A,NS70A2Bolt
NS50C,NS60A,NS70A2 -
00338-01133-0 Clip
NS50C,NS60A,NS70A2Clip
NS50C,NS60A,NS70A2 -
00941-32050-0 Spring Washer
NS50C,NS60A,NS70A2Spring Washer
NS50C,NS60A,NS70A2 -
00353-01032-0 Прокладка крышки термостата
NS50C,NS60A,NS70A2Прокладка крышки термостата
NS50C,NS60A,NS70A2 -
00353-01215-0 Oil Seal
NS50C,NS60A,NS70A2 D16.8-D28-6MMOil Seal
NS50C,NS60A,NS70A2 D16.8-D28-6MM -
00916-12087-5 Bolt 11
NS50C,NS60A,NS70A2Bolt 11
NS50C,NS60A,NS70A2 -
00353-01151-0 Check Valve
NS50C,NS60A,NS70A2Check Valve
NS50C,NS60A,NS70A2 -
003C7-01153-0 Gasket a, check valve
NS50C,NS60A,NS70A2Gasket a, check valve
NS50C,NS60A,NS70A2 -
00941303-0600 New part
NS50C,NS60A,NS70A2New part
NS50C,NS60A,NS70A2 -
00353-63723-1 Комплект колец
NS50C,NS60A,NS70A2Комплект колец
NS50C,NS60A,NS70A2 -
00941-32060-0 Spring Washer
NS50C,NS60A,NS70A2Spring Washer
NS50C,NS60A,NS70A2 -
00910-11062-0 Bolt
NS50C,NS60A,NS70A2 P-T/T(2) NUMBER (S) IN ( ) REQBolt
NS50C,NS60A,NS70A2 P-T/T(2) NUMBER (S) IN ( ) REQ -
00353-01152-0 Cap,check valve
NS50C,NS60A,NS70A2Cap,check valve
NS50C,NS60A,NS70A2 -
003C7-01151-0 Check valve b
NS50C,NS60A,NS70A2Check valve b
NS50C,NS60A,NS70A2 -
00338-60218-1 Anode
NS50C,NS60A,NS70A2Anode
NS50C,NS60A,NS70A2 -
00910-11061-6 Bolt
NS50C,NS60A,NS70A2Bolt
NS50C,NS60A,NS70A2 -
009701-0-1009 New part
NS50C,NS60A,NS70A2 NGK B8H510New part
NS50C,NS60A,NS70A2 NGK B8H510 -
009810-5-0420 Pipe, water nipple
NS50C,NS60A,NS70A2 D5-D10-420MMPipe, water nipple
NS50C,NS60A,NS70A2 D5-D10-420MM -
01353-01137-0 L-Nipple
NS50C,NS60A,NS70A2L-Nipple
NS50C,NS60A,NS70A2 -
01345-01111-0 Dowel Pin 6-12
NS50C,NS60A,NS70A2Dowel Pin 6-12
NS50C,NS60A,NS70A2 -
02910-11080-8 Water Plug
NS50C,NS60A,NS70A2Water Plug
NS50C,NS60A,NS70A2 -
02345-00117-0 Dowel Pin
NS50C,NS60A,NS70A2Dowel Pin
NS50C,NS60A,NS70A2 -
03332-60006-0 Gasket (8.1x15.1)
NS50C,NS60A,NS70A2Gasket (8.1x15.1)
NS50C,NS60A,NS70A2 -
03338-01131-1 Золотник
NS50C,NS60A,NS70A2Золотник
NS50C,NS60A,NS70A2 -
05915-34084-0 Stud bolt c
NS50C,NS60A,NS70A2Stud bolt c
NS50C,NS60A,NS70A2 -
06916-14086-0 Bolt a, crank case
NS50C,NS60A,NS70A2Bolt a, crank case
NS50C,NS60A,NS70A2 -
07916-14085-0 Bolt a
NS50C,NS60A,NS70A2Bolt a
NS50C,NS60A,NS70A2 -
08930-11080-0 Nut
NS50C,NS60A,NS70A2Nut
NS50C,NS60A,NS70A2 -
09345-01015-0 Washer
NS50C,NS60A,NS70A2 D8.5-D19.5-3.2MMWasher
NS50C,NS60A,NS70A2 D8.5-D19.5-3.2MM
