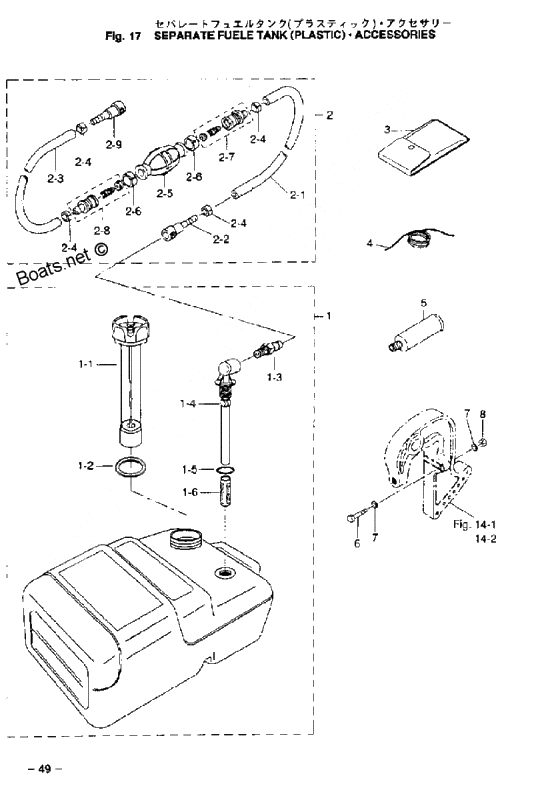

Fuel tank (remote) для Tohatsu M30A4 - 2002 года выпуска
-
№АртикулНазвание
-
13C7-70177-0 New part
UniqueNew part
Unique -
1-13C7-70050-0 Fuel gauge vented cap ass'yFuel gauge vented cap ass'y
-
1-23C7-70021-0 Cap gasketCap gasket
-
1-33E0-70270-0 New partNew part
-
1-43C7-70155-0 Fuel PickupFuel Pickup
-
1-53C7-70199-0 O-RingO-Ring
-
1-63C7-70113-0 FilterFilter
-
23B7-70200-3 New partNew part
-
2-23B2-70281-0 New partNew part
-
2-4332-70201-0 ClampClamp
-
2-53C7-70211-0 Primer BulbPrimer Bulb
-
2-63C7-70217-0 ClampClamp
-
2-73C7-70220-0 Joint a ass'y, inJoint a ass'y, in
-
2-83C7-70224-1 Joint A Ass'y OutJoint A Ass'y Out
-
2-93B2-70250-1 New partNew part
-
3332-72100-0 Tool assyTool assy
-
4332-72201-0 Safety RopeSafety Rope
-
5336-60007-0 New partNew part
-
7940103-0800 Washer -> 940113-0800
EP Type StandardWasher -> 940113-0800
EP Type Standard -
8930103-0800 Nut
EP Type StandardNut
EP Type Standard
Все узлы модели:
- Accessories
- Assembly kit
- Bracket
- Carburator
- Cylinder - crank case assembly
- Driveshaft housing - gear case
- Electric starter (p & f types)
- Fuel pump
- • Fuel tank (remote)
- Gear shift
- Inlet - reed valve
- Magneto
- Meter
- Motor cover
- Piston & crank shaft
- Recoil starter
- Remote control
- Reverse lock
- Starter lock
- Throttle mechanism
- Tiller handle
- Transmision water pump
