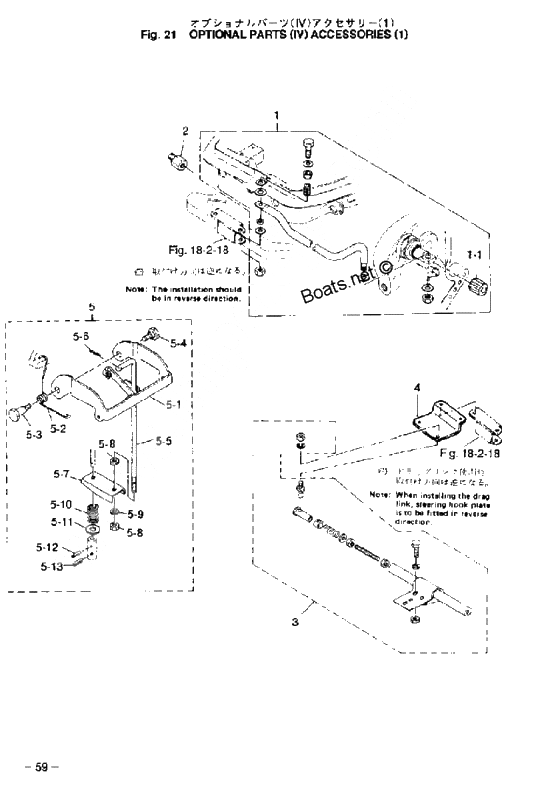

Accessories для Tohatsu M30A4 - 2002 года выпуска
-
№АртикулНазвание
-
1369-76167-0 Extension cord lightExtension cord light
-
1346-84905-1 Drag link c ass'y
EP Type StandardDrag link c ass'y
EP Type Standard -
1-13F3-84908-0 Seal Ring Drag LinkSeal Ring Drag Link
-
2345-67169-0 Grommet lighting cordGrommet lighting cord
-
2353-84904-0 Spacer Drag LinkSpacer Drag Link
-
33P0-76160-0 Rectifier kit
25C3 #50039-, 30A4 #35175-Rectifier kit
25C3 #50039-, 30A4 #35175- -
33A3-84900-1 Tie-bar kit b - no longer avaialbleTie-bar kit b - no longer avaialble
-
3B7-84900-1 Tie-bar kit b - no longer avaialbleTie-bar kit b - no longer avaialble
-
4346-64111-5 Test PropellerTest Propeller
-
4346-84901-0 Plate turn buklePlate turn bukle
-
53A1-63039-0 Long handle 0.8mLong handle 0.8m
-
53A1-63038-0 Long handle 1.0mLong handle 1.0m
-
5346-66901-0 Clutch lever,reverse lock kitClutch lever,reverse lock kit
-
5-1346-66902-0 Reverse Lock
, to be Purchased as an AssemblyReverse Lock
, to be Purchased as an Assembly -
5-10346-66906-0 Spring link plate
, to be Purchased as an AssemblySpring link plate
, to be Purchased as an Assembly -
5-11346-66909-0 Spring holder
, to be Purchased as an AssemblySpring holder
, to be Purchased as an Assembly -
5-12951403-0310 New part
, to be Purchased as an AssemblyNew part
, to be Purchased as an Assembly -
5-13951403-0314 Spring Washer
, to be Purchased as an AssemblySpring Washer
, to be Purchased as an Assembly -
5-2346-66903-0 Spring reverse lock
, to be Purchased as an AssemblySpring reverse lock
, to be Purchased as an Assembly -
5-3346-66904-0 Shaft b reverse lock arm
, to be Purchased as an AssemblyShaft b reverse lock arm
, to be Purchased as an Assembly -
5-4332-66307-0 Shaft Reverse Lock
, to be Purchased as an AssemblyShaft Reverse Lock
, to be Purchased as an Assembly -
5-5346-66908-0 Link reverse lock
, to be Purchased as an AssemblyLink reverse lock
, to be Purchased as an Assembly -
5-6951503-0212 Split Pin
, to be Purchased as an AssemblySplit Pin
, to be Purchased as an Assembly -
5-7346-66905-0 Plate reverse lock link
, to be Purchased as an AssemblyPlate reverse lock link
, to be Purchased as an Assembly -
5-8930103-0500 Nut
, to be Purchased as an AssemblyNut
, to be Purchased as an Assembly -
5-9941303-0500 Spring Washer
, to be Purchased as an AssemblySpring Washer
, to be Purchased as an Assembly -
63Y9-72304-0 Engine oil, 4.0l
Engine Oil N.A.F.N.Engine oil, 4.0l
Engine Oil N.A.F.N. -
63AC-72300-0 Tohatsu super gold (1.0 liter)
Engine Oil N.A.F.N.Tohatsu super gold (1.0 liter)
Engine Oil N.A.F.N. -
7332-72305-0 Gear oil (260cc)
30 Tubes/Case N.A.F.N.Gear oil (260cc)
30 Tubes/Case N.A.F.N. -
7332-72306-0 Gear oil (500ml)
20 Tubes/Case N.A.F.N.Gear oil (500ml)
20 Tubes/Case N.A.F.N. -
8332-72309-0 Grease (250g)
24 Tubes/Case N.A.F.N.Grease (250g)
24 Tubes/Case N.A.F.N. -
93B7-72326-0 Paint tohatsu (92-05) - nissan (00-05) 12 oz spray -silver-gray
N.A.F.N.Paint tohatsu (92-05) - nissan (00-05) 12 oz spray -silver-gray
N.A.F.N. -
10380-72312-0 Vinyl motor cover
UniqueVinyl motor cover
Unique -
11332-72401-0 Outboard stand casterOutboard stand caster
-
12332-72402-0 StandStand
-
133F3-72540-0 Ignition CheckerIgnition Checker
