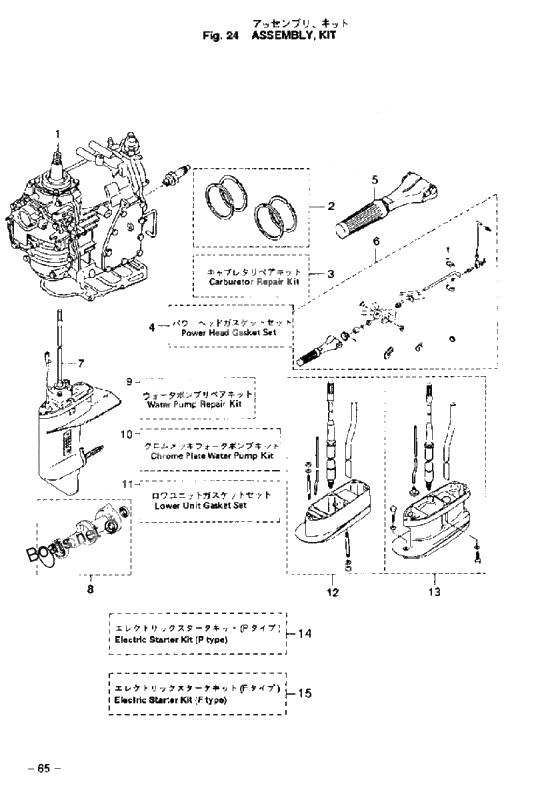

Assembly kit для Tohatsu M30A4 - 2002 года выпуска
-
№АртикулНазвание
-
13P0B87100-0 Short block 25/30/2-stroke (cw nut 9311211600m)
Incl. Engine Base, Gasket, and Spark PlugsShort block 25/30/2-stroke (cw nut 9311211600m)
Incl. Engine Base, Gasket, and Spark Plugs -
3P1B87090-9 Short block 25/30/2-stroke (cw nut 9311211600m)Short block 25/30/2-stroke (cw nut 9311211600m)
-
2346-87123-0 Кольца поршневыеКольца поршневые
-
2346-00011-0 2-е поршневое кольцо2-е поршневое кольцо
-
2346-87124-0 Кольца поршневыеКольца поршневые
-
2346-00014-0 Кольцо поршневое(+0,5мм)Кольцо поршневое(+0,5мм)
-
3334-03242-0 Игольчатый клапанИгольчатый клапан
-
3346-02011-0 Gasket, carburettorGasket, carburettor
-
3334-03244-0 ClipClip
-
3922531-6414 Stud BoltStud Bolt
-
3346-03256-0 Rubber capRubber cap
-
3346-03222-0 O-ring, floatO-ring, float
-
3346-03265-0 Stop ScrewStop Screw
-
3346-03231-0 FloatFloat
-
3346-03266-0 Adjust ScrewAdjust Screw
-
3346-03232-0 Arm Pin FloatArm Pin Float
-
3336-03293-0 O-RingO-Ring
-
3346-03240-0 Float ValveFloat Valve
-
3346-87122-0 Carburetor Rerair KitCarburetor Rerair Kit
-
4346-01005-0 Gasket cylinder headGasket cylinder head
-
4346-01032-0 New partNew part
-
4346-02305-0 Gasket exhaust coverGasket exhaust cover
-
4346-00122-0 OIL SEAL LOWER, CRANKSHAFTOIL SEAL LOWER, CRANKSHAFT
-
4338-01403-0 O-RingO-Ring
-
4346-01215-0 New partNew part
-
43A1-87121-0 Power Head Gasket SetPower Head Gasket Set
-
5398S63003-0 Handle ass'yHandle ass'y
-
3M3S63005-0 Handle ass'yHandle ass'y
-
63A1S63000-0 Handle kitHandle kit
-
7346S87301-6 Lower unit ass'y s
for Transom S""Lower unit ass'y s
for Transom S"" -
7346S87302-6 Lower unit ass'y l
for Transom L""Lower unit ass'y l
for Transom L"" -
8346S87323-5 Propeller shaft housing ass'yPropeller shaft housing ass'y
-
9345-65021-0 Крыльчатка водной помпыКрыльчатка водной помпы
-
9348-65011-0 Liner, pump caseLiner, pump case
-
9348-65025-0 Guide plate, water pumpGuide plate, water pump
-
9348-65029-1 Gasket, pump guide plateGasket, pump guide plate
-
9348-65018-0 Прокладка насосаПрокладка насоса
-
9361-87322-0 ウォ-タ-ポンプリペアキットウォ-タ-ポンプリペアキット
-
9332-65022-0 Key, pump impellerKey, pump impeller
-
10361-65238-0 Liner chrome plated water pump caseLiner chrome plated water pump case
-
10361-65239-0 Guide plate chrome plated water pumpGuide plate chrome plated water pump
-
10361-65231-0 Chrome Plated Water Pump KitChrome Plated Water Pump Kit
-
11346-65013-0 Oil' seal, 17-30-9
Pump Case, тИЕ17 - тИЕ30 - 9mmOil' seal, 17-30-9
Pump Case, тИЕ17 - тИЕ30 - 9mm -
11336-62415-0 O-Ring
тИЕ3.5 - тИЕ36O-Ring
тИЕ3.5 - тИЕ36 -
11332-66021-0 O-Ring
тИЕ2.4 - тИЕ5.8O-Ring
тИЕ2.4 - тИЕ5.8 -
11346-87321-6 Набор прокладокНабор прокладок
-
346-87321-7 Набор прокладокНабор прокладок
-
113C8-66032-0 O-Ring
тИЕ3.5 - тИЕ21.7O-Ring
тИЕ3.5 - тИЕ21.7 -
11332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
11332-60103-0 O-Ring
тИЕ3 - тИЕ62.5O-Ring
тИЕ3 - тИЕ62.5 -
11346-60111-0 Oil seal, 18-28-8
Propeller Shaft тИЕ18 - тИЕ28 - 8mmOil seal, 18-28-8
Propeller Shaft тИЕ18 - тИЕ28 - 8mm -
13346S87314-6 Extension housing kit ul
25C2 #40911-, 30A3 #40911-, 30A3 #30720-Extension housing kit ul
25C2 #40911-, 30A3 #40911-, 30A3 #30720- -
14-1361-76050-0 Choke Solenoid
* Assembly or Kit PartChoke Solenoid
* Assembly or Kit Part -
14-1930103-0600 Nut
* Assembly or Kit PartNut
* Assembly or Kit Part -
14-13B7-76145-0 Terminal Cap
* Assembly or Kit PartTerminal Cap
* Assembly or Kit Part -
14-1910103-0835 Bolt
* Assembly or Kit PartBolt
* Assembly or Kit Part -
14-1345-76023-0 Grommet 22-2.5
* Assembly or Kit PartGrommet 22-2.5
* Assembly or Kit Part -
14-1353-06283-0 Collar 6.4-10-4.7
* Assembly or Kit PartCollar 6.4-10-4.7
* Assembly or Kit Part -
14-1346-76057-0 Hook choke solenoid
* Assembly or Kit PartHook choke solenoid
* Assembly or Kit Part -
14-1941303-0600 New part
* Assembly or Kit PartNew part
* Assembly or Kit Part -
14-1334-76141-0 STARTER CORD
150mm, * Assembly or Kit PartSTARTER CORD
150mm, * Assembly or Kit Part -
14-1930103-0800 Nut
* Assembly or Kit PartNut
* Assembly or Kit Part -
14-1346-76007-0 Rubber stater motor
* Assembly or Kit PartRubber stater motor
* Assembly or Kit Part -
14-1910103-0620 Bolt
* Assembly or Kit PartBolt
* Assembly or Kit Part -
14-1951403-0312 Spring Washer
тИЕ3 - 12mm, * Assembly or Kit PartSpring Washer
тИЕ3 - 12mm, * Assembly or Kit Part -
14-13G2-76060-0 Rectifier complete
* Assembly or Kit PartRectifier complete
* Assembly or Kit Part -
14-1910103-0612 New part
* Assembly or Kit PartNew part
* Assembly or Kit Part -
14-13G2-76142-0 Ground cord
* Assembly or Kit PartGround cord
* Assembly or Kit Part -
14-1941303-0800 Spring Washer
* Assembly or Kit PartSpring Washer
* Assembly or Kit Part -
14-1309-06972-0 Clamp,6.5-47.5P
* Assembly or Kit PartClamp,6.5-47.5P
* Assembly or Kit Part -
14-1346-76072-1 Rod choke shaft
* Assembly or Kit PartRod choke shaft
* Assembly or Kit Part -
14-1921503-0525 Stud Bolt
* Assembly or Kit PartStud Bolt
* Assembly or Kit Part -
14-13B2-76147-0 STARTER CORD
200mm, * Assembly or Kit PartSTARTER CORD
200mm, * Assembly or Kit Part -
14-1346-76040-0 Starter Solenoid
* Assembly or Kit PartStarter Solenoid
* Assembly or Kit Part -
14-1346-76081-0 Bracket neutral switch
* Assembly or Kit PartBracket neutral switch
* Assembly or Kit Part -
14-1921503-6408 Stud Bolt
* Assembly or Kit PartStud Bolt
* Assembly or Kit Part -
14-1930103-0500 Nut
* Assembly or Kit PartNut
* Assembly or Kit Part -
14-13A3-76145-0 Cap Starter Terminal
* Assembly or Kit PartCap Starter Terminal
* Assembly or Kit Part -
14-1346-76043-1 Bracket starter solenoid
* Assembly or Kit PartBracket starter solenoid
* Assembly or Kit Part -
14-13B2-76062-0 Fuse wire ass'y
355mm, * Assembly or Kit PartFuse wire ass'y
355mm, * Assembly or Kit Part -
14-13P0-76000-0 Electric starter kit (p)
25C3 #50039-, 30A4 #35175-Electric starter kit (p)
25C3 #50039-, 30A4 #35175- -
14-1336-06973-0 Clamp Lead Wire
* Assembly or Kit PartClamp Lead Wire
* Assembly or Kit Part -
14-1941303-0500 Spring Washer
* Assembly or Kit PartSpring Washer
* Assembly or Kit Part -
14-1336-76091-0 Band Battery Cord
* Assembly or Kit PartBand Battery Cord
* Assembly or Kit Part -
14-1910103-0616 Bolt
* Assembly or Kit PartBolt
* Assembly or Kit Part -
14-13B2-76120-0 Battery cable +/- (new style) 8.2 ft.
* Assembly or Kit PartBattery cable +/- (new style) 8.2 ft.
* Assembly or Kit Part -
3V1-76120-2 Battery cable +/- (new style) 8.2 ft.Battery cable +/- (new style) 8.2 ft.
-
14-1346-76010-0 Stater motor ass'y
* Assembly or Kit PartStater motor ass'y
* Assembly or Kit Part -
14-1921503-0612 Stud Bolt
* Assembly or Kit PartStud Bolt
* Assembly or Kit Part -
14-1353-06281-0 Holder cable terminal
* Assembly or Kit PartHolder cable terminal
* Assembly or Kit Part
