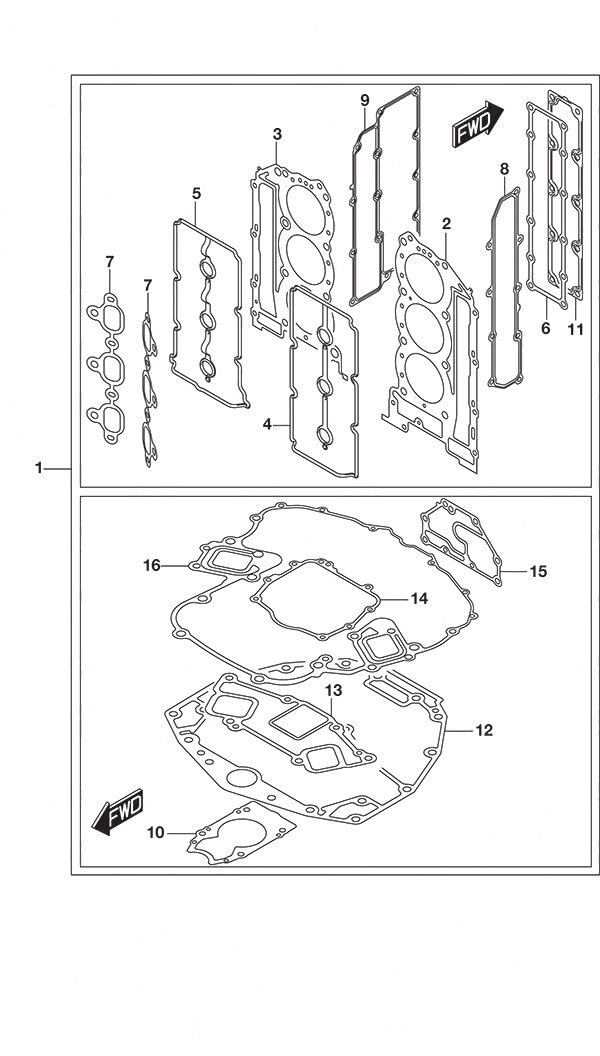

Fig. 585 - Opt: Gasket Set для Suzuki DF 300AP - 2015 года выпуска
-
№АртикулНазвание
-
111410-98830-000 Engine Gasket SetEngine Gasket Set
-
211141-98J10-000 • Starboard Cylinder Head Gasket• Starboard Cylinder Head Gasket
-
311142-98J10-000 • Port Cylinder Head Gasket• Port Cylinder Head Gasket
-
411179-93J00-000 • Cylinder Head Cover Gasket - Starboard• Cylinder Head Cover Gasket - Starboard
-
511189-93J00-000 • Cylinder Head Cover Gasket - Port• Cylinder Head Cover Gasket - Port
-
611332-93J00-000 • Crankcase Water Jacket Cover Gasket• Crankcase Water Jacket Cover Gasket
-
713119-98J00-000 • Intake Manifold Gasket• Intake Manifold Gasket
-
814152-93J00-000 • Port Exhaust Cover Gasket• Port Exhaust Cover Gasket
-
914152-93J00-000 • Port Exhaust Cover Gasket• Port Exhaust Cover Gasket
-
1017472-98J00-000 • Water Pump Plate Gasket• Water Pump Plate Gasket
-
1111272-93J00-000 • Cylinder Block Plate Gasket• Cylinder Block Plate Gasket
-
1211489-93J00-000 • Oil Pan Gasket• Oil Pan Gasket
-
1314212-93J00-000 • Exhaust Tube Gasket• Exhaust Tube Gasket
-
1451123-93J01-000 • Mount Oil Seal Cover Gasket• Mount Oil Seal Cover Gasket
-
1551142-93J00-000 • Engine Holder Cover Gasket• Engine Holder Cover Gasket
-
1651211-93J00-000 • Engine Holder Gasket• Engine Holder Gasket
