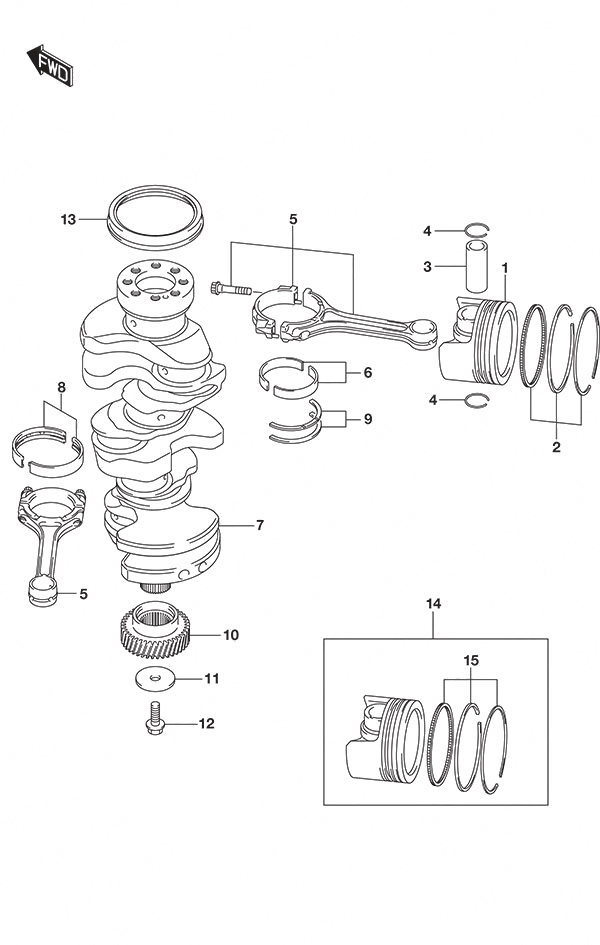

Fig. 116 - Crankshaft для Suzuki DF 300AP - 2015 года выпуска
-
№АртикулНазвание
-
112111-98J00-0B0 PistonPiston
-
212140-98J10-000 Piston Ring SetPiston Ring Set
-
312151-02F00-000 Piston PinPiston Pin
-
409381-22010-000 Piston Pin CirclipPiston Pin Circlip
-
512160-98J00-000 Connecting Rod AssemblyConnecting Rod Assembly
-
6-112100-98810-0A0 Connrod Bearing Set (Green)Connrod Bearing Set (Green)
-
6-212100-98810-025 Connrod Bearing Set (US:0.25)
OPTIONALConnrod Bearing Set (US:0.25)
OPTIONAL -
712220-98J00-000 CrankshaftCrankshaft
-
8-112340-98J00-0A0 Crankshaft Bearing Set (Black)Crankshaft Bearing Set (Black)
-
8-212340-98J00-0B0 Crankshaft Bearing Set (Non)Crankshaft Bearing Set (Non)
-
8-312340-98J00-0C0 Crankshaft Bearing Set (Yellow)Crankshaft Bearing Set (Yellow)
-
8-412340-98J00-0D0 Crankshaft Bearing Set (Blue)Crankshaft Bearing Set (Blue)
-
8-512340-98J00-0E0 Crankshaft Bearing Set (Pink)Crankshaft Bearing Set (Pink)
-
8-612300-98810-0AA Crankshaft Bearing Set (Red/Black) (NLA)
OPTIONAL US:0.25Crankshaft Bearing Set (Red/Black) (NLA)
OPTIONAL US:0.25 -
8-712300-98810-0BA Crankshaft Bearing Set (Red) (NLA)
OPTIONAL US:0.25Crankshaft Bearing Set (Red) (NLA)
OPTIONAL US:0.25 -
8-812300-98810-0CA Crankshaft Bearing Set (Red/Yellow) (NLA)
OPTIONAL US:0.25Crankshaft Bearing Set (Red/Yellow) (NLA)
OPTIONAL US:0.25 -
8-912300-98810-0DA Crankshaft Bearing Set (Red/Blue) (NLA)
OPTIONAL US:0.25Crankshaft Bearing Set (Red/Blue) (NLA)
OPTIONAL US:0.25 -
8-1012300-98810-0EA Crankshaft Bearing Set (Red/Pink) (NLA)
OPTIONAL US:0.25Crankshaft Bearing Set (Red/Pink) (NLA)
OPTIONAL US:0.25 -
9-112300-98821-000 Crank Thrust Bearing SetCrank Thrust Bearing Set
-
9-212300-98821-012 Crank Thrust Bearing Set (OS:0.12) (NLA)
OPTIONALCrank Thrust Bearing Set (OS:0.12) (NLA)
OPTIONAL -
1012242-98J00-000 Drive GearDrive Gear
-
1109160-10104-000 Drive Gear Washer (NLA)Drive Gear Washer (NLA)
-
1201550-1025A-000 BoltBolt
-
1309283-91001-000 Crankshaft Oil SealCrankshaft Oil Seal
-
1412100-98J00-050 Piston & Ring Set (OS:.050)
OPTIONALPiston & Ring Set (OS:.050)
OPTIONAL -
1512140-98J00-050 • Piston Ring Set (OS:0.50)
OPTIONAL• Piston Ring Set (OS:0.50)
OPTIONAL
