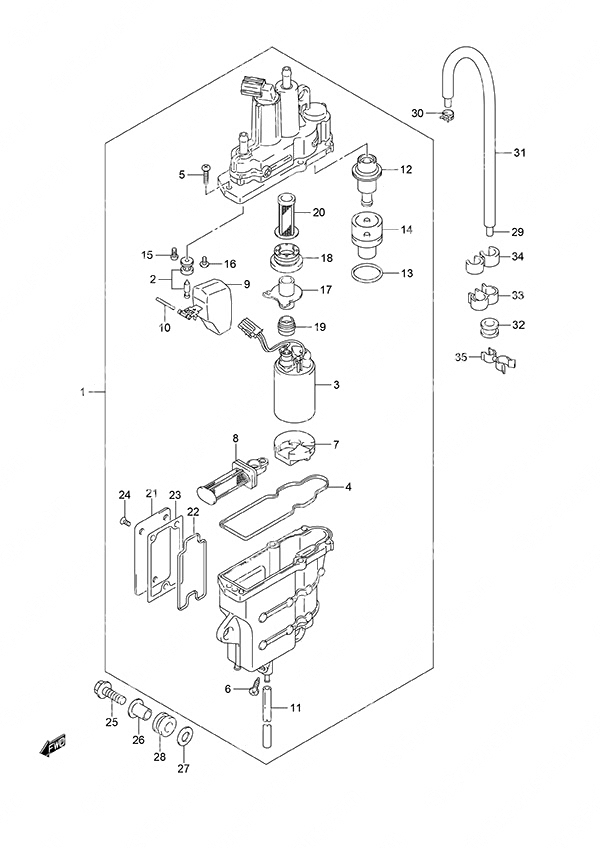

Fig. 16 - Fuel Vapor Separator для Suzuki DF 60A - 2014 года выпуска`
-
№АртикулНазвание
-
115600-88L05-000 Fuel Vapor Separator AssemblyFuel Vapor Separator Assembly
-
213370-88L10-000 • Needle Valve Assembly• Needle Valve Assembly
-
315200-88L00-000 • Fuel Pump Assembly• Fuel Pump Assembly
-
415626-88L01-000 • Seal• Seal
-
515628-99E00-000 • Screw (L:15)• Screw (L:15)
-
615629-99E10-000 • Drain Screw• Drain Screw
-
715641-88L00-000 • Spacer• Spacer
-
815642-88L00-000 • Fuel Filter• Fuel Filter
-
915650-99E00-000 • Float• Float
-
1015654-88L00-000 • Pin• Pin
-
1115683-87J00-000 • Drain Hose (L:120)• Drain Hose (L:120)
-
1215760-88L00-000 • Fuel Pressure Regulator• Fuel Pressure Regulator
-
1315644-88L00-000 • O-Ring• O-Ring
-
1415645-88L00-000 • Regulator Holder• Regulator Holder
-
1502112-0408A-000 • Screw• Screw
-
1602142-0408B-000 • Screw (4x8)• Screw (4x8)
-
1715643-88L10-000 • Joint• Joint
-
1815641-88L31-000 • Bushing• Bushing
-
1915641-88L51-000 • Bushing• Bushing
-
2015642-88L10-000 • Fuel Filter• Fuel Filter
-
2115612-88L00-000 • Vapor Separator Cover• Vapor Separator Cover
-
2215613-88L00-000 • O-Ring• O-Ring
-
2315613-92J00-000 • Gasket• Gasket
-
2415614-88L00-000 • Screw• Screw
-
2501550-06307-000 Bolt (6x30)Bolt (6x30)
-
2609169-06075-000 WasherWasher
-
2709160-06084-000 Washer (6.5x18x1.6)Washer (6.5x18x1.6)
-
2809320-09059-000 CushionCushion
-
2909352-50005-00B Hose (5x8.2x2000)
L:2000->770Hose (5x8.2x2000)
L:2000->770 -
3009401-08412-000 ClipClip
-
3118498-88L10-000 Evap Hose Protector (L:730)Evap Hose Protector (L:730)
-
3309408-00043-000 ClampClamp
-
3409408-00121-000 Clamp (NLA)Clamp (NLA)
-
3509408-00145-000 ClipClip
