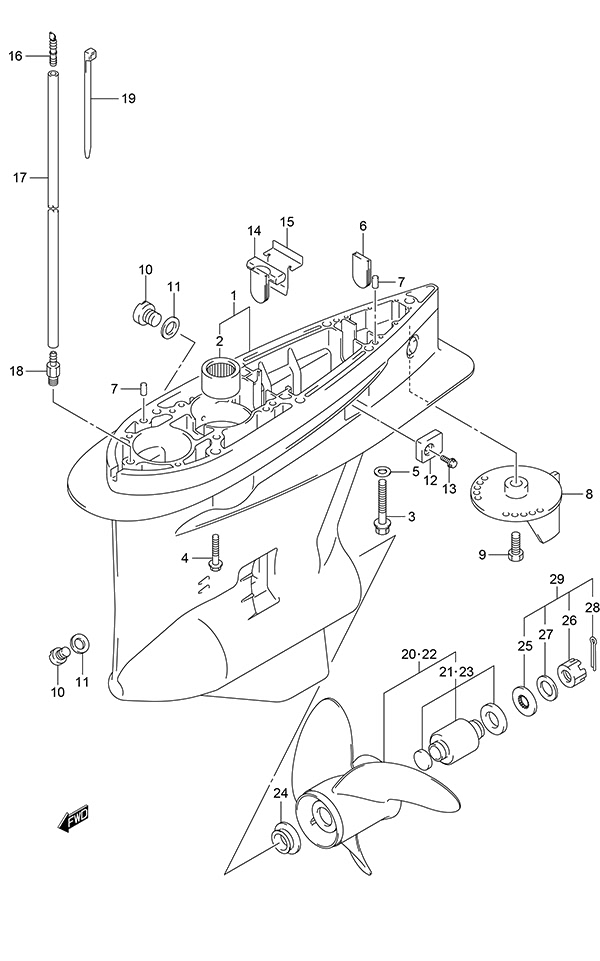

Fig. 149 - Gear Case для Suzuki DF 150 - 2014 года выпуска`
-
№АртикулНазвание
-
1-155110-93J20-0EP Gear Case HousingGear Case Housing
-
1-255110-93J20-Y5S Gear Case Housing
WhiteGear Case Housing
White -
209263-32017-000 • Pinion Bearing• Pinion Bearing
-
309100-12052-000 Bolt (12x70)Bolt (12x70)
-
409116-10150-000 Bolt (10x55)Bolt (10x55)
-
509160-12066-000 Washer (12.5x22x2.5)Washer (12.5x22x2.5)
-
617566-87D11-000 Gear Case GrommetGear Case Grommet
-
709202-08006-000 Knock Pin (8x12)Knock Pin (8x12)
-
8-155125-98J00-0EP Trim TabTrim Tab
-
8-255125-98J00-Y5S Trim Tab
WhiteTrim Tab
White -
909116-08137-000 Bolt (8x22)Bolt (8x22)
-
1055128-93J10-000 Drain PlugDrain Plug
-
1109168-10034-000 Drain Plug GasketDrain Plug Gasket
-
1255321-93J01-000 Protection AnodeProtection Anode
-
1309116-06236-000 Bolt (6x16)Bolt (6x16)
-
1455332-87D12-000 Exhaust Seal RubberExhaust Seal Rubber
-
1555333-87D10-000 Exhaust Seal PlateExhaust Seal Plate
-
1655127-87D00-000 Hose UnionHose Union
-
1709355-40805-00B Hose (4x8x2000)
L:2000->1700Hose (4x8x2000)
L:2000->1700 -
1809362-09008-000 NippleNipple
-
1909407-10404-000 Clamp (L:100)Clamp (L:100)
-
20-1990C0-00830-17P S/S Propeller 3x15-1/2x17S/S Propeller 3x15-1/2x17
-
20-2990C0-00840-19P S/S Watergrip Propeller 3x15-1/4x19S/S Watergrip Propeller 3x15-1/4x19
-
20-3990C0-00840-21P S/S Watergrip Propeller 3x15x21S/S Watergrip Propeller 3x15x21
-
20-4990C0-00840-23P S/S Watergrip Propeller 3x14-3/4x23S/S Watergrip Propeller 3x14-3/4x23
-
20-5990C0-00840-25P S/S Watergrip Propeller 3x14-3/4x25S/S Watergrip Propeller 3x14-3/4x25
-
20-6990C0-00840-27P S/S Watergrip Propeller 3x14-1/2x27S/S Watergrip Propeller 3x14-1/2x27
-
20-7990C0-00834-23P S/S Propeller 4x14-3/8x23 (NLA)S/S Propeller 4x14-3/8x23 (NLA)
-
20-8990C0-00834-25P S/S Propeller 4x14-3/8x25 (NLA)S/S Propeller 4x14-3/8x25 (NLA)
-
20-9990C0-00834-27P S/S Propeller 4x14-3/8x27 (NLA)S/S Propeller 4x14-3/8x27 (NLA)
-
20-10990C0-00834-28P S/S Propeller 4x14-3/8x28 (NLA)S/S Propeller 4x14-3/8x28 (NLA)
-
20-11990C0-00834-29P S/S Propeller 4x14-3/8x29 (NLA)S/S Propeller 4x14-3/8x29 (NLA)
-
2158105-93J10-000 • Propeller Bushing Set• Propeller Bushing Set
-
2457632-93L01-000 Propeller Bushing StopperPropeller Bushing Stopper
-
2557633-87D30-000 Propeller Nut SpacerPropeller Nut Spacer
-
2609141-18005-000 Nut (18mm)Nut (18mm)
-
2709160-18028-000 Washer (18.5x31x1.0)Washer (18.5x31x1.0)
-
2809204-03003-000 Prop Nut Cotter PinProp Nut Cotter Pin
-
2957630-92E00-000 Propeller Hardware Kit
OptionalPropeller Hardware Kit
Optional -
3025700-93J00-000 Gear Case Seal Kit
Opt: Not ShownGear Case Seal Kit
Opt: Not Shown
