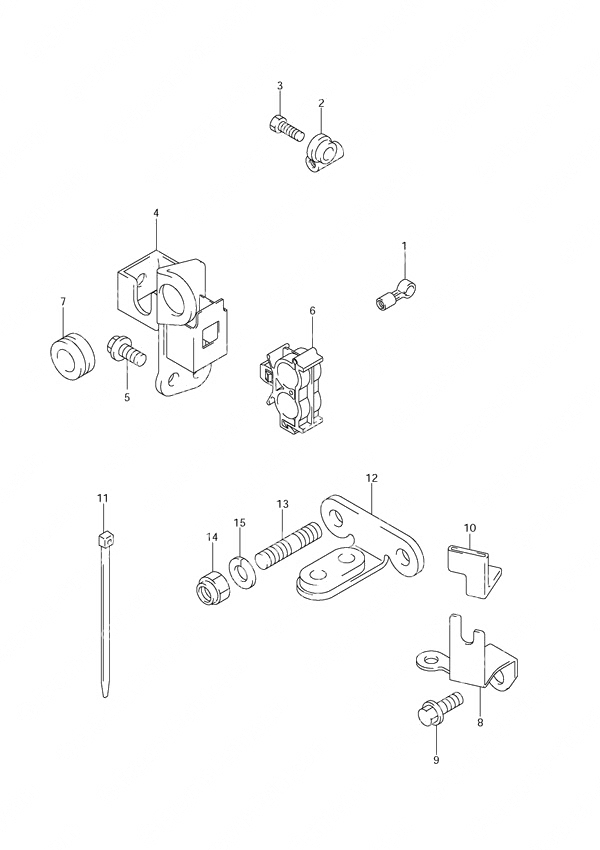

Fig. 74 - Remocon Cable Holder w/Remote Control для Suzuki DF 9.9 - 2012 года выпуска`
-
№АртикулНазвание
-
167466-95200-000 Cable Connector
ThrottleCable Connector
Throttle -
267467-93E01-000 Cable Connector
ClutchCable Connector
Clutch -
309111-06064-000 Bolt (6x17)Bolt (6x17)
-
467340-94JA0-000 Remocon Cable Holder
ClutchRemocon Cable Holder
Clutch -
509116-06094-000 Bolt (6x15)
ClutchBolt (6x15)
Clutch -
609403-14309-000 ClampClamp
-
709308-08013-000 GrommetGrommet
-
867351-94J00-000 Remocon Cable Holder
ThrottleRemocon Cable Holder
Throttle -
901550-06167-000 Bolt (6x16)
ThrottleBolt (6x16)
Throttle -
1067356-94J00-000 Cable Holder CushionCable Holder Cushion
-
1109407-14407-000 Clamp (L:145)Clamp (L:145)
-
1243755-94JA0-000 Steering Bracket AttachmentSteering Bracket Attachment
-
1309108-08130-000 Stud Bolt (8x20)Stud Bolt (8x20)
-
1409159-08059-000 NutNut
-
1529162-93J10-000 Lock WasherLock Washer
