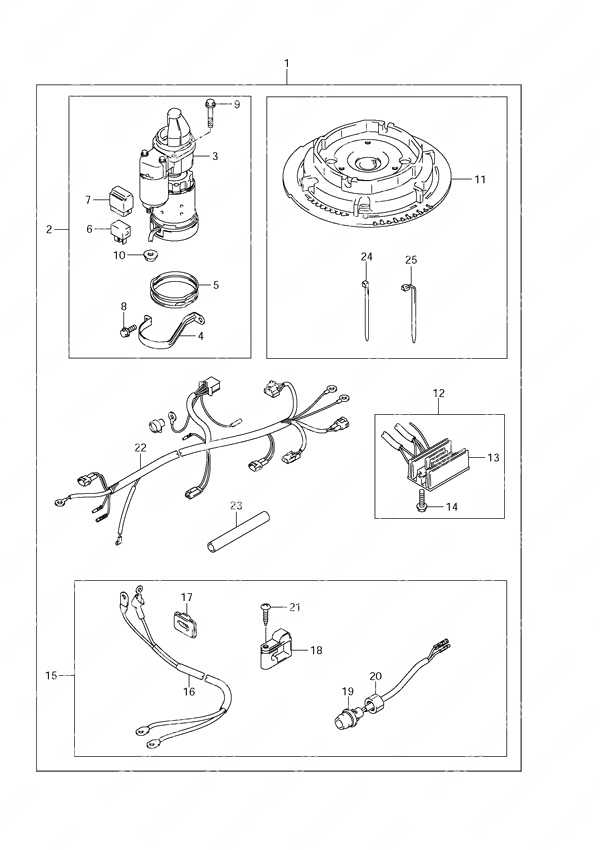

Fig. 79 - Opt: Starting Motor w/Manual Starter для Suzuki DF 15 - 2012 года выпуска`
-
№АртикулНазвание
-
131000-94J02-000 Electric Starter SetElectric Starter Set
-
231101-94J01-000 • Starter Motor Set (NLA)• Starter Motor Set (NLA)
-
331100-94J22-000 •• Starter Motor Assembly•• Starter Motor Assembly
-
431912-94J00-000 •• Starting Motor Band (NLA)•• Starting Motor Band (NLA)
-
531918-94J00-000 •• Lower Damper•• Lower Damper
-
638860-76F01-000 •• Relay•• Relay
-
738915-90J00-000 •• Relay Holder•• Relay Holder
-
801550-08207-000 •• Bolt (8x20)
Lower•• Bolt (8x20)
Lower -
901550-08257-000 •• Bolt
Upper•• Bolt
Upper -
1008316-10087-000 •• Nut•• Nut
-
1132102-94J10-000 • Flywheel• Flywheel
-
1232801-94J01-000 • Rectifier/Regulator Set• Rectifier/Regulator Set
-
1332800-94J11-000 •• Rectifier/Regulator Assembly•• Rectifier/Regulator Assembly
-
1401550-06257-000 •• Bolt•• Bolt
-
1533800-94J00-000 • Starting Cable Set (NLA)• Starting Cable Set (NLA)
-
1633810-94J01-000 •• Starter Motor Cable•• Starter Motor Cable
-
1733811-94J10-000 •• Starter Cable Grommet (NLA)•• Starter Cable Grommet (NLA)
-
1833816-94J01-000 •• Cable Clamp•• Cable Clamp
-
1937161-94J00-000 •• Start Switch Assembly•• Start Switch Assembly
-
2009159-14014-000 •• Nut (10mm)•• Nut (10mm)
-
2103241-0625A-000 •• Screw•• Screw
-
2236610-94J10-000 • Wire Harness Assembly• Wire Harness Assembly
-
2333833-94JL0-000 • Switch Lead Tube• Switch Lead Tube
-
2409407-10404-000 • Clamp (L:100)• Clamp (L:100)
-
2509407-11401-000 • Clamp (L:95)• Clamp (L:95)
