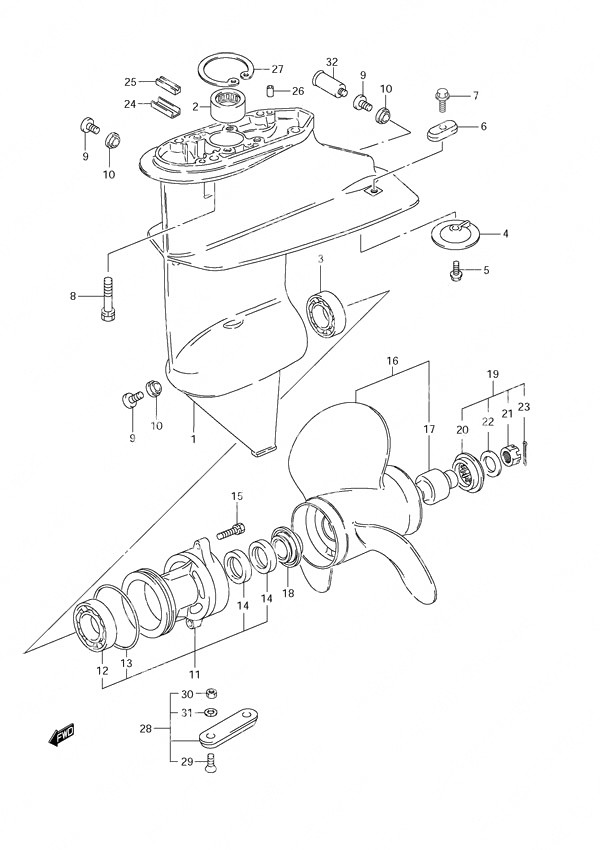

Fig. 61 - Gear Case для Suzuki DF 15 - 2012 года выпуска`
-
№АртикулНазвание
-
155100-94J20-0EP Gear Case Housing (NLA)Gear Case Housing (NLA)
-
209263-15019-000 • Bearing (15x21x12)• Bearing (15x21x12)
-
309262-25003-000 • Bearing (25x52x15)• Bearing (25x52x15)
-
455321-939L0-000 • Zinc Anode• Zinc Anode
-
509116-06094-000 • Bolt (6x15)• Bolt (6x15)
-
655321-90L00-000 • Zinc Anode• Zinc Anode
-
709116-06094-000 • Bolt (6x15)• Bolt (6x15)
-
809117-08047-000 Bolt (8x30)Bolt (8x30)
-
909248-10008-000 Drain PlugDrain Plug
-
1009168-10022-000 Drain Plug GasketDrain Plug Gasket
-
1156120-90L00-0EP Propeller Shaft Bearing HousingPropeller Shaft Bearing Housing
-
1208110-60050-000 • Bearing (25x47x12)• Bearing (25x47x12)
-
1309280-57002-000 • O-Ring• O-Ring
-
1409289-17L02-000 • Oil Seal (17x30x6)• Oil Seal (17x30x6)
-
1529116-93J00-000 Bolt (6x20)Bolt (6x20)
-
16-158100-89L00-019 M701 Propeller 3x9-1/4x7M701 Propeller 3x9-1/4x7
-
16-258100-89L20-019 M930 Propeller 3x9-1/4x9M930 Propeller 3x9-1/4x9
-
16-358100-90L21-019 M1011 Propeller 3x9-1/14x10M1011 Propeller 3x9-1/14x10
-
16-458100-89L70-019 M1101 Propeller 3x9-1/4x11M1101 Propeller 3x9-1/4x11
-
16-558100-90L41-019 M821 Propeller 3x9-1/4x8M821 Propeller 3x9-1/4x8
-
1758120-93701-000 • Replaced by 58120-89L00• Replaced by 58120-89L00
-
1857632-94J00-000 Propeller StopperPropeller Stopper
-
1957630-93900-000 Propeller Hardware Kit
OptionalPropeller Hardware Kit
Optional -
2057633-93901-000 Propeller Nut SpacerPropeller Nut Spacer
-
2109141-12005-000 NutNut
-
2209160-12066-000 Washer (12.5x22x2.5)Washer (12.5x22x2.5)
-
2309204-02004-000 Cotter PinCotter Pin
-
2455331-93901-000 Exhaust Core SealExhaust Core Seal
-
2555332-92D01-000 Exhaust Seal RubberExhaust Seal Rubber
-
2609202-06023-000 Knock Pin (6x10)Knock Pin (6x10)
-
2708331-41329-000 CirclipCirclip
-
2855300-95500-000 Zinc Anode
OptionalZinc Anode
Optional -
2909126-06006-000 • Screw (6x20)
Optional• Screw (6x20)
Optional -
3029141-93J00-000 • Nut (6mm)
Optional• Nut (6mm)
Optional -
3129162-93J00-000 • Lock Washer
Optional• Lock Washer
Optional -
3255181-95200-000 Flush Hose Attachment
OptionalFlush Hose Attachment
Optional
