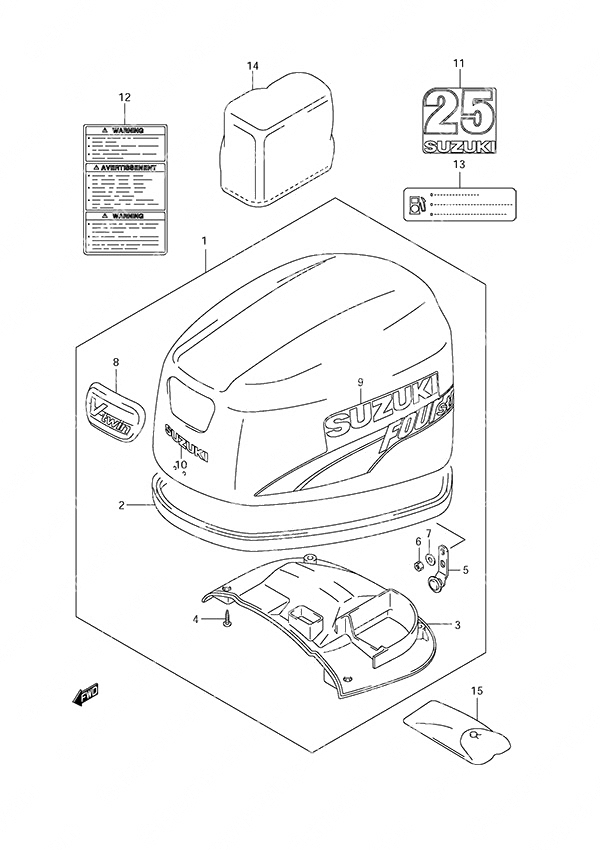

Fig. 29 - Engine Cover для Suzuki DF 25 V-Twin - 2006 года выпуска
-
№АртикулНазвание
-
1-161400-95Y12-0EP Engine Cover Set (NLA)
Manual StarterEngine Cover Set (NLA)
Manual Starter -
1-261400-95Y23-0EP Engine Cover Set
Electric StarterEngine Cover Set
Electric Starter -
261112-95J00-000 • Engine Cover Seal• Engine Cover Seal
-
361433-95J00-000 • Air Intake Inner Cover (NLA)• Air Intake Inner Cover (NLA)
-
403542-05209-000 • Screw• Screw
-
561610-95J00-000 • Rear Fastener• Rear Fastener
-
609140-06020-000 • Nut (6mm)• Nut (6mm)
-
709160-06094-000 • Washer (6.5x15x1.0)• Washer (6.5x15x1.0)
-
861465-95J00-000 • Engine Cover Emblem (NLA)
Electric Starter• Engine Cover Emblem (NLA)
Electric Starter -
9-161443-95J01-000 • Stbd Engine Cover Stripe• Stbd Engine Cover Stripe
-
9-261453-95J01-000 • Port Engine Cover Stripe• Port Engine Cover Stripe
-
1068271-95J00-000 • Emblem Front Mark (NLA)• Emblem Front Mark (NLA)
-
1161435-89J61-000 Rear Emblem Mark (DF25)Rear Emblem Mark (DF25)
-
1261458-99E31-000 Engine Cover LabelEngine Cover Label
-
1369716-99E14-000 Fuel Limitation LabelFuel Limitation Label
-
1468110-94400-000 Weather Cover (NLA)
OptionalWeather Cover (NLA)
Optional -
1509800-81822-000 Tool SetTool Set
