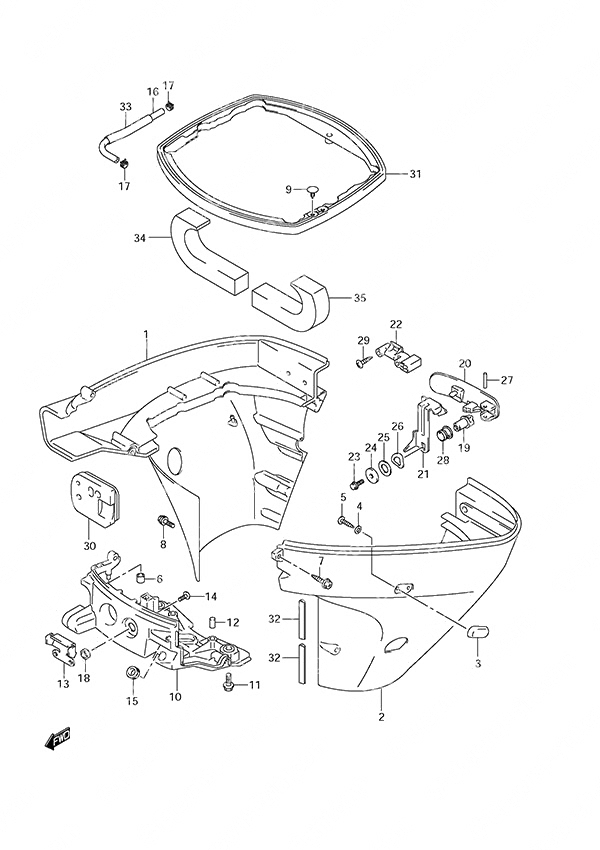

Fig. 28 - Side Cover для Suzuki DF 25 V-Twin - 2006 года выпуска
-
№АртикулНазвание
-
161810-95J01-0EP Stbd Side Cover (NLA)Stbd Side Cover (NLA)
-
2-161821-95J01-0EP Port Side CoverPort Side Cover
-
2-261821-95J11-0EP Port Side Cover (NLA)
Remote ControlPort Side Cover (NLA)
Remote Control -
361851-95J01-000 Side Cover Protector (NLA)
Non-Remote ControlSide Cover Protector (NLA)
Non-Remote Control -
409160-05024-000 Washer (5.5x16x1.5)
Non-Remote ControlWasher (5.5x16x1.5)
Non-Remote Control -
503542-05129-000 Screw
Non-Remote ControlScrew
Non-Remote Control -
609320-05016-000 Cushion (NLA)Cushion (NLA)
-
709136-06148-000 Screw (6x35)Screw (6x35)
-
809136-06149-000 Screw (6x55)Screw (6x55)
-
909409-05302-000 PinPin
-
1061831-95J00-0EP Front Panel (NLA)Front Panel (NLA)
-
1109116-08137-000 Bolt (8x22)Bolt (8x22)
-
1209202-08006-000 Knock Pin (8x12)Knock Pin (8x12)
-
1361412-95J00-000 Instrument Panel Hook (NLA)Instrument Panel Hook (NLA)
-
1402142-05127-000 ScrewScrew
-
1509308-12012-000 Grommet (NLA)Grommet (NLA)
-
1661157-89J00-000 Water Indicator HoseWater Indicator Hose
-
1709401-08413-000 ClipClip
-
1809320-13024-000 Cushion (NLA)Cushion (NLA)
-
1961632-93J00-000 Engine Cover Hook ShaftEngine Cover Hook Shaft
-
2061633-95J01-000 Rear Hook LeverRear Hook Lever
-
2161641-95J00-000 Engine Cover HookEngine Cover Hook
-
2261673-95J00-000 Hook Lever LatchHook Lever Latch
-
2309103-06092-000 Bolt (6x15)Bolt (6x15)
-
2409160-06160-000 Washer (6.5x24x4)Washer (6.5x24x4)
-
2509160-13008-000 Washer (13.5x31.5x0.5)Washer (13.5x31.5x0.5)
-
2609164-14008-000 Wave WasherWave Washer
-
2709202-04022-000 Hook Lever PinHook Lever Pin
-
2809306-13007-000 BushingBushing
-
2903542-06209-000 ScrewScrew
-
30-161124-95J00-000 Cable Grommet (NLA)
Manual StarterCable Grommet (NLA)
Manual Starter -
30-261124-95J10-000 Cable Grommet (NLA)
Electric StarterCable Grommet (NLA)
Electric Starter -
30-361124-95J20-000 Cable Grommet (NLA)
Remote ControlCable Grommet (NLA)
Remote Control -
3161134-95J00-000 Side Cover SealSide Cover Seal
-
3261135-95J00-000 Side Cover CushionSide Cover Cushion
-
3318498-90J01-000 Hose Protector
L:290->140Hose Protector
L:290->140 -
3454144-95J00-000 Upper Mount Stbd Seal (NLA)Upper Mount Stbd Seal (NLA)
-
3554145-95J00-000 Upper Mount Port Seal (NLA)Upper Mount Port Seal (NLA)
