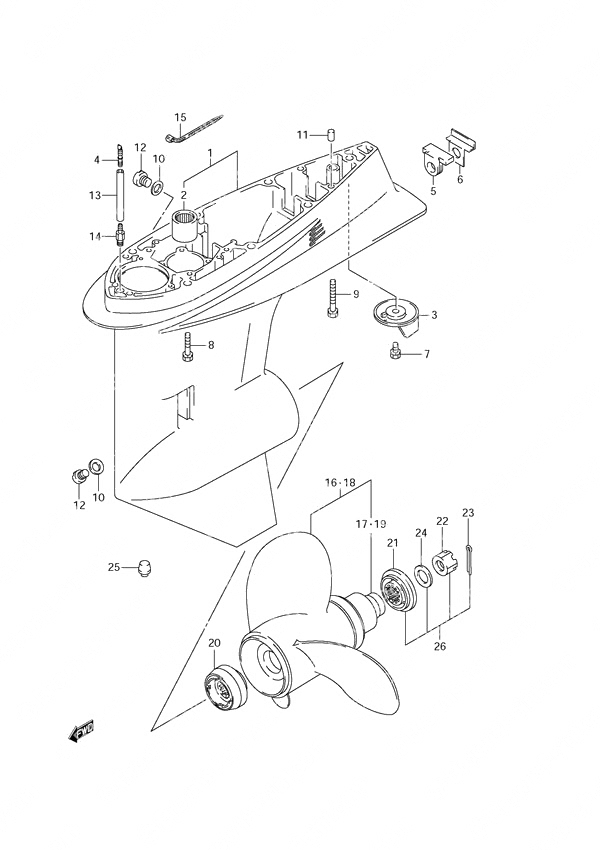

Fig. 43 - Gear Case для Suzuki DF 60 - 2000 года выпуска`
-
№АртикулНазвание
-
155110-99E02-0EP Gear Case HousingGear Case Housing
-
209263-26023-000 • Bearing (26x34x30)• Bearing (26x34x30)
-
355125-87E01-000 Zinc Anode Trim TabZinc Anode Trim Tab
-
455127-87D00-000 Hose UnionHose Union
-
555332-87D01-000 Exhaust Seal RubberExhaust Seal Rubber
-
655333-87D02-000 Exhuast Seal Plate (NLA)Exhuast Seal Plate (NLA)
-
709116-08137-000 Bolt (8x22)Bolt (8x22)
-
809116-10150-000 Bolt (10x55)Bolt (10x55)
-
909117-10039-000 Bolt (10x80)Bolt (10x80)
-
1009168-10022-000 Drain Plug GasketDrain Plug Gasket
-
1109202-08006-000 Knock Pin (8x12)Knock Pin (8x12)
-
1209248-10008-000 Drain PlugDrain Plug
-
1309355-40805-600 Hose (4x8x600)
L:600->70Hose (4x8x600)
L:600->70 -
1409362-09008-000 NippleNipple
-
1509407-14407-000 Clamp (L:145)Clamp (L:145)
-
18-158100-94500-019 V1500 Propeller 3x13-1/2x15
15' PitchV1500 Propeller 3x13-1/2x15
15' Pitch -
18-258100-94512-019 V1700 Propeller 3x13-3/4x17
17' PitchV1700 Propeller 3x13-3/4x17
17' Pitch -
18-358100-94522-019 V1900 Propeller 3x13x19
19' PitchV1900 Propeller 3x13x19
19' Pitch -
18-458100-94532-019 V2100 Propeller 3x13x21
21' PitchV2100 Propeller 3x13x21
21' Pitch -
1958120-94520-000 • Propeller Bushing (NLA)• Propeller Bushing (NLA)
-
2057632-87E00-000 Propeller Stopper Bushing (NLA)Propeller Stopper Bushing (NLA)
-
2157633-94500-000 Propeller Nut SpacerPropeller Nut Spacer
-
2209141-18005-000 Nut (18mm)Nut (18mm)
-
2309204-03003-000 Prop Nut Cotter PinProp Nut Cotter Pin
-
2409160-18028-000 Washer (18.5x31x1.0)Washer (18.5x31x1.0)
-
2555116-87E00-000 Gear Case Plug
OptionalGear Case Plug
Optional -
2657630-94500-000 Propeller Hardware Kit
OptionalPropeller Hardware Kit
Optional -
2725700-87E00-000 Gear Case Seal Kit
Opt: Not ShownGear Case Seal Kit
Opt: Not Shown
