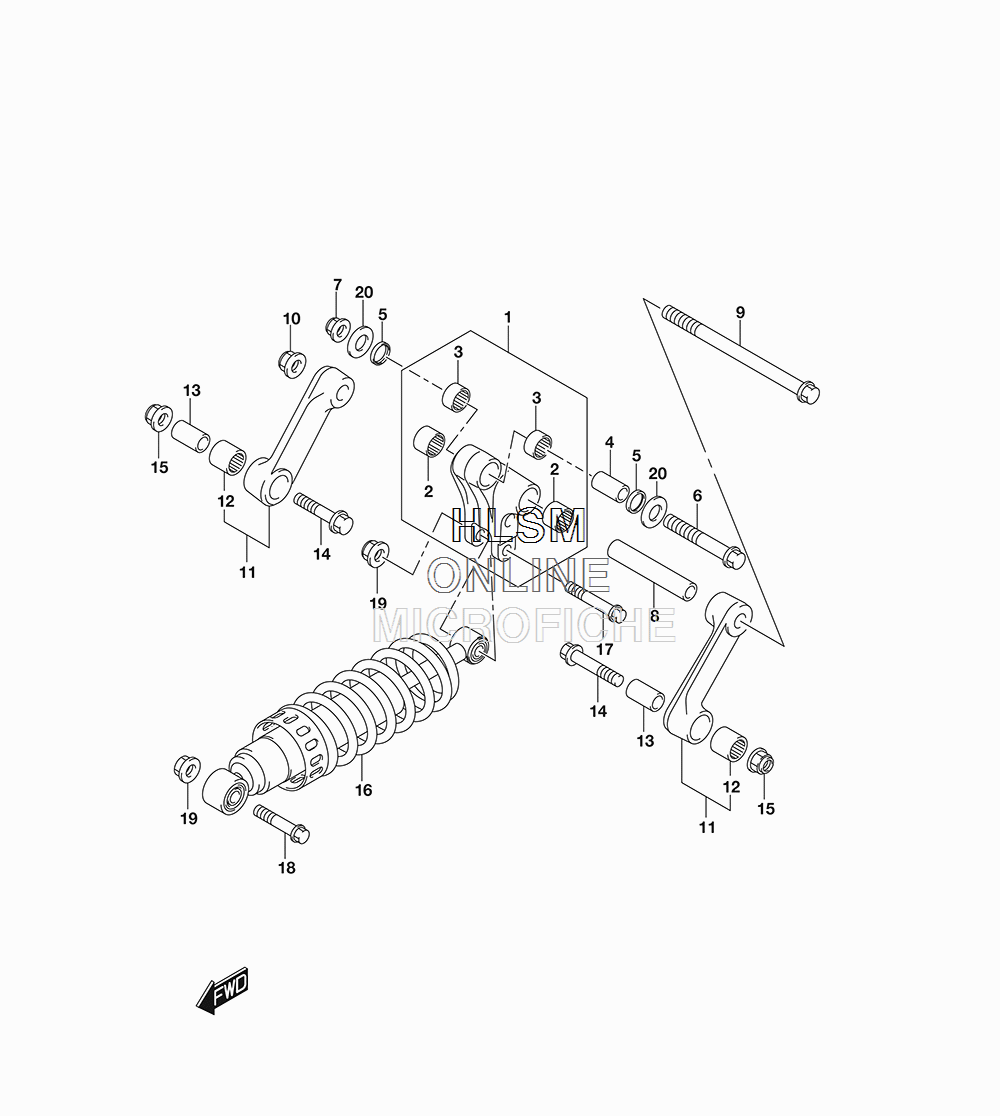

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki VZR1800 M109R - 2018 года выпуска
-
№АртикулНазвание
-
162600-48870 LEVER SET, REAR CUSHIONLEVER SET, REAR CUSHION
-
209263-20074 ...BEARING (20X27X32)...BEARING (20X27X32)
-
309263-20090 ...BEARING (20X26X14)...BEARING (20X26X14)
-
462684-48G00 SPACER, UPPERSPACER, UPPER
-
509284-20003 OIL SEAL (20X26X4)OIL SEAL (20X26X4)
-
662658-33D00 BOLT, FRONTBOLT, FRONT
-
708319-3114A NUTNUT
-
809180-14018 SPACER (14X20X102)SPACER (14X20X102)
-
962621-48G00 BOLT, LOWERBOLT, LOWER
-
1008319-3114A NUTNUT
-
1162600-48880 ROD SET, REAR CUSHIONROD SET, REAR CUSHION
-
1209263-20074 ...BEARING (20X27X32)...BEARING (20X27X32)
-
1309180-14014 SPACER (14X20X34)SPACER (14X20X34)
-
1409103-14016 BOLT (14X66)BOLT (14X66)
-
1508319-3114A NUTNUT
-
1662100-48GB0 ABSORBER ASSY, REAR SHOCKABSORBER ASSY, REAR SHOCK
-
1762658-01C60 BOLT, REAR CUSHION LEVER FRONTBOLT, REAR CUSHION LEVER FRONT
-
1809103-12042 BOLT (12X57)BOLT (12X57)
-
1909159-12056 NUTNUT
-
2008211-14341 WASHERWASHER
