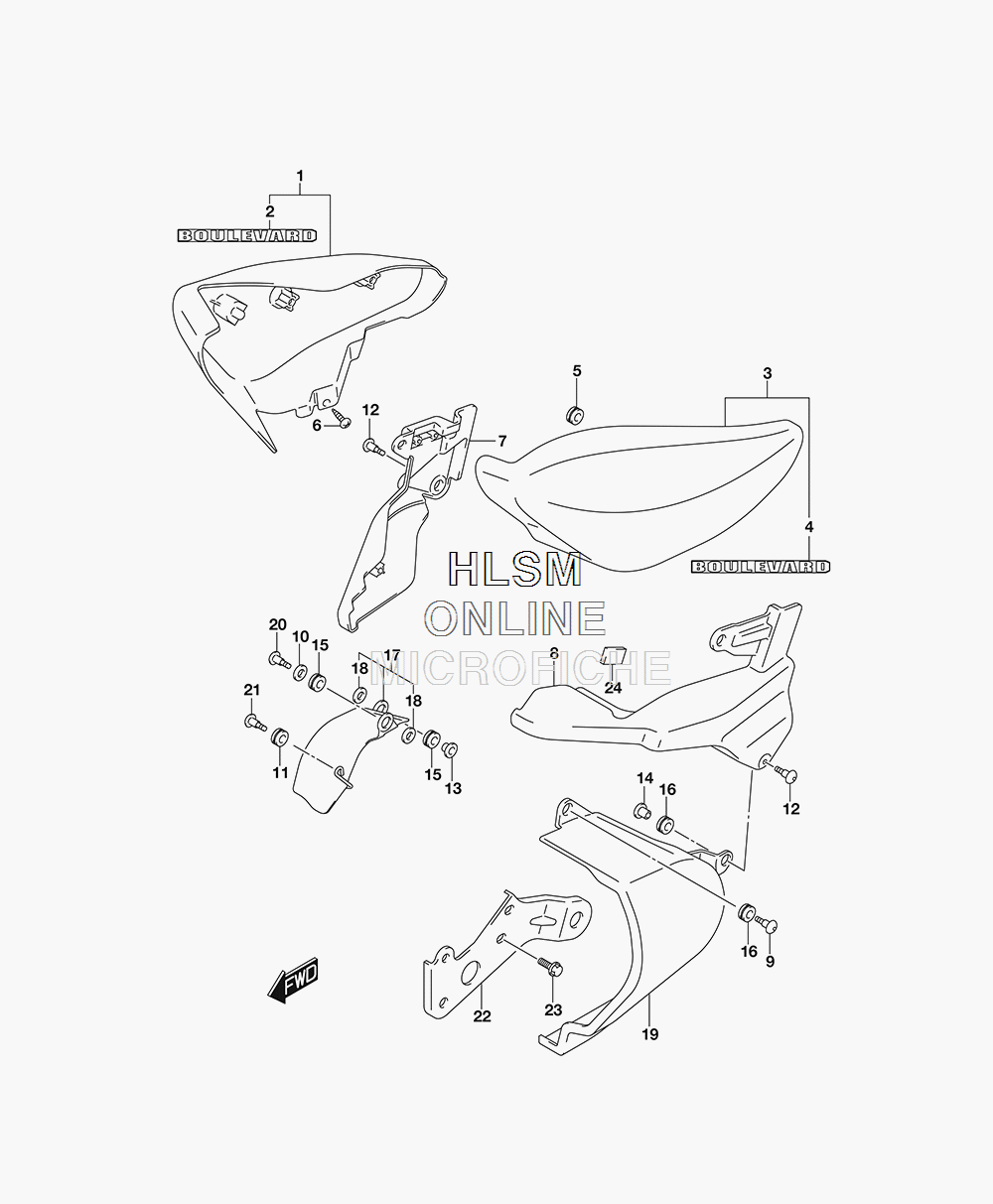

SIDE COVER (CANADA) для Suzuki VZR1800 M109R - 2018 года выпуска
-
№АртикулНазвание
-
147110-48GE0-YVB COVER, FRAME (RH) (YVB - BLACK)COVER, FRAME (RH) (YVB - BLACK)
-
268131-48G20-YLF ...EMBLEM "BOULEVARD" (YLF - GRAY)...EMBLEM "BOULEVARD" (YLF - GRAY)
-
347210-48GE0-YVB COVER, FRAME (LH) (YVB - BLACK)COVER, FRAME (LH) (YVB - BLACK)
-
468131-48G20-YLF ...EMBLEM "BOULEVARD" (YLF - GRAY)...EMBLEM "BOULEVARD" (YLF - GRAY)
-
509320-08018 CUSHIONCUSHION
-
603541-0516A SCREWSCREW
-
747121-48G00 COVER, SIDE LOWER (RH)COVER, SIDE LOWER (RH)
-
847221-48G00 COVER, SIDE LOWER (LH)COVER, SIDE LOWER (LH)
-
909139-06126 SCREW (6X20) (LH)SCREW (6X20) (LH)
-
1009160-10123 WASHER (10.5X20X2.3) (RH)WASHER (10.5X20X2.3) (RH)
-
1109320-09501 CUSHION (RH)CUSHION (RH)
-
1209139-06029 SCREW (6X25)SCREW (6X25)
-
1309180-06319 SPACER (6.5X10X11.6) (RH)SPACER (6.5X10X11.6) (RH)
-
1409169-06075 WASHER (LH)WASHER (LH)
-
1509320-08021 CUSHION (RH)CUSHION (RH)
-
1609320-08070 CUSHION (LH)CUSHION (LH)
-
1747130-48G00 COVER, LOWER (RH)COVER, LOWER (RH)
-
1847523-41F00 ...WASHER, FRAME COVER...WASHER, FRAME COVER
-
1947231-48GB0 COVER, LOWER (LH)COVER, LOWER (LH)
-
2009139-06126 SCREW (6X20) (RH)SCREW (6X20) (RH)
-
2109139-06126 SCREW (6X20) (RH)SCREW (6X20) (RH)
-
2247250-48G00 BRACKET, LOWER COVER (LH)BRACKET, LOWER COVER (LH)
-
2301550-0612A BOLTBOLT
-
2447161-19C00 CUSHION, SIDE COVER (LH)CUSHION, SIDE COVER (LH)
