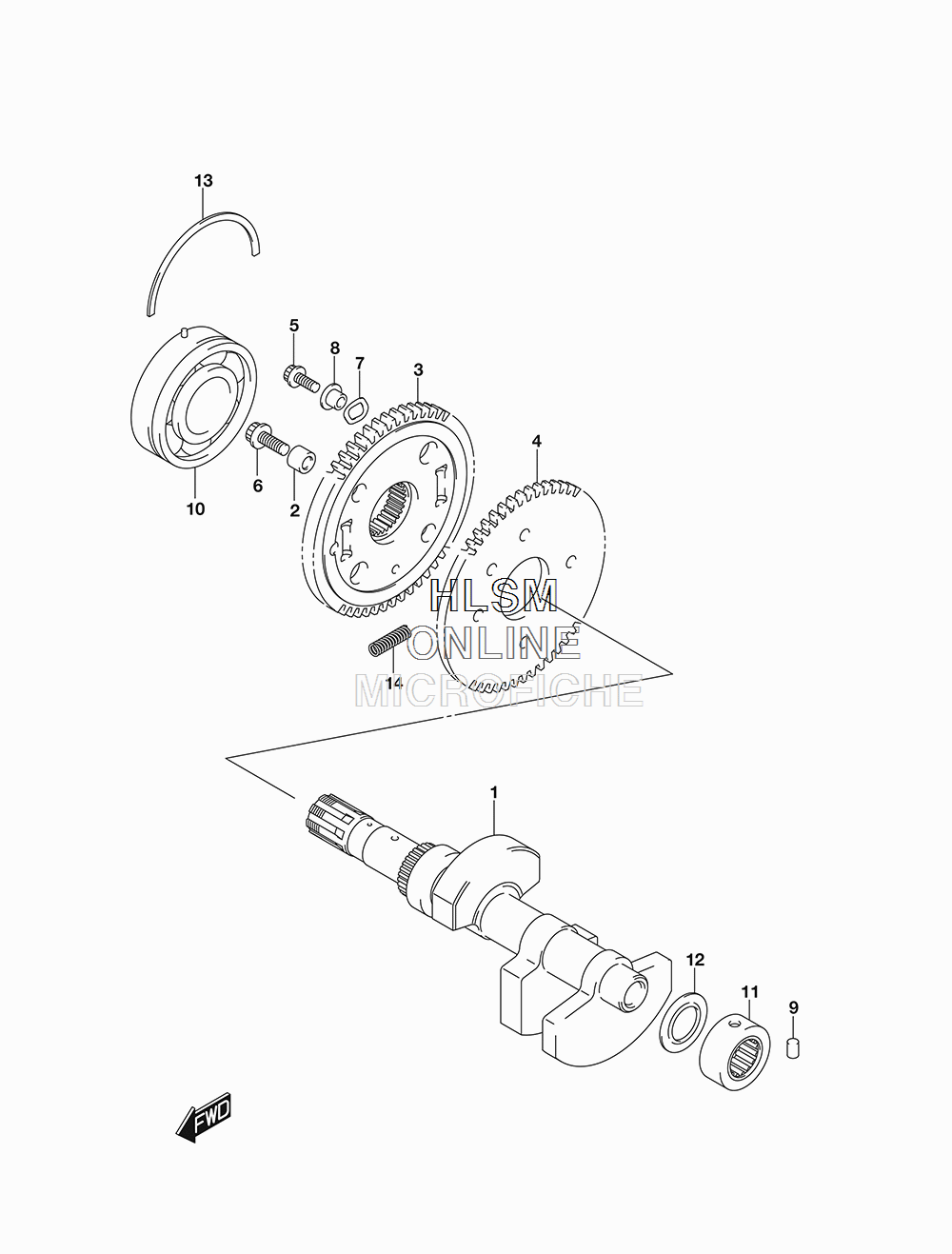

CRANK BALANCER для Suzuki VZR1800 M109R - 2018 года выпуска
-
№АртикулНазвание
-
112650-48G00 SHAFT, CRANK BALANCERSHAFT, CRANK BALANCER
-
212663-48G00 SPACERSPACER
-
312666-48G10 GEAR, DRIVEN NO.1 (NT:55)GEAR, DRIVEN NO.1 (NT:55)
-
412667-48G10 GEAR, DRIVEN NO.2 (NT:55)GEAR, DRIVEN NO.2 (NT:55)
-
509106-06099 BOLT (6X16)BOLT (6X16)
-
609106-08191 BOLT (8X16)BOLT (8X16)
-
709164-11005 WASHERWASHER
-
809180-06329 SPACER (6.3X10X9.6)SPACER (6.3X10X9.6)
-
909261-06003 PIN (6X10)PIN (6X10)
-
1009262-25160 BEARING (25X62X17)BEARING (25X62X17)
-
1109263-20087 BEARING (20X34X13.5)BEARING (20X34X13.5)
-
1209285-20006 OIL SEAL (20X31.2X2.7)OIL SEAL (20X31.2X2.7)
-
1309390-62012 C RINGC RING
-
1409440-07001 SPRINGSPRING
