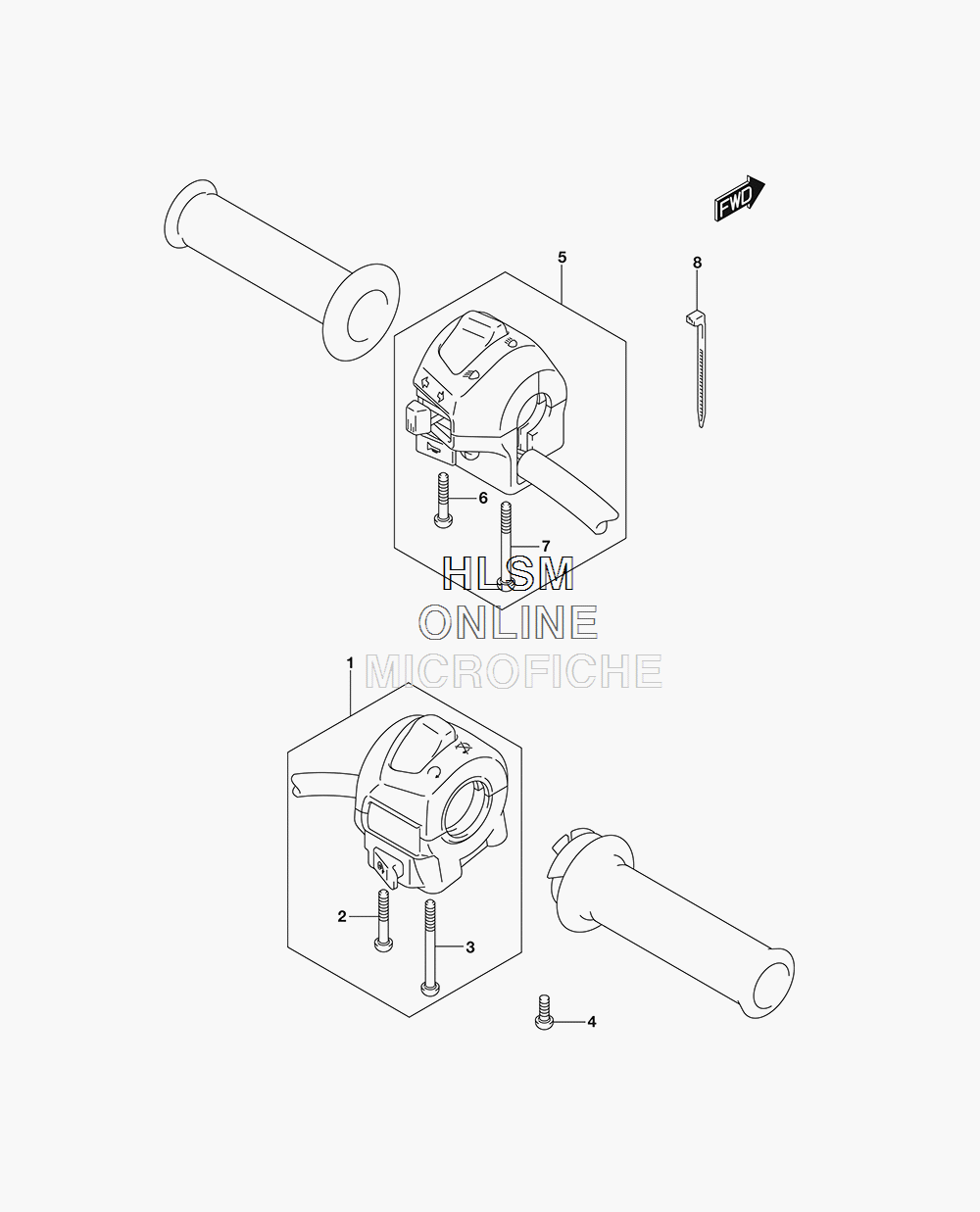

HANDLEBAR - LEVERS / SWITCHES для Suzuki TU250X - 2018 года выпуска
-
№АртикулНазвание
-
137200-25DA1 SWITCH ASSY, HANDLE (RH)SWITCH ASSY, HANDLE (RH)
-
202112-0530B ...SCREW...SCREW
-
302112-0550B ...SCREW...SCREW
-
402112-0510A SCREWSCREW
-
537400-25D50 SWITCH ASSY, HANDLE (LH)SWITCH ASSY, HANDLE (LH)
-
602112-0525B ...SCREW...SCREW
-
702112-0545B ...SCREW...SCREW
-
809407-14407 CLAMP (L:145) (LH)CLAMP (L:145) (LH)
