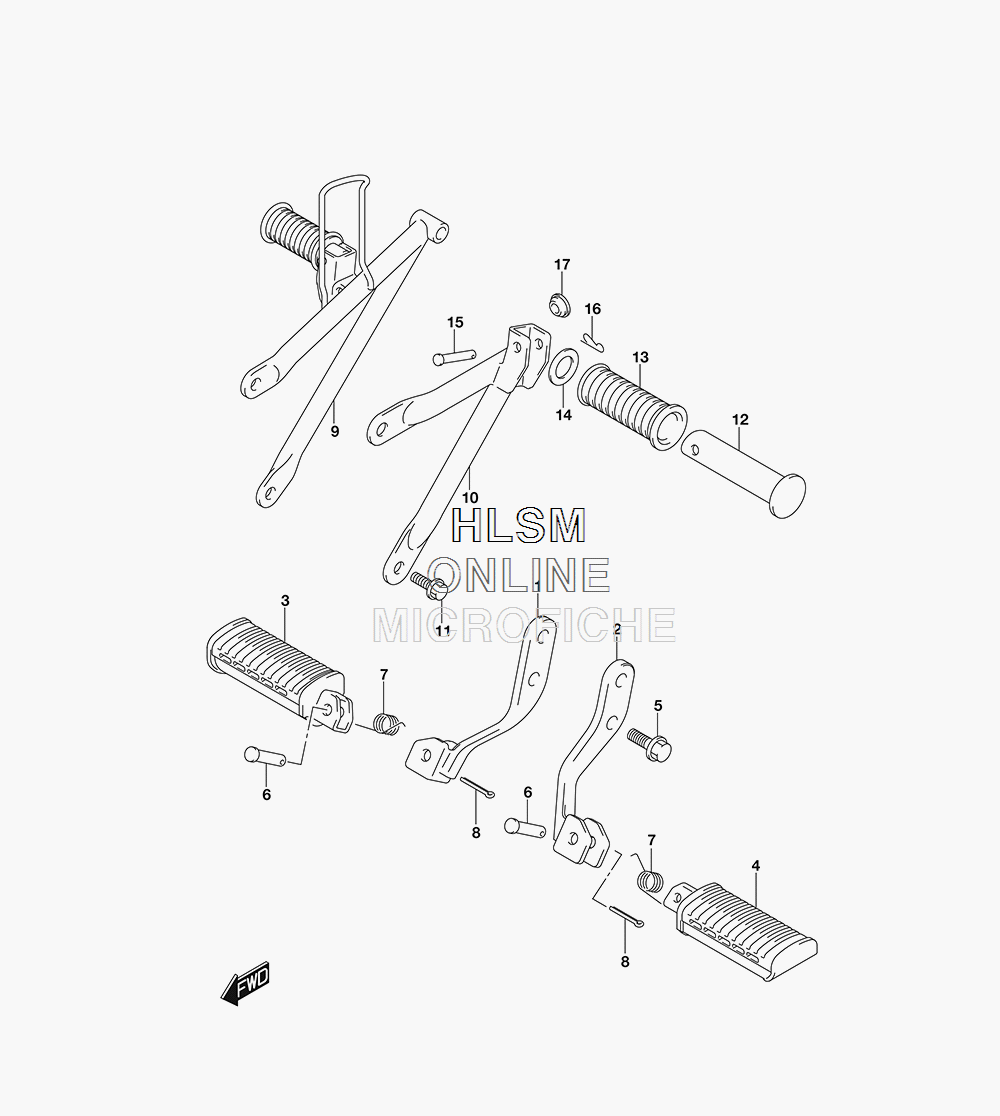

FOOTREST для Suzuki TU250X - 2018 года выпуска
-
№АртикулНазвание
-
143510-26G00 BAR, FRONT FOOTREST (RH)BAR, FRONT FOOTREST (RH)
-
243520-26G00 BAR, FRONT FOOTREST (LH)BAR, FRONT FOOTREST (LH)
-
343550-37301 RUBBER, (RH)RUBBER, (RH)
-
443560-37301 RUBBER, (LH)RUBBER, (LH)
-
501550-1025B BOLTBOLT
-
609200-08002 PINPIN
-
709448-14012 SPRINGSPRING
-
804111-2020A COTTER PINCOTTER PIN
-
943810-26G01-019 TUBE, PILLION (RH) (019 - BLACK)TUBE, PILLION (RH) (019 - BLACK)
-
1043820-26G01-019 TUBE, PILLION (LH) (019 - BLACK)TUBE, PILLION (LH) (019 - BLACK)
-
1101550-1020B BOLTBOLT
-
1243610-03001 BAR, PILLIONBAR, PILLION
-
1343612-33201 RUBBER, PILLIONRUBBER, PILLION
-
1409160-19024 WASHER (19.5X32X2)WASHER (19.5X32X2)
-
1509200-06033 PINPIN
-
1609385-06012 CLIPCLIP
-
1709250-15010 PLUG (OD:19) (LH)PLUG (OD:19) (LH)
