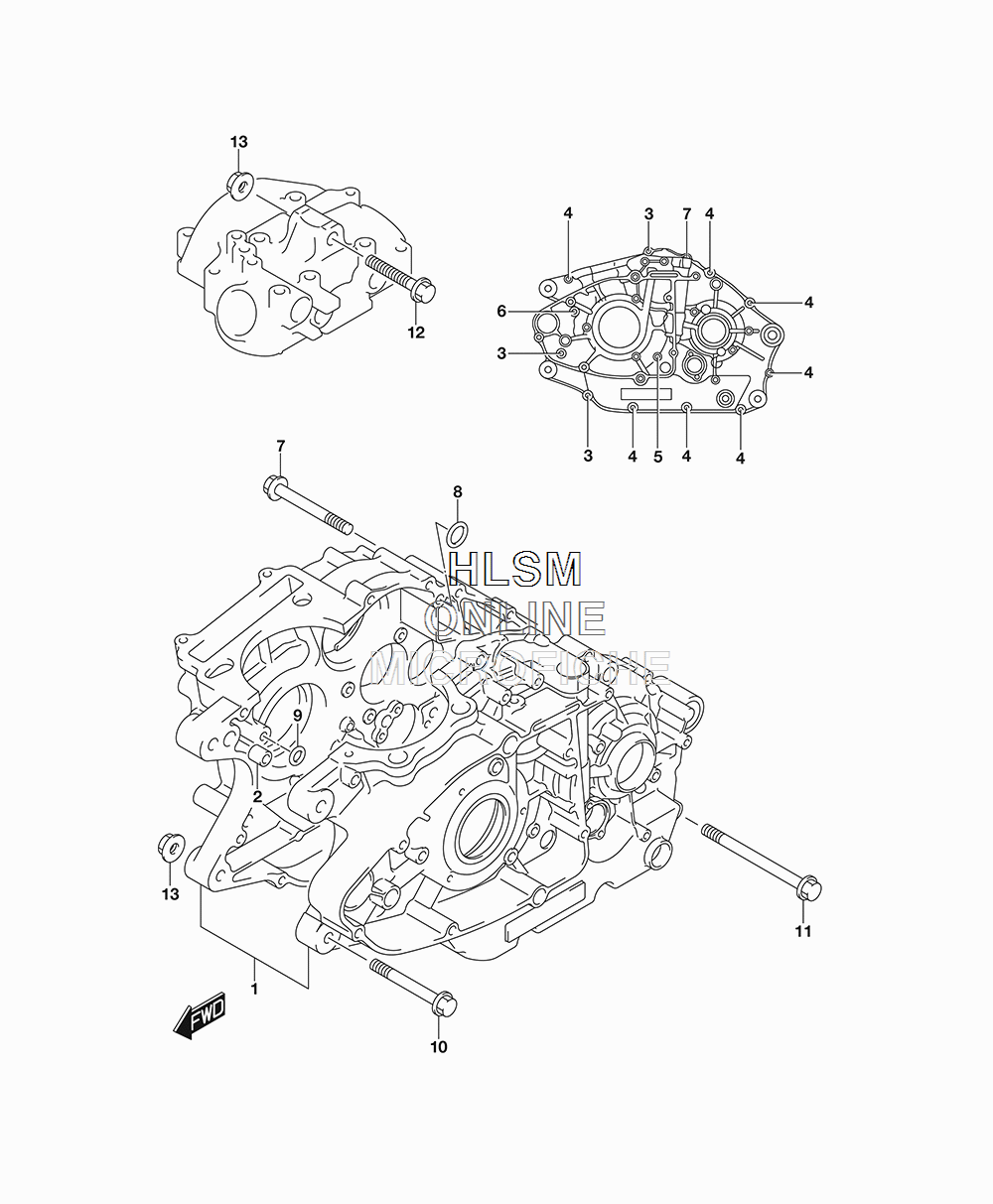

CRANKCASE для Suzuki TU250X - 2018 года выпуска`
-
№АртикулНазвание
-
111300-26G01 CRANKCASE ASSYCRANKCASE ASSY
-
204211-13189 ...PIN...PIN
-
301547-0635A ...BOLT...BOLT
-
401547-0645A ...BOLT...BOLT
-
501547-0655A ...BOLT...BOLT
-
601547-0660A ...BOLT...BOLT
-
701547-0670A ...BOLT...BOLT
-
809280-10016 O RING (D:1.9,ID:9.8)O RING (D:1.9,ID:9.8)
-
909280-07004 O RING (D:1.9,ID:6.8)O RING (D:1.9,ID:6.8)
-
1009103-08037 BOLT (8X67)BOLT (8X67)
-
1109103-08179 BOLT (8X105)BOLT (8X105)
-
1209103-08081 BOLT (8X50)BOLT (8X50)
-
1308319-3108A NUTNUT
