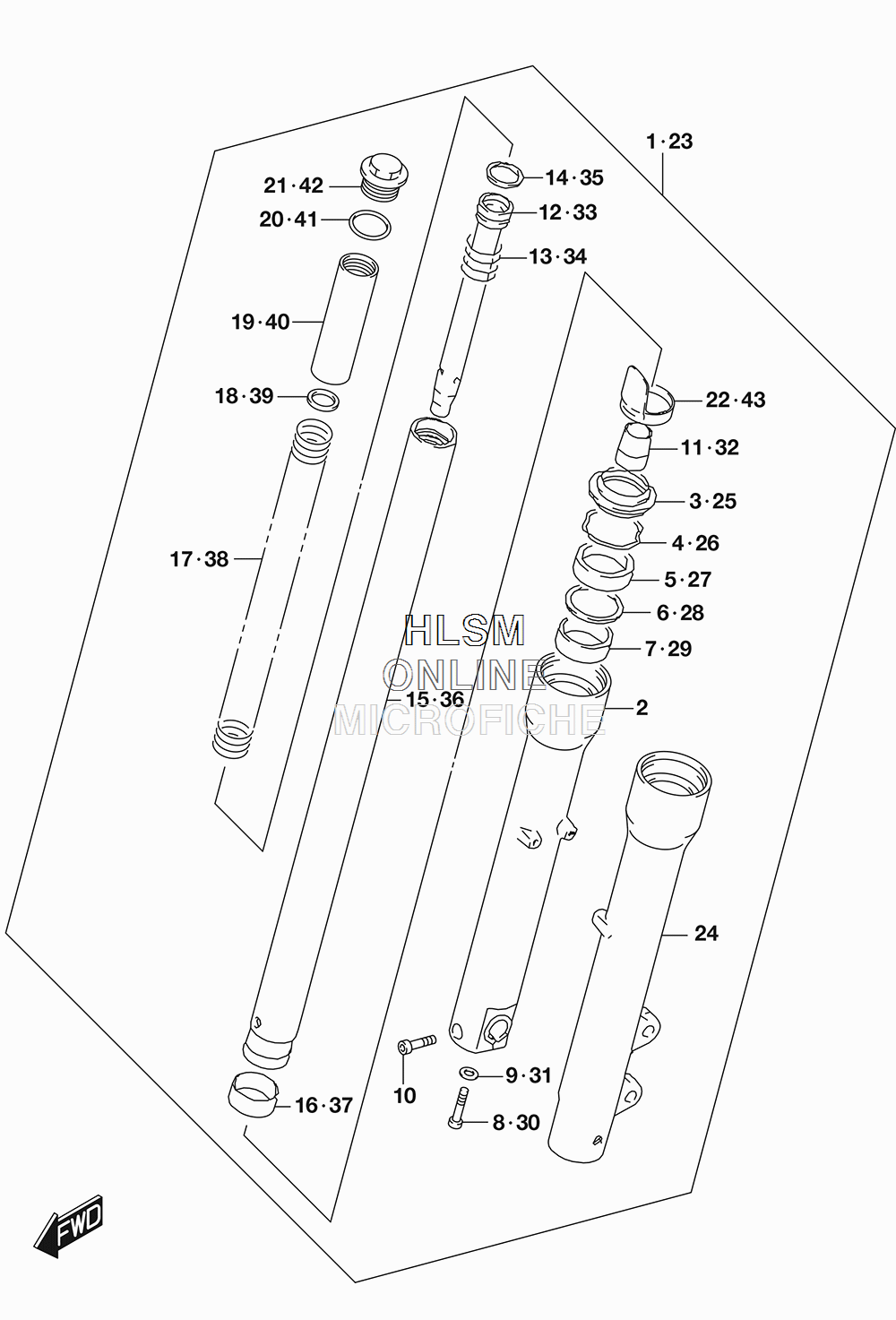

FRONT FORK DAMPER для Suzuki LS650B S40 - 2018 года выпуска
-
№АртикулНазвание
-
151103-24B70 DAMPER ASSY, FRONT FORK RIGHTDAMPER ASSY, FRONT FORK RIGHT
-
251130-24B70 ...TUBE, OUTER RH...TUBE, OUTER RH
-
351173-20A00 ...SEAL, DUST...SEAL, DUST
-
451156-40301 ...RING, OIL SEAL STOPPER...RING, OIL SEAL STOPPER
-
551153-20A00 ...OIL SEAL...OIL SEAL
-
651158-14100 ...WASHER...WASHER
-
751167-13A00 ...METAL, SLIDE...METAL, SLIDE
-
851147-16510 ...BOLT, FORK CYLINDER...BOLT, FORK CYLINDER
-
951148-41310 ...GASKET...GASKET
-
1007130-08407 ...BOLT...BOLT
-
1151195-24B01 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
1251146-24B01 ...CYLINDER...CYLINDER
-
1351177-49440 ...SPRING, REBOUND...SPRING, REBOUND
-
1451196-49440 ...RING, PISTON...RING, PISTON
-
1551120-24B01 ...TUBE, INNER...TUBE, INNER
-
1651121-14100 ...PISTON...PISTON
-
1751171-24B00 ...SPRING...SPRING
-
1851172-45C00 ...WASHER...WASHER
-
1951176-24B01 ...SPACER, SPRING...SPACER, SPRING
-
2051117-40300 ...O RING...O RING
-
2151351-24B00 ...CAP...CAP
-
2251201-01DA0 ...PROTECTOR, FRONT FORK...PROTECTOR, FRONT FORK
-
2351104-24B70 DAMPER ASSY, FRONT FORK LEFTDAMPER ASSY, FRONT FORK LEFT
-
2451140-24B70 ...TUBE, OUTER LH...TUBE, OUTER LH
-
2551173-20A00 ...SEAL, DUST...SEAL, DUST
-
2651156-40301 ...RING, OIL SEAL STOPPER...RING, OIL SEAL STOPPER
-
2751153-20A00 ...OIL SEAL...OIL SEAL
-
2851158-14100 ...WASHER...WASHER
-
2951167-13A00 ...METAL, SLIDE...METAL, SLIDE
-
3051147-16510 ...BOLT, FORK CYLINDER...BOLT, FORK CYLINDER
-
3151148-41310 ...GASKET...GASKET
-
3251195-24B01 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
3351146-24B01 ...CYLINDER...CYLINDER
-
3451177-49440 ...SPRING, REBOUND...SPRING, REBOUND
-
3551196-49440 ...RING, PISTON...RING, PISTON
-
3651120-24B01 ...TUBE, INNER...TUBE, INNER
-
3751121-14100 ...PISTON...PISTON
-
3851171-24B00 ...SPRING...SPRING
-
3951172-45C00 ...WASHER...WASHER
-
4051176-24B01 ...SPACER, SPRING...SPACER, SPRING
-
4151117-40300 ...O RING...O RING
-
4251351-24B00 ...CAP...CAP
-
4351201-01DA0 ...PROTECTOR, FRONT FORK...PROTECTOR, FRONT FORK
