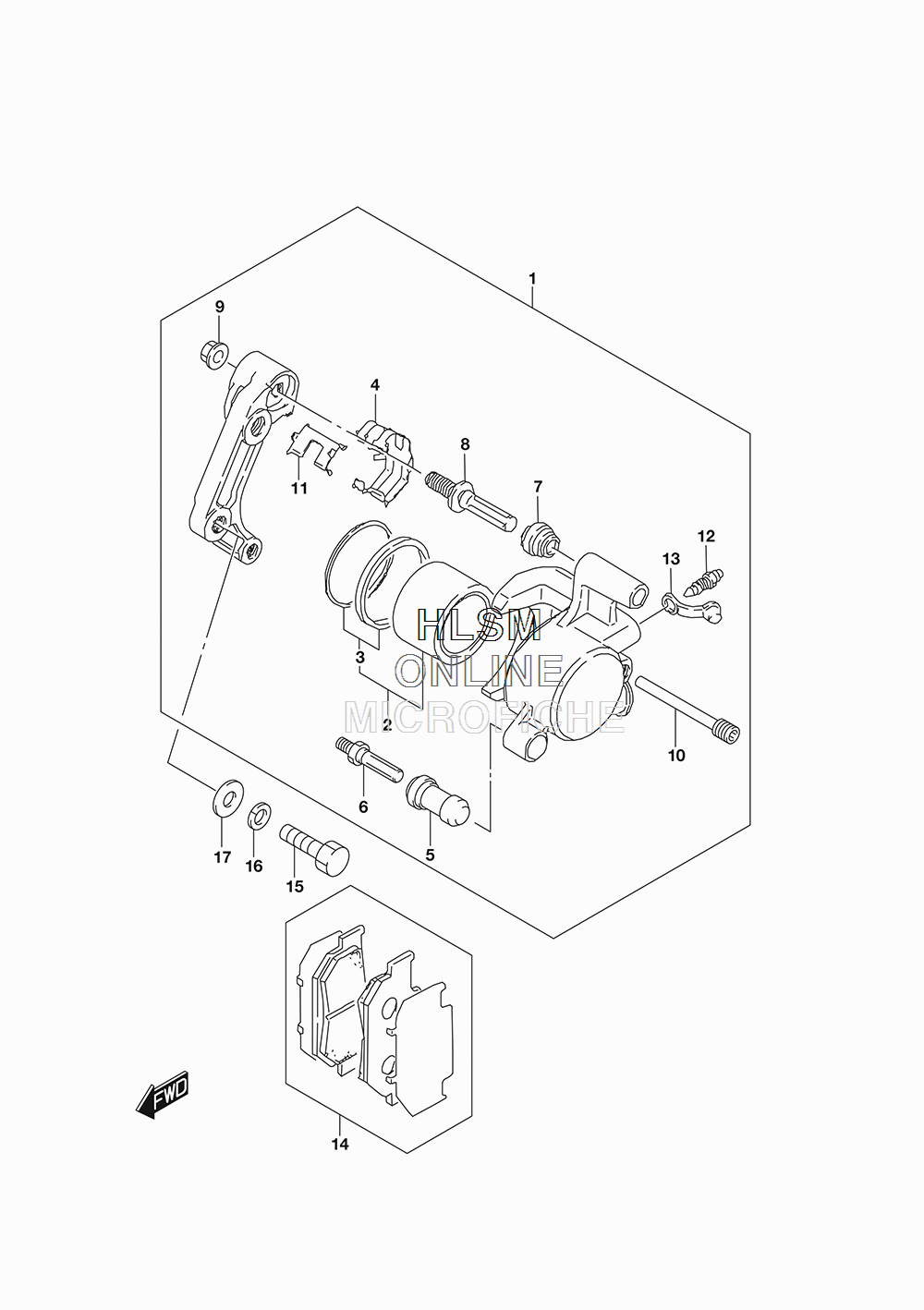

BRAKE - FRONT CALIPER для Suzuki LS650B S40 - 2018 года выпуска`
-
№АртикулНазвание
-
159300-24B60-999 CALIPER ASSY, FRONTCALIPER ASSY, FRONT
-
259300-24820 ...PISTON SET...PISTON SET
-
359300-24810 ......SEAL SET, PISTON......SEAL SET, PISTON
-
459315-14600 ...SPRING...SPRING
-
559386-13A00 ...BOOT...BOOT
-
659382-27C30 ...BOLT...BOLT
-
759303-14500 ...BOOT...BOOT
-
859305-14500 ...BOLT...BOLT
-
959306-14500 ...NUT...NUT
-
1059345-14600 ...PIN...PIN
-
1159316-24B10 ...RETAINER...RETAINER
-
1259121-01A00 ...BLEEDER...BLEEDER
-
1359122-46H00 ...CAP, BLEEDER...CAP, BLEEDER
-
1459300-24830 PAD SETPAD SET
-
1509104-10029 BOLT (10X38)BOLT (10X38)
-
1609162-10008 LOCK WASHERLOCK WASHER
-
1708322-01107 WASHERWASHER
