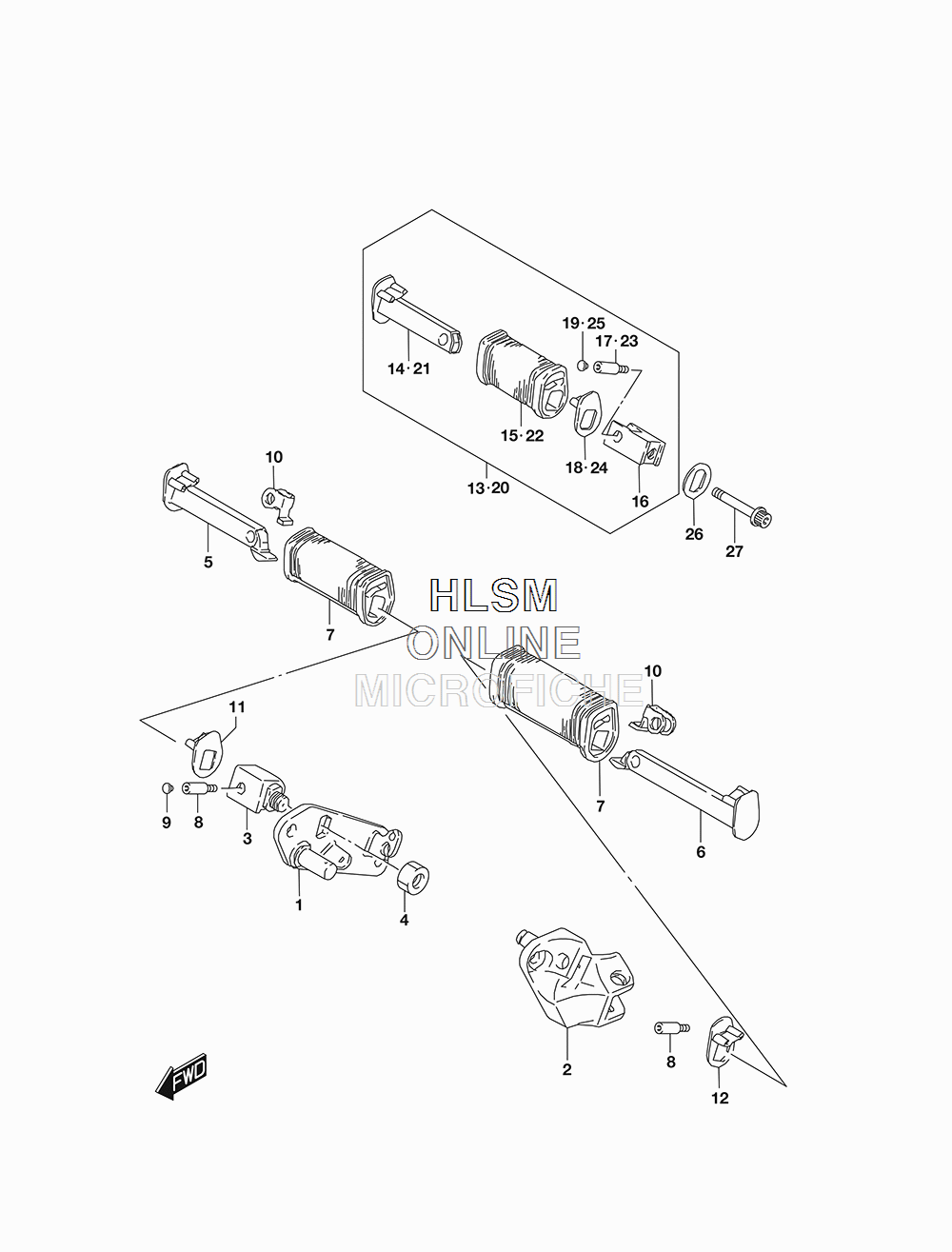

FOOTREST для Suzuki LS650B S40 - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    43510-24B10 BRACKET, FRONT FOOTREST (RH)
    BRACKET, FRONT FOOTREST (RH)
  • 2
    43520-24B30 BRACKET, FRONT FOOTREST (LH)
    BRACKET, FRONT FOOTREST (LH)
  • 3
    43517-24B10 HOLDER, FRONT FOOTREST (RH)
    HOLDER, FRONT FOOTREST (RH)
  • 4
    09140-16029 NUT (RH)
    NUT (RH)
  • 5
    43530-24B20 BAR, FRONT FOOTREST (RH)
    BAR, FRONT FOOTREST (RH)
  • 6
    43540-24B20 BAR, FRONT FOOTREST (LH)
    BAR, FRONT FOOTREST (LH)
  • 7
    43551-38A00 RUBBER, FRONT FOOTREST
    RUBBER, FRONT FOOTREST
  • 8
    09106-06100 BOLT (6X8)
    BOLT (6X8)
  • 9
    43576-24B00 CAP, FRONT FOOTREST RUBBER BOLT
    CAP, FRONT FOOTREST RUBBER BOLT
  • 10
    43570-24B01 CUSHION, FRONT FOOTREST
    CUSHION, FRONT FOOTREST
  • 11
    43470-24B00 WASHER, FRONT FOOTREST (RH)
    WASHER, FRONT FOOTREST (RH)
  • 12
    43480-24B00 WASHER, FRONT FOOTREST (LH)
    WASHER, FRONT FOOTREST (LH)
  • 13
    43600-24B10 FOOTREST ASSY, PILLION (RH)
    FOOTREST ASSY, PILLION (RH)
  • 14
    43610-24B10 ...BAR, PILLION FOOTREST (RH)
    ...BAR, PILLION FOOTREST (RH)
  • 15
    43651-24B00 ...RUBBER, PILLION FOOTREST
    ...RUBBER, PILLION FOOTREST
  • 16
    43621-24B20 ...HOLDER, PILLION FOOTREST
    ...HOLDER, PILLION FOOTREST
  • 17
    09106-06100 ...BOLT (6X8)
    ...BOLT (6X8)
  • 18
    43570-38A00 ...WASHER, PILLION FOOTREST (RH)
    ...WASHER, PILLION FOOTREST (RH)
  • 19
    43576-24B00 ...CAP, PILLION FOOTREST BOLT
    ...CAP, PILLION FOOTREST BOLT
  • 20
    43700-24B10 FOOTREST ASSY, PILLION (LH)
    FOOTREST ASSY, PILLION (LH)
  • 21
    43710-24B10 ...BAR, PILLION FOOTREST (LH)
    ...BAR, PILLION FOOTREST (LH)
  • 22
    43651-24B00 ...RUBBER, PILLION FOOTREST
    ...RUBBER, PILLION FOOTREST
  • 23
    09106-06100 ...BOLT (6X8)
    ...BOLT (6X8)
  • 24
    43580-38A00 ...WASHER, PILLION FOOTREST (LH)
    ...WASHER, PILLION FOOTREST (LH)
  • 25
    43576-24B00 ...CAP, PILLION FOOTREST BOLT
    ...CAP, PILLION FOOTREST BOLT
  • 26
    43622-24B10 WASHER, PILLION FOOTREST HOLDER
    WASHER, PILLION FOOTREST HOLDER
  • 27
    09106-10086 BOLT (10X45)
    BOLT (10X45)
