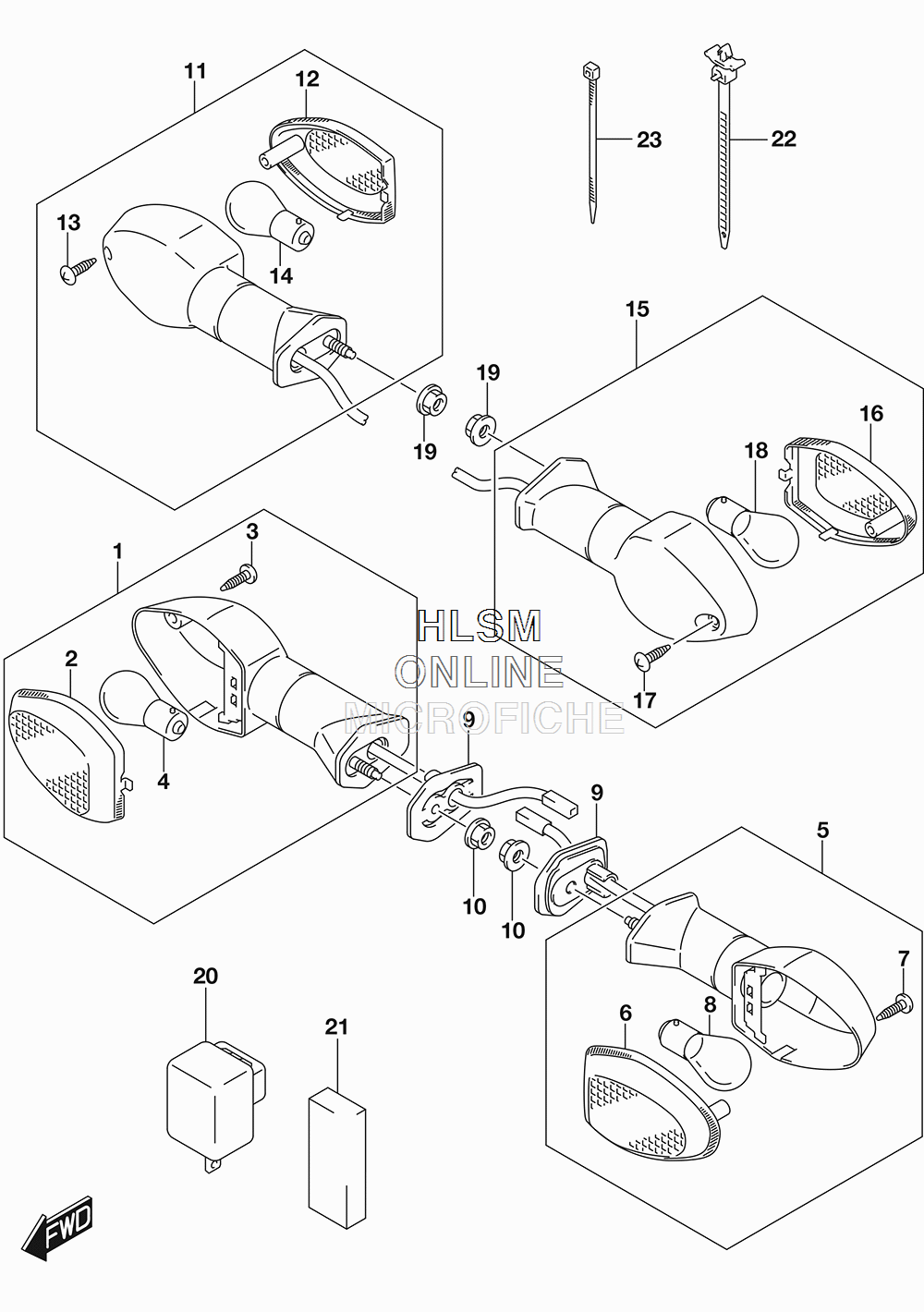

TURN SIGNAL ASSY. для Suzuki GSX-S1000F ABS L8 - 2018 года выпуска`
-
№АртикулНазвание
-
135601-08J01 LAMP ASSY, FRONT TURNSIGNAL RLAMP ASSY, FRONT TURNSIGNAL R
-
235612-08J01 ...LENS, (RH)...LENS, (RH)
-
303211-0414B ...SCREW...SCREW
-
409471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
535602-08J01 LAMP ASSY, FRONT TURNSIGNAL LLAMP ASSY, FRONT TURNSIGNAL L
-
635632-08J01 ...LENS, (LH)...LENS, (LH)
-
703211-0414B ...SCREW...SCREW
-
809471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
935629-18G00 PLATE, FRONT TURNSIGNALPLATE, FRONT TURNSIGNAL
-
1008316-1005A NUTNUT
-
1135603-08J20 LAMP ASSY, REAR TURNSIGNAL (RH)LAMP ASSY, REAR TURNSIGNAL (RH)
-
1235632-08J01 ...LENS, (RH)...LENS, (RH)
-
1303211-0414B ...SCREW...SCREW
-
1409471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
1535604-08J20 LAMP ASSY, REAR TURNSIGNAL (LH)LAMP ASSY, REAR TURNSIGNAL (LH)
-
1635612-08J01 ...LENS, (LH)...LENS, (LH)
-
1703211-0414B ...SCREW...SCREW
-
1809471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
1908316-1005A NUTNUT
-
2038610-06F10 RELAY ASSY, TURNSIGNAL LAMPRELAY ASSY, TURNSIGNAL LAMP
-
2136652-04K00 CUSHIONCUSHION
-
2209407-14408 CLAMP (L:120)CLAMP (L:120)
-
2309407-14407 CLAMP (L:145)CLAMP (L:145)
