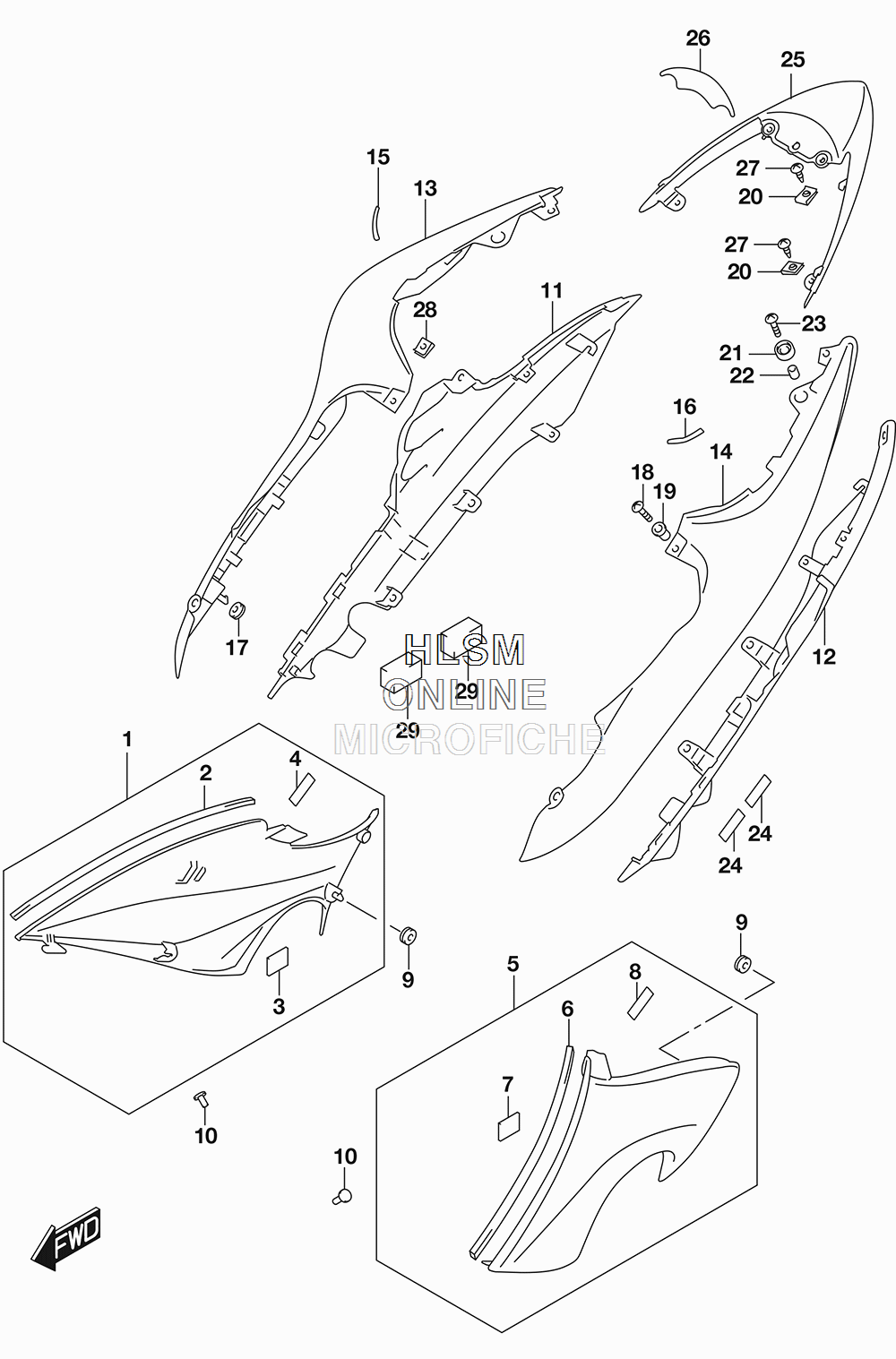

SIDE COVER для Suzuki GSX-S1000F ABS L8 - 2018 года выпуска
-
№АртикулНазвание
-
147110-04K00 COVER, FRAME FRONT (RH)COVER, FRAME FRONT (RH)
-
244277-37H00 ...CUSHION, FRONT NO.3...CUSHION, FRONT NO.3
-
344572-13G00 ...FASTENER...FASTENER
-
494476-38C00 ...CUSHION, FRONT NO.2...CUSHION, FRONT NO.2
-
547210-04K00 COVER, FRAME FRONT (LH)COVER, FRAME FRONT (LH)
-
644277-37H00 ...CUSHION, FRONT NO.3...CUSHION, FRONT NO.3
-
744572-13G00 ...FASTENER...FASTENER
-
894476-38C00 ...CUSHION, FRONT NO.2...CUSHION, FRONT NO.2
-
909320-06504 CUSHIONCUSHION
-
1009409-10314 CLIPCLIP
-
1147131-04K00 COVER, FRAME REAR LOWER (RH)COVER, FRAME REAR LOWER (RH)
-
1247231-04K00 COVER, FRAME REAR LOWER (LH)COVER, FRAME REAR LOWER (LH)
-
13-147121-04K00-YVB COVER, FRAME REAR UPPER (RH) (YVB - BLACK FOR AV4, KEL)COVER, FRAME REAR UPPER (RH) (YVB - BLACK FOR AV4, KEL)
-
13-247121-04K00-YWW COVER, FRAME REAR UPPER (RH) (FOR YWW - WHITE)COVER, FRAME REAR UPPER (RH) (FOR YWW - WHITE)
-
14-147221-04K00-YVB COVER, FRAME REAR UPPER (LH) (YVB - BLACK FOR AV4, KEL)COVER, FRAME REAR UPPER (LH) (YVB - BLACK FOR AV4, KEL)
-
14-247221-04K00-YWW COVER, FRAME REAR UPPER (LH) (FOR YWW - WHITE)COVER, FRAME REAR UPPER (LH) (FOR YWW - WHITE)
-
1547313-04K01 TAPE, FRAME COVER, (RH)TAPE, FRAME COVER, (RH)
-
1647314-04K01 TAPE, FRAME COVER, (LH)TAPE, FRAME COVER, (LH)
-
1709320-08028 CUSHIONCUSHION
-
1802142-1520B SCREWSCREW
-
1909159-05019 NUTNUT
-
2009148-05047 NUTNUT
-
2147312-37H00 CUSHION, FRAME COVER RRCUSHION, FRAME COVER RR
-
2209180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
2309136-06105 SCREW (6X20)SCREW (6X20)
-
2494443-06G00 TAPE (6X25X0.13)TAPE (6X25X0.13)
-
25-147311-04K00-YKV COVER, FRAME CENTER (YKV - BLACK FOR YWW)COVER, FRAME CENTER (YKV - BLACK FOR YWW)
-
25-247311-04K00-YSF COVER, FRAME CENTER (YSF - BLUE FOR KEL)COVER, FRAME CENTER (YSF - BLUE FOR KEL)
-
25-347311-04K00-YYG COVER, FRAME CENTER (YYG - RED FOR AV4)COVER, FRAME CENTER (YYG - RED FOR AV4)
-
2647312-04K00 TAPE, FRAME COVER CTRTAPE, FRAME COVER CTR
-
2703541-0512B SCREWSCREW
-
2809148-05047 NUTNUT
-
2917798-39G00 CUSHION, FRAME COVER LOWERCUSHION, FRAME COVER LOWER
