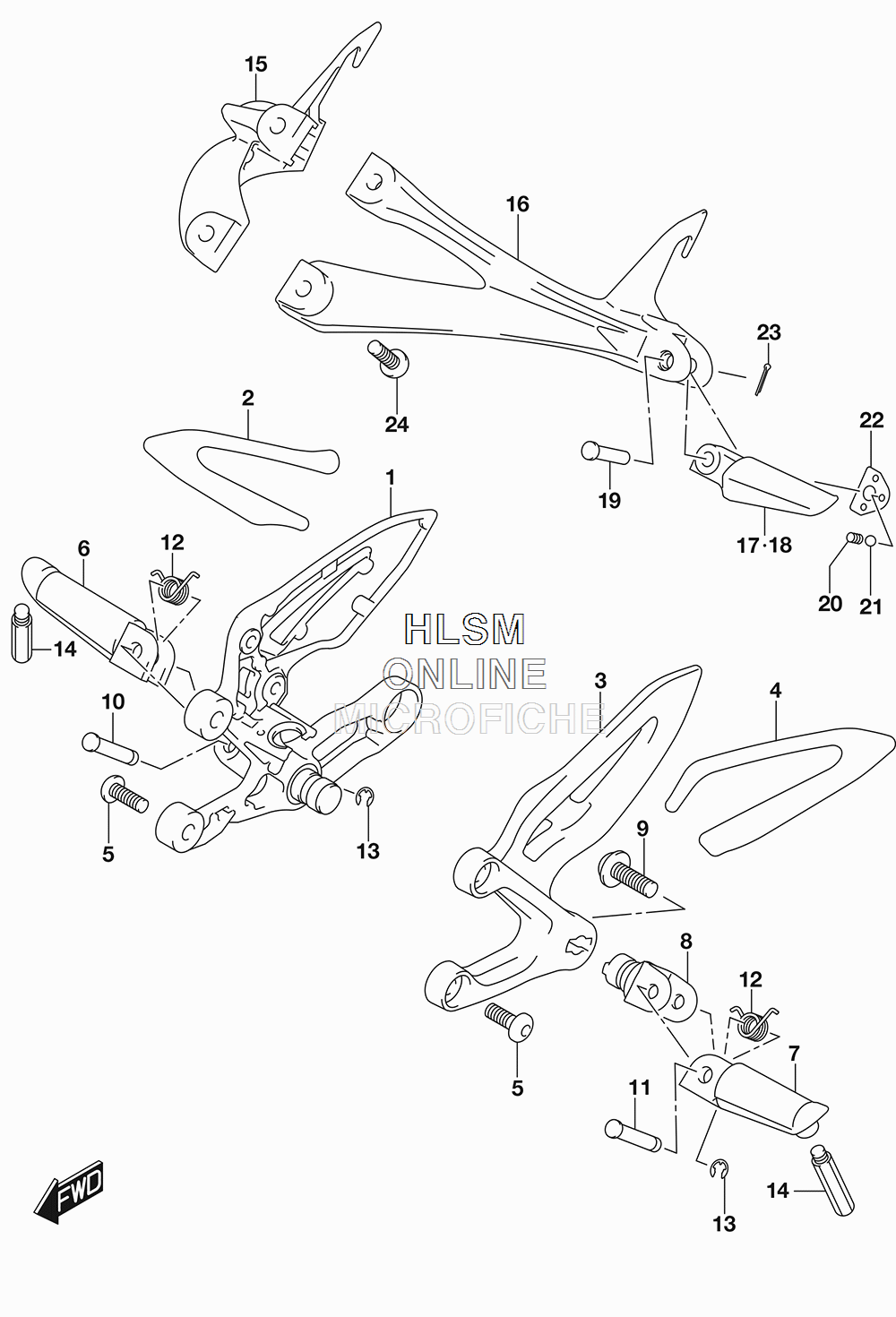

FOOTREST для Suzuki GSX-S1000F ABS L8 - 2018 года выпуска
-
№АртикулНазвание
-
143510-04K10 BRACKET, FRONT FOOTREST (RH)BRACKET, FRONT FOOTREST (RH)
-
243571-04K10 TAPE, FRONT FOOTREST (RH)TAPE, FRONT FOOTREST (RH)
-
343521-04K10 BRACKET, FRONT FOOTREST (LH)BRACKET, FRONT FOOTREST (LH)
-
443572-04K10 TAPE, FRONT FOOTREST (LH)TAPE, FRONT FOOTREST (LH)
-
509106-08181 BOLT (8X23)BOLT (8X23)
-
643516-35F20 BAR, FOOTREST (RH)BAR, FOOTREST (RH)
-
743526-35F20 BAR, FOOTREST (LH)BAR, FOOTREST (LH)
-
843530-16G10 HOLDER, FOOTREST (LH)HOLDER, FOOTREST (LH)
-
909106-10064 BOLT (10X28) (LH)BOLT (10X28) (LH)
-
1009208-08019 PIN (RH)PIN (RH)
-
1109208-08018 PIN (LH)PIN (LH)
-
1243581-47H00 SPRING, FRONT FOOTRESTSPRING, FRONT FOOTREST
-
1308332-1106A E RINGE RING
-
1443576-48B50 BOLT, BANK SENSORBOLT, BANK SENSOR
-
1543811-04K00 BRACKET ,PILLION FOOTREST (RH)BRACKET ,PILLION FOOTREST (RH)
-
1643821-04K00 BRACKET ,PILLION FOOTREST (LH)BRACKET ,PILLION FOOTREST (LH)
-
1743611-37H30 BAR, PILLION FOOTREST (RH)BAR, PILLION FOOTREST (RH)
-
1843621-37H30 BAR, PILLION FOOTREST (LH)BAR, PILLION FOOTREST (LH)
-
1909200-08002 PINPIN
-
2009440-05003 SPRINGSPRING
-
2106111-07004 BALLBALL
-
2243816-01H20 PLATEPLATE
-
2304111-2015A PINPIN
-
2409106-08151 BOLT (8X25)BOLT (8X25)
