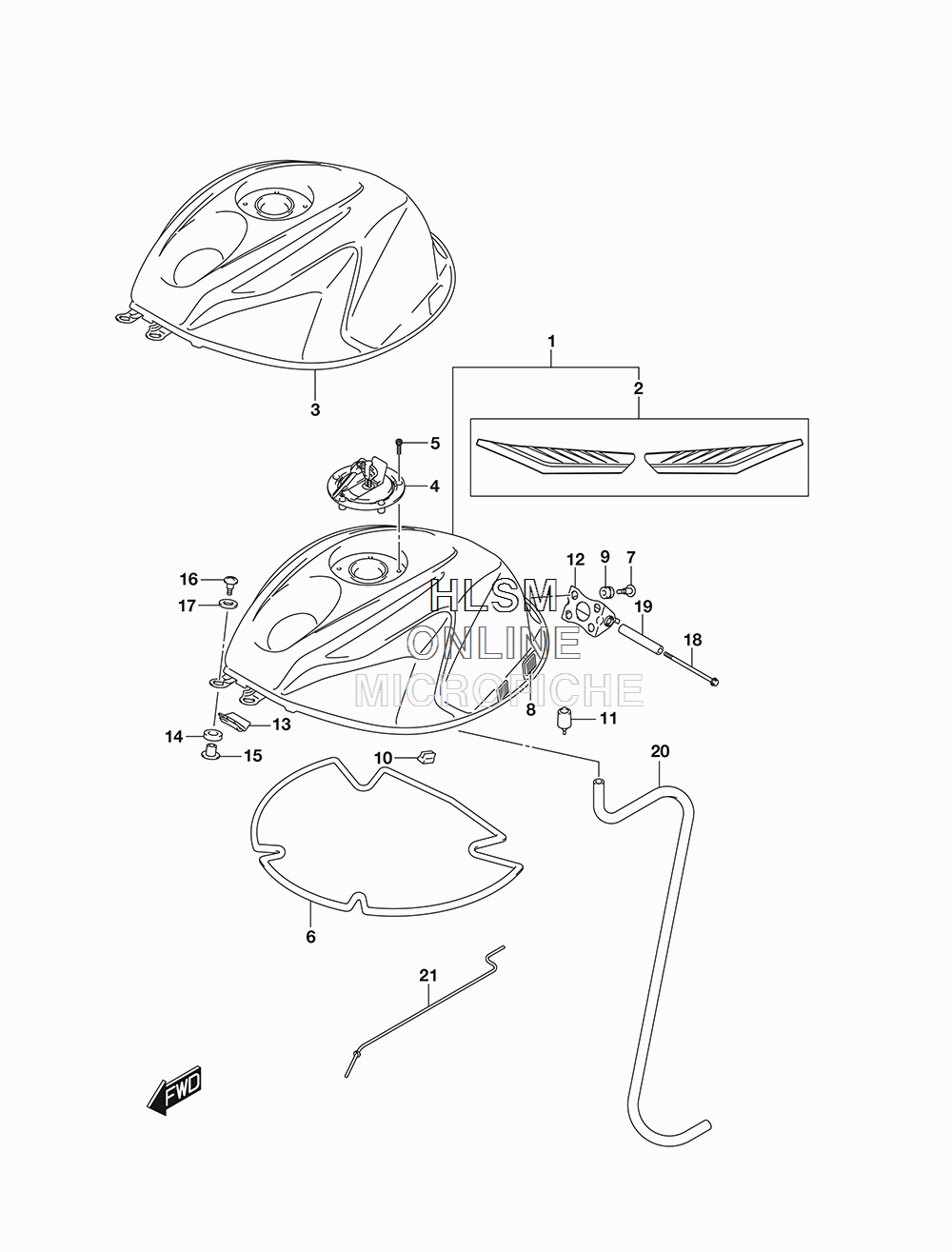

FUEL TANK (CALIF.) для Suzuki GSX-R750 - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    44100-14JE0-YSF TANK ASSY, FUEL (YSF - BLUE FOR YSF - BLUE)
    TANK ASSY, FUEL (YSF - BLUE FOR YSF - BLUE)
  • 2
    68110-14J10-BDH ...TAPE SET, FUEL TANK (BDH - BLUE/WHITE FOR YSF - BLUE)
    ...TAPE SET, FUEL TANK (BDH - BLUE/WHITE FOR YSF - BLUE)
  • 3
    44100-14J52-YVB TANK ASSY, FUEL (YVB - BLACK FOR AV4 - RED/BLACK)
    TANK ASSY, FUEL (YVB - BLACK FOR AV4 - RED/BLACK)
  • 3
    44100-14J52-YVB TANK ASSY, FUEL (YVB - BLACK FOR BD7 - GRAY/BLACK)
    TANK ASSY, FUEL (YVB - BLACK FOR BD7 - GRAY/BLACK)
  • 4
    44200-16870 CAP SET, FUEL TANK
    CAP SET, FUEL TANK
  • 5
    44244-11J00 BOLT, FUEL TANK FILLER CAP
    BOLT, FUEL TANK FILLER CAP
  • 6
    44191-14J00 SHIELD, FUEL TANK HEAT
    SHIELD, FUEL TANK HEAT
  • 7
    44543-14J00 SCREW, FUEL TANK REAR BRACKET
    SCREW, FUEL TANK REAR BRACKET
  • 8
    44572-13G00 FASTENER, COVER
    FASTENER, COVER
  • 9
    09320-08071 CUSHION
    CUSHION
  • 10
    44276-21H00 CUSHION, TANK COVER
    CUSHION, TANK COVER
  • 11
    44542-41G00 CUSHION, REAR
    CUSHION, REAR
  • 12
    44530-41G01 BRACKET, REAR
    BRACKET, REAR
  • 13
    44546-44H00 RUBBER, TANK FRONT
    RUBBER, TANK FRONT
  • 14
    44511-16G00 CUSHION
    CUSHION
  • 15
    44512-16G00 SPACER, TANK FRONT
    SPACER, TANK FRONT
  • 16
    09139-06192 SCREW (6X25)
    SCREW (6X25)
  • 17
    09160-06012 WASHER (6.5X22X1.6)
    WASHER (6.5X22X1.6)
  • 18
    09106-06119 BOLT (6X110)
    BOLT (6X110)
  • 19
    44561-18G00 SPACER, TANK REAR
    SPACER, TANK REAR
  • 20
    44423-14J00 HOSE, DRAIN
    HOSE, DRAIN
  • 21
    44574-35F00 STAY, FUEL TANK (OPT)
    STAY, FUEL TANK (OPT)
