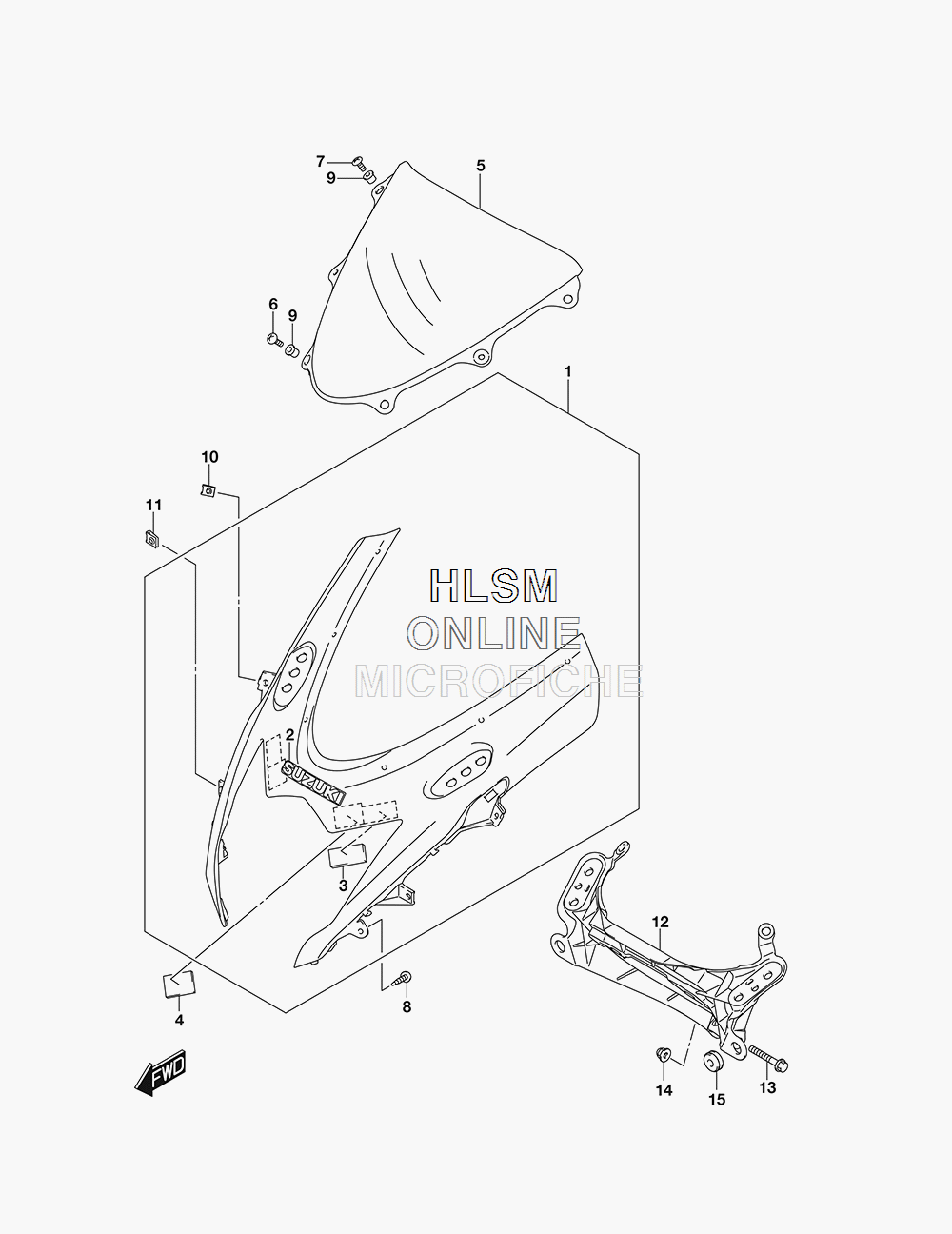

COWLING BODY для Suzuki GSX-R750 - 2018 года выпуска

  • №
    Артикул
    Название
  • 1-1
    94410-14J10-6CX BODY, COWLING (6CX - BLUE FOR YSF - BLUE)
    BODY, COWLING (6CX - BLUE FOR YSF - BLUE)
  • 1-2
    94410-14J10-44X BODY, COWLING (44X - BLACK FOR AV4 - RED/BLACK)
    BODY, COWLING (44X - BLACK FOR AV4 - RED/BLACK)
  • 1-3
    94410-14J10-ACX BODY, COWLING (ACX - BLACK FOR BD7 - GRAY/BLACK)
    BODY, COWLING (ACX - BLACK FOR BD7 - GRAY/BLACK)
  • 2-1
    68641-19F00-YWW ...EMBLEM "SUZUKI" (YWW - WHITE FOR COWL 6CX FOR BIKE YSF - BLUE)
    ...EMBLEM "SUZUKI" (YWW - WHITE FOR COWL 6CX FOR BIKE YSF - BLUE)
  • 2-2
    68641-19F00-YWW ...EMBLEM "SUZUKI" (YWW - WHITE FOR COWL 44X FOR BIKE AV4 - RED/BLACK)
    ...EMBLEM "SUZUKI" (YWW - WHITE FOR COWL 44X FOR BIKE AV4 - RED/BLACK)
  • 2-3
    68641-19F00-YVZ ...EMBLEM "SUZUKI" (YVZ - RED FOR COWL ACX FOR BIKE BD7 - GRAY/BLACK)
    ...EMBLEM "SUZUKI" (YVZ - RED FOR COWL ACX FOR BIKE BD7 - GRAY/BLACK)
  • 3
    92146-14J00 ...CUSHION
    ...CUSHION
  • 4
    44572-02F01 FASTENER
    FASTENER
  • 5
    94611-14J00 WINDSCREEN
    WINDSCREEN
  • 6
    09125-05133 SCREW (5X18)
    SCREW (5X18)
  • 7
    09125-05134 SCREW (5X15)
    SCREW (5X15)
  • 8
    03541-0516A SCREW
    SCREW
  • 9
    09159-05019 NUT
    NUT
  • 10
    09148-05052 NUT
    NUT
  • 11
    09148-05047 NUT
    NUT
  • 12
    94511-14J00 BRACE, COWLING
    BRACE, COWLING
  • 13
    09103-08207 BOLT (8X45)
    BOLT (8X45)
  • 14
    08313-2008A NUT
    NUT
  • 15
    09320-08047 CUSHION
    CUSHION
