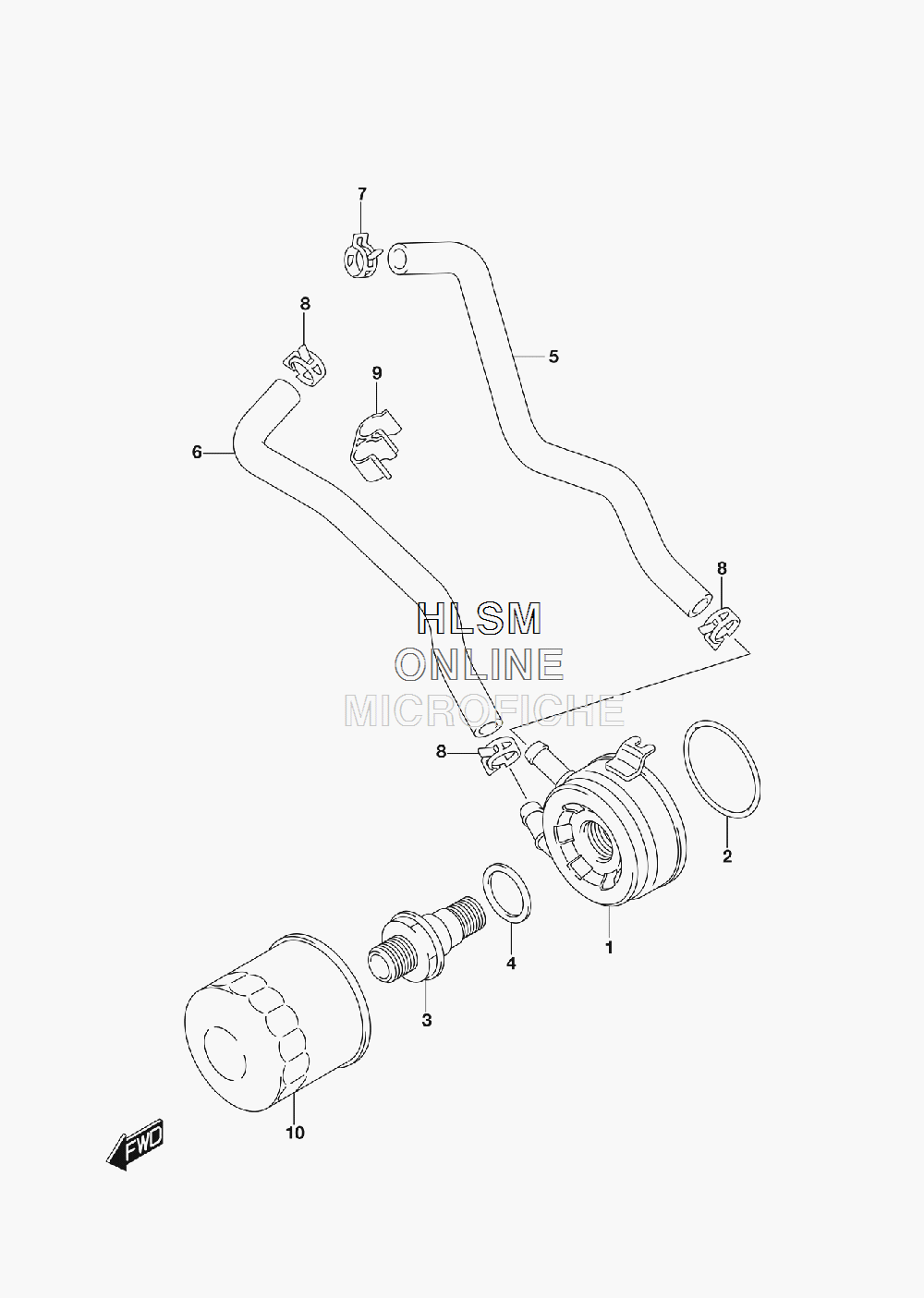

OIL COOLER для Suzuki DL650XA V-STORM 650XT - 2018 года выпуска
-
№АртикулНазвание
-
116600-44H00 COOLER ASSY, OILCOOLER ASSY, OIL
-
209280-55002 O RING (D:3.1, ID:54.5)O RING (D:3.1, ID:54.5)
-
316591-02F00 BOLT, OIL COOLER UNIONBOLT, OIL COOLER UNION
-
409181-25160 SHIM (25X34X0.7)SHIM (25X34X0.7)
-
516461-44H00 HOSE, OIL COOLER INHOSE, OIL COOLER IN
-
616471-44H00 HOSE, OIL COOLER OUTHOSE, OIL COOLER OUT
-
709401-16407 CLIPCLIP
-
809401-16409 CLIPCLIP
-
909408-00267 CLAMPCLAMP
-
1016510-07J00 FILTER ASSY, ENGINE OIL (P1.0)FILTER ASSY, ENGINE OIL (P1.0)
