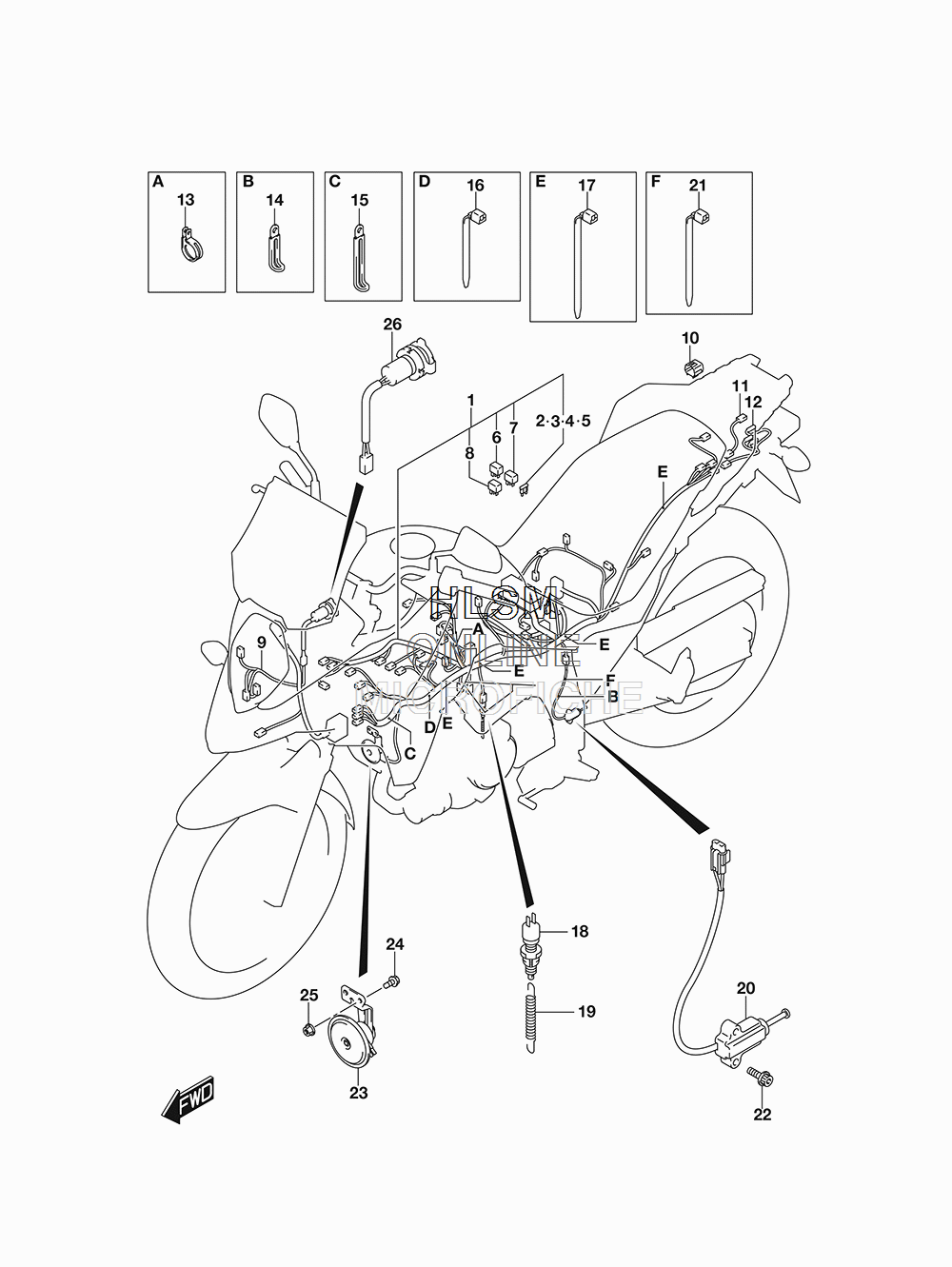

ELECTRICAL - WIRING HARNESS для Suzuki DL650XA V-STORM 650XT - 2018 года выпуска`
-
№АртикулНазвание
-
136610-28K10 HARNESS, WIRING NO.1HARNESS, WIRING NO.1
-
209481-03501 ...FUSE (3A)...FUSE (3A)
-
309481-10504 ...FUSE (10A)...FUSE (10A)
-
409481-15504 ...FUSE (15A)...FUSE (15A)
-
509481-25504 ...FUSE (25A)...FUSE (25A)
-
638860-76F01 ...RELAY ASSY (FOR FUEL PUMP)...RELAY ASSY (FOR FUEL PUMP)
-
738860-76F01 ...RELAY ASSY (FOR FAN MOTOR)...RELAY ASSY (FOR FAN MOTOR)
-
838860-76F01 ...RELAY ASSY (FOR SIDE STAND)...RELAY ASSY (FOR SIDE STAND)
-
936620-28K00 HARNESS, WIRING NO.2HARNESS, WIRING NO.2
-
1036654-06J00 CAP, TSCAP, TS
-
1136853-28K00 WIRE, REAR COMB LEADWIRE, REAR COMB LEAD
-
1236856-28K00 WIRE, REAR TURNSIGNAL LEADWIRE, REAR TURNSIGNAL LEAD
-
1309403-26401 CLAMPCLAMP
-
1409404-06429 CLAMP (L:45)CLAMP (L:45)
-
1509404-06433 CLAMP (L:80)CLAMP (L:80)
-
1609407-14403 CLAMP (L:125)CLAMP (L:125)
-
1709407-18402 CLAMP (L:165)CLAMP (L:165)
-
1837740-31D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1909443-06012 SPRINGSPRING
-
2037840-06G00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
2109407-10404 CLAMP (L:100)CLAMP (L:100)
-
2201550-0616A BOLTBOLT
-
2338500-11J00 HORN ASSYHORN ASSY
-
2409118-06017 BOLT (6X16)BOLT (6X16)
-
2508316-1006A NUTNUT
-
2638850-31J00 TERMINAL, POWER SOURCETERMINAL, POWER SOURCE
