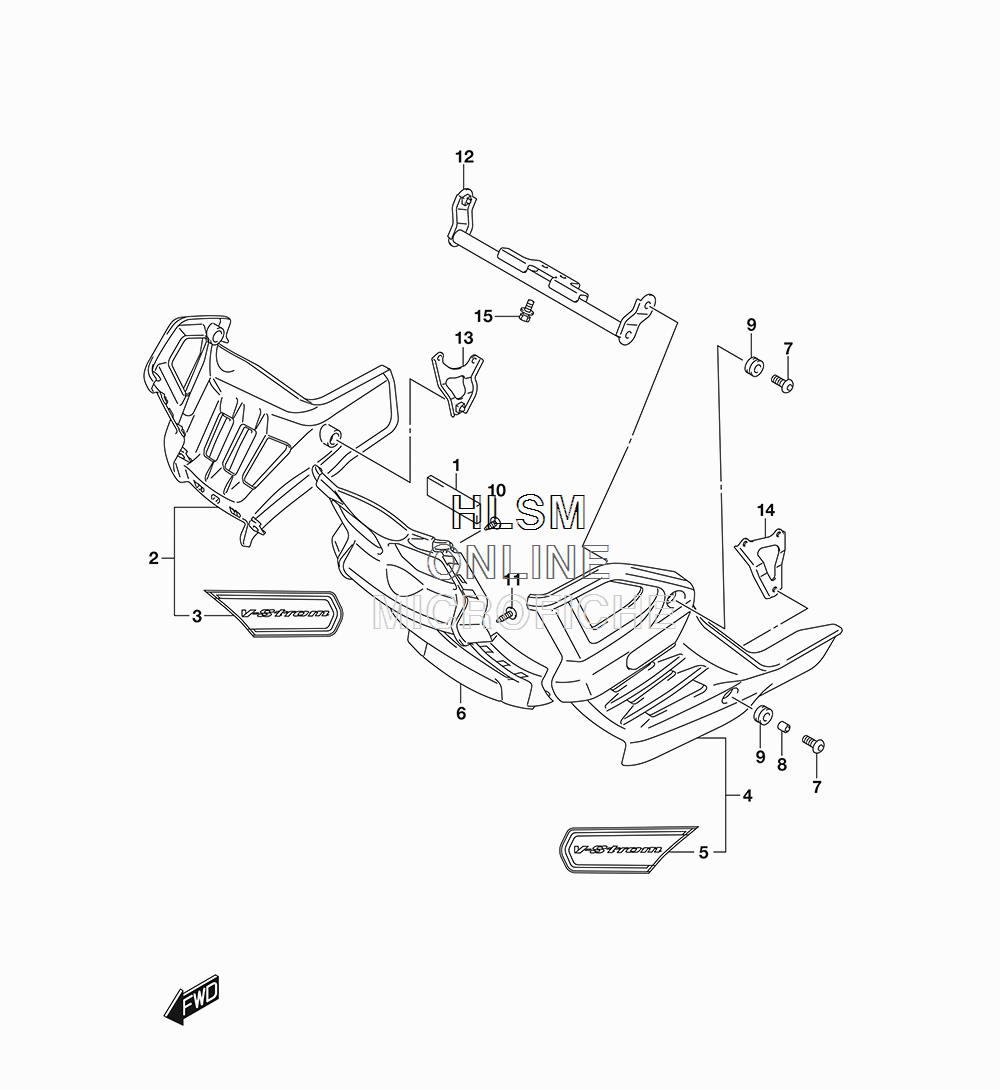

COWLING - UNDER BODY для Suzuki DL650XA V-STORM 650XT - 2018 года выпуска
-
№АртикулНазвание
-
147612-44H00 CUSHION, FRAME COVER LOWER NO.CUSHION, FRAME COVER LOWER NO.
-
294470-11J00-291 COWLING, UNDER (RH) (291 - BLACK)COWLING, UNDER (RH) (291 - BLACK)
-
368181-11J00 ...EMBLEM, UNDER COWL (RH)...EMBLEM, UNDER COWL (RH)
-
494480-11J00-291 UNDER COWL (LH) (291 - BLACK)UNDER COWL (LH) (291 - BLACK)
-
568191-11J00 ...EMBLEM, UNDER COWL, (LH)...EMBLEM, UNDER COWL, (LH)
-
694491-11J00-291 COWLING, UNDER CENTER (291 - BLACK)COWLING, UNDER CENTER (291 - BLACK)
-
709139-06139 SCREW (6X16)SCREW (6X16)
-
809180-06263 SPACER (6.5X9X9)SPACER (6.5X9X9)
-
909320-09016 CUSHIONCUSHION
-
1003541-0510B SCREWSCREW
-
1103541-0516B SCREWSCREW
-
1294520-11J00 BRACKET, UNDER COWLING FRONTBRACKET, UNDER COWLING FRONT
-
1394530-11J00 BRACKET, UNDER COWLING (RH)BRACKET, UNDER COWLING (RH)
-
1494540-11J00 BRACKET, UNDER COWLING (LH)BRACKET, UNDER COWLING (LH)
-
1509116-06006 BOLT (6X16)BOLT (6X16)
