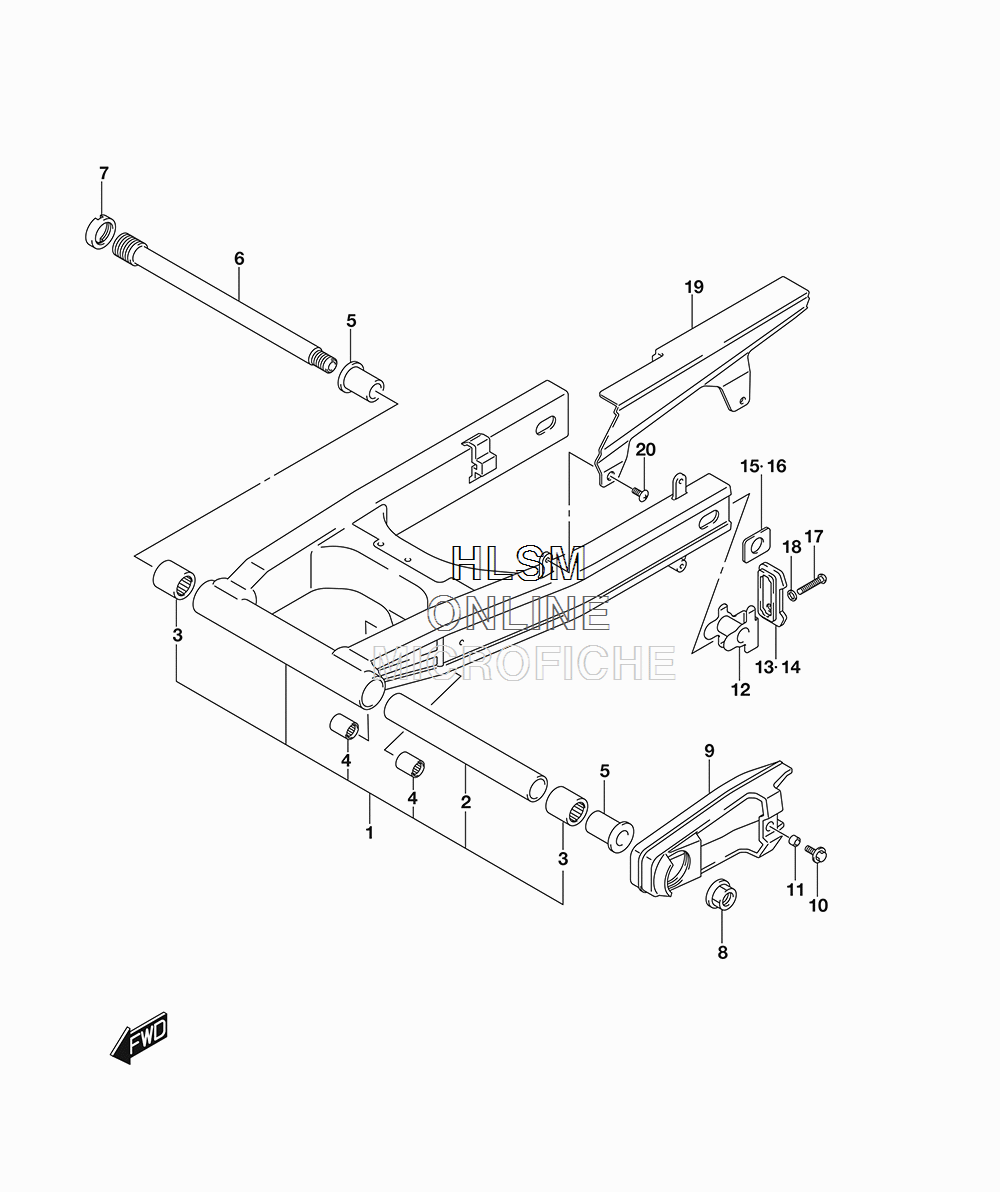

SUSPENSION - REAR SWINGARM для Suzuki DL650A V-STORM 650 - 2018 года выпуска`
-
№АртикулНазвание
-
161000-27G30-YAP SWINGARM ASSY, REAR (YAP - BLACK)SWINGARM ASSY, REAR (YAP - BLACK)
-
209180-20118 ...SPACER (20.8X27.2X196.7)...SPACER (20.8X27.2X196.7)
-
309263-25059 ...BEARING (25X33X35)...BEARING (25X33X35)
-
409263-17037 ...BEARING (17X24X25)...BEARING (17X24X25)
-
561251-31E00 SPACER, RR SWINGARM PIVOT, BRGSPACER, RR SWINGARM PIVOT, BRG
-
661211-06G00 SHAFT, RR SWINGARM PIVOTSHAFT, RR SWINGARM PIVOT
-
761214-19F10 NUT, RR SWINGARM PIVOT BOLTNUT, RR SWINGARM PIVOT BOLT
-
808319-3118A NUTNUT
-
961273-27G00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1009116-06111 BOLT (6X20)BOLT (6X20)
-
1109180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
1261410-03F00 ADJUSTER, CHAINADJUSTER, CHAIN
-
1361421-33D01 PLATE, CHAIN ADJUSTER GUIDE (RH)PLATE, CHAIN ADJUSTER GUIDE (RH)
-
1461422-33D01 PLATE, CHAIN ADJUSTER GUIDE (LH)PLATE, CHAIN ADJUSTER GUIDE (LH)
-
1564712-03F01 WASHER, CHAIN ADJUSTER (RH)WASHER, CHAIN ADJUSTER (RH)
-
1664713-03F01 WASHER, CHAIN ADJUSTER (LH)WASHER, CHAIN ADJUSTER (LH)
-
1709106-08119 BOLT (8X50)BOLT (8X50)
-
1809164-08015 WASHERWASHER
-
1961310-16G00 CASE, CHAINCASE, CHAIN
-
2009139-06083 SCREW (6X16)SCREW (6X16)
