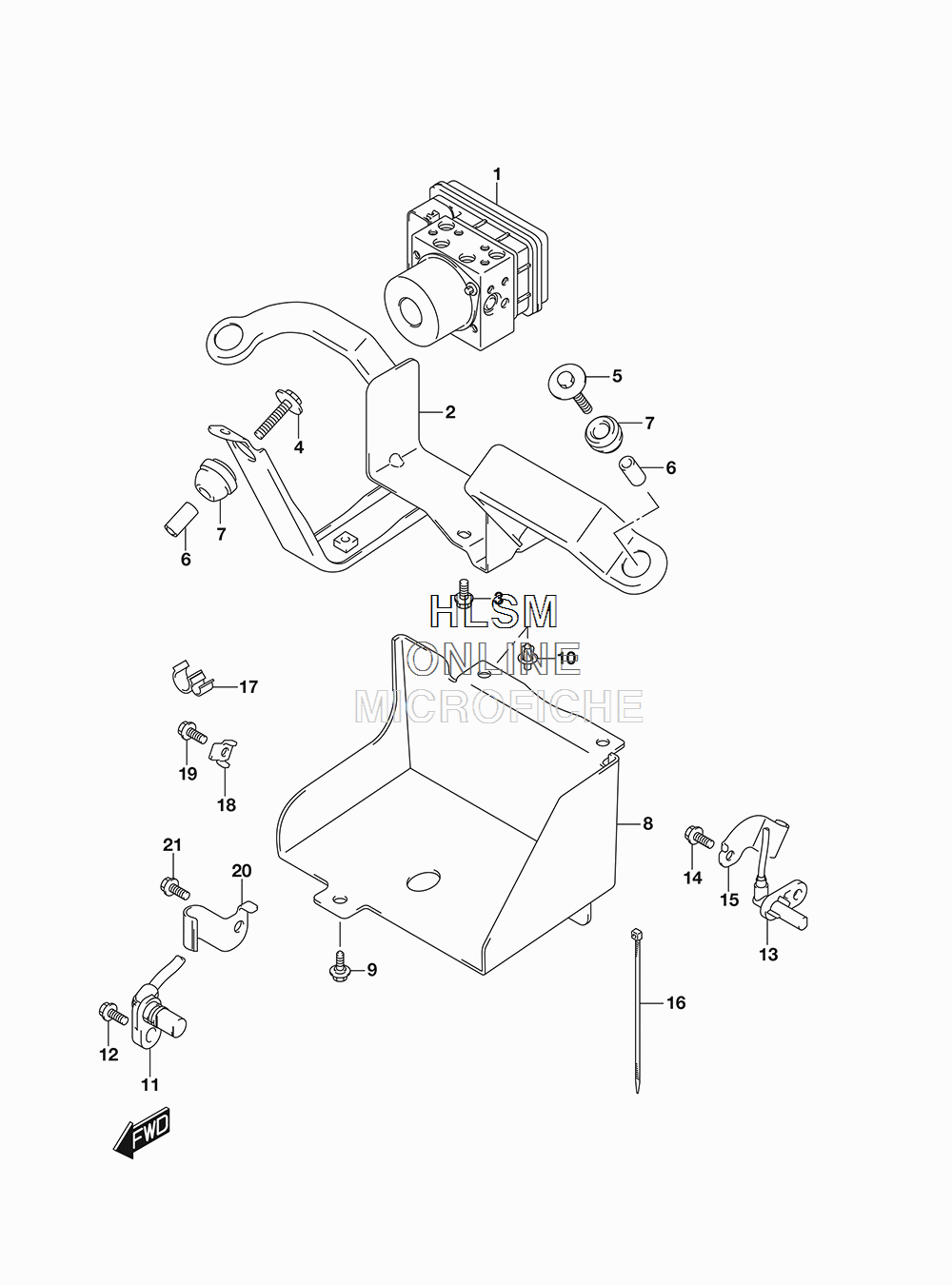

HYDRAULIC UNIT для Suzuki DL650A V-STORM 650 - 2018 года выпуска
-
№АртикулНазвание
-
155610-28K00 UNIT ASSY, HYDRAULIC ABSUNIT ASSY, HYDRAULIC ABS
-
255660-11J10 HOLDER, HYDR UNIT ABSHOLDER, HYDR UNIT ABS
-
301550-0612A BOLTBOLT
-
409116-06171 BOLT (6X30)BOLT (6X30)
-
509116-06176 BOLT (6X37)BOLT (6X37)
-
609180-06296 SPACER (6.5X10X20)SPACER (6.5X10X20)
-
709320-10061 CUSHIONCUSHION
-
855667-27G10 COVER, HYDR ABS UNITCOVER, HYDR ABS UNIT
-
909111-06066 BOLT (6X16)BOLT (6X16)
-
1009409-08308-5ES CLIP (BLACK)CLIP (BLACK)
-
1155710-28K00 SENSOR, FR WHEEL SPEEDSENSOR, FR WHEEL SPEED
-
1201547-0616B BOLTBOLT
-
1365710-28K00 SENSOR, RR WHEEL SPEEDSENSOR, RR WHEEL SPEED
-
1401547-0616A BOLTBOLT
-
1565731-28K00 CLAMP, RR WHEEL SPEED SENSORCLAMP, RR WHEEL SPEED SENSOR
-
1609407-14407 CLAMP (L:145)CLAMP (L:145)
-
1709408-00266 CLAMPCLAMP
-
1834938-14F00 GUIDE, SENSOR LEADGUIDE, SENSOR LEAD
-
1901547-0612A BOLTBOLT
-
2055731-28K00 CLAMP, FR WHL SPD SENSORCLAMP, FR WHL SPD SENSOR
-
2101547-0612A BOLTBOLT
