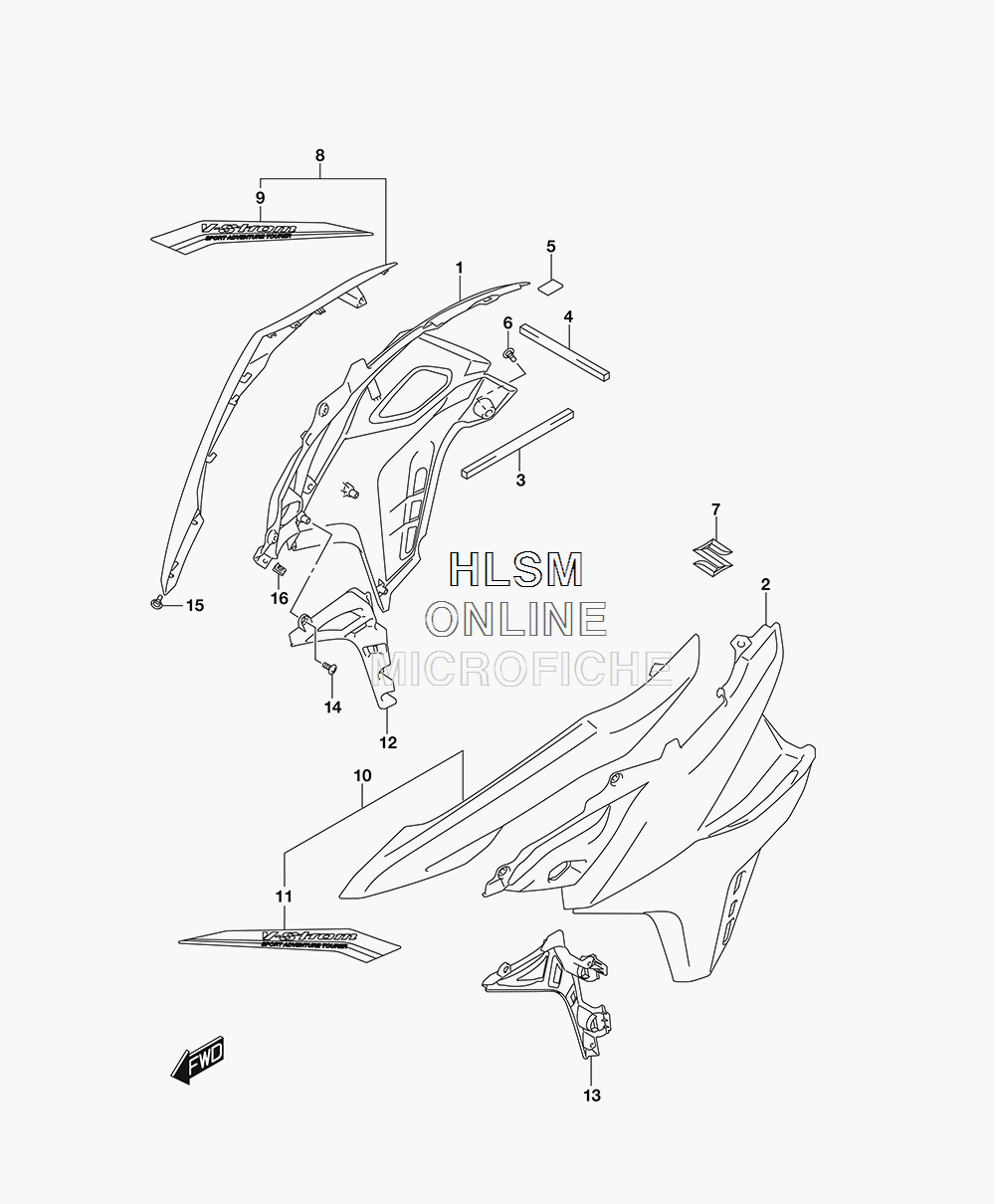

COWLING - SIDE для Suzuki DL650A V-STORM 650 - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    94413-28K00 COVER, SIDE COWL (RH) (FOR - YVB - BLACK)
    COVER, SIDE COWL (RH) (FOR - YVB - BLACK)
  • 1
    94413-28K00 COVER, SIDE COWL (RH) (FOR - YWW - WHITE)
    COVER, SIDE COWL (RH) (FOR - YWW - WHITE)
  • 2
    94414-28K00 COVER, SIDE COWL (LH) (FOR - YVB - BLACK)
    COVER, SIDE COWL (LH) (FOR - YVB - BLACK)
  • 2
    94414-28K00 COVER, SIDE COWL (LH) (FOR - YWW - WHITE)
    COVER, SIDE COWL (LH) (FOR - YWW - WHITE)
  • 3
    44176-31J00 CUSHION, TANK COVER SIDE NO.1 (FOR YVB - BLACK)
    CUSHION, TANK COVER SIDE NO.1 (FOR YVB - BLACK)
  • 3
    44176-31J00 CUSHION, TANK COVER SIDE NO.1 (FOR YWW - WHITE)
    CUSHION, TANK COVER SIDE NO.1 (FOR YWW - WHITE)
  • 4
    44178-31J00 CUSHION, TANK COVER SIDE NO.3 (FOR YVB - BLACK)
    CUSHION, TANK COVER SIDE NO.3 (FOR YVB - BLACK)
  • 4
    44178-31J00 CUSHION, TANK COVER SIDE NO.3 (FOR YWW - WHITE)
    CUSHION, TANK COVER SIDE NO.3 (FOR YWW - WHITE)
  • 5
    44612-13600 CUSHION, FUEL TANK NO, 2 (FOR YVB - BLACK)
    CUSHION, FUEL TANK NO, 2 (FOR YVB - BLACK)
  • 5
    44612-13600 CUSHION, FUEL TANK NO, 2 (FOR YWW - WHITE)
    CUSHION, FUEL TANK NO, 2 (FOR YWW - WHITE)
  • 6
    47913-31J00 SCREW (FOR YVB - BLACK)
    SCREW (FOR YVB - BLACK)
  • 6
    47913-31J00 SCREW (FOR YWW - WHITE)
    SCREW (FOR YWW - WHITE)
  • 7
    68111-47HA0 EMBLEM, "S" (FOR YVB - BLACK)
    EMBLEM, "S" (FOR YVB - BLACK)
  • 7
    68111-47HA0 EMBLEM, "S" (FOR YWW - WHITE)
    EMBLEM, "S" (FOR YWW - WHITE)
  • 8-1
    94420-28K10-QEB COVER, SIDE COWL (RH) (QEB - GRAY)
    COVER, SIDE COWL (RH) (QEB - GRAY)
  • 8-2
    94420-28K10-YVB COVER, SIDE COWL (RH) (YVB - BLACK)
    COVER, SIDE COWL (RH) (YVB - BLACK)
  • 8-3
    94420-28K10-YWW COVER, SIDE COWL (RH) (YWW - WHITE)
    COVER, SIDE COWL (RH) (YWW - WHITE)
  • 9-1
    68275-28K10-BQ9 ...TAPE, COVER SIDE (RH) (BQ9 - YELLOW/WHITE/BLUE/BLACK/SILVER/GRAY)
    ...TAPE, COVER SIDE (RH) (BQ9 - YELLOW/WHITE/BLUE/BLACK/SILVER/GRAY)
  • 9-2
    68275-28K10-BRH ...TAPE, COVER SIDE (RH) (BRH - GRAY/RED/WHITE/BLACK/SILVER)
    ...TAPE, COVER SIDE (RH) (BRH - GRAY/RED/WHITE/BLACK/SILVER)
  • 9-3
    68275-28K10-BRJ ...TAPE, COVER SIDE (RH) (BRJ - BLACK/YELLOW/GRAY/SILVER/WHITE)
    ...TAPE, COVER SIDE (RH) (BRJ - BLACK/YELLOW/GRAY/SILVER/WHITE)
  • 10-1
    94430-28K10-QEB COVER, SIDE COWL (LH) (QEB - GRAY)
    COVER, SIDE COWL (LH) (QEB - GRAY)
  • 10-2
    94430-28K10-YVB COVER, SIDE COWL (LH) (YVB - BLACK)
    COVER, SIDE COWL (LH) (YVB - BLACK)
  • 10-3
    94430-28K10-YWW COVER, SIDE COWL (LH) (YWW - WHITE)
    COVER, SIDE COWL (LH) (YWW - WHITE)
  • 11-1
    68285-28K10-BQ9 ...TAPE, COVER SIDE (LH) (BQ9 - YELLOW/WHITE/BLUE/BLACK/SILVER/GRAY)
    ...TAPE, COVER SIDE (LH) (BQ9 - YELLOW/WHITE/BLUE/BLACK/SILVER/GRAY)
  • 11-2
    68285-28K10-BRH ...TAPE, COVER SIDE (LH) (BRH - GRAY/RED/WHITE/BLACK/SILVER)
    ...TAPE, COVER SIDE (LH) (BRH - GRAY/RED/WHITE/BLACK/SILVER)
  • 11-3
    68285-28K10-BRJ ...TAPE, COVER SIDE (LH) (BRJ - BLACK/YELLOW/GRAY/SILVER/WHITE)
    ...TAPE, COVER SIDE (LH) (BRJ - BLACK/YELLOW/GRAY/SILVER/WHITE)
  • 12
    94461-28K00 COVER, SIDE COWL INNER (RH)
    COVER, SIDE COWL INNER (RH)
  • 13
    94462-28K00 COVER, SIDE COWL INNER (LH)
    COVER, SIDE COWL INNER (LH)
  • 14
    03541-0512A SCREW
    SCREW
  • 15
    09139-05091 SCREW, COWLING LOWER
    SCREW, COWLING LOWER
  • 16
    09148-05052 NUT (M5)
    NUT (M5)
