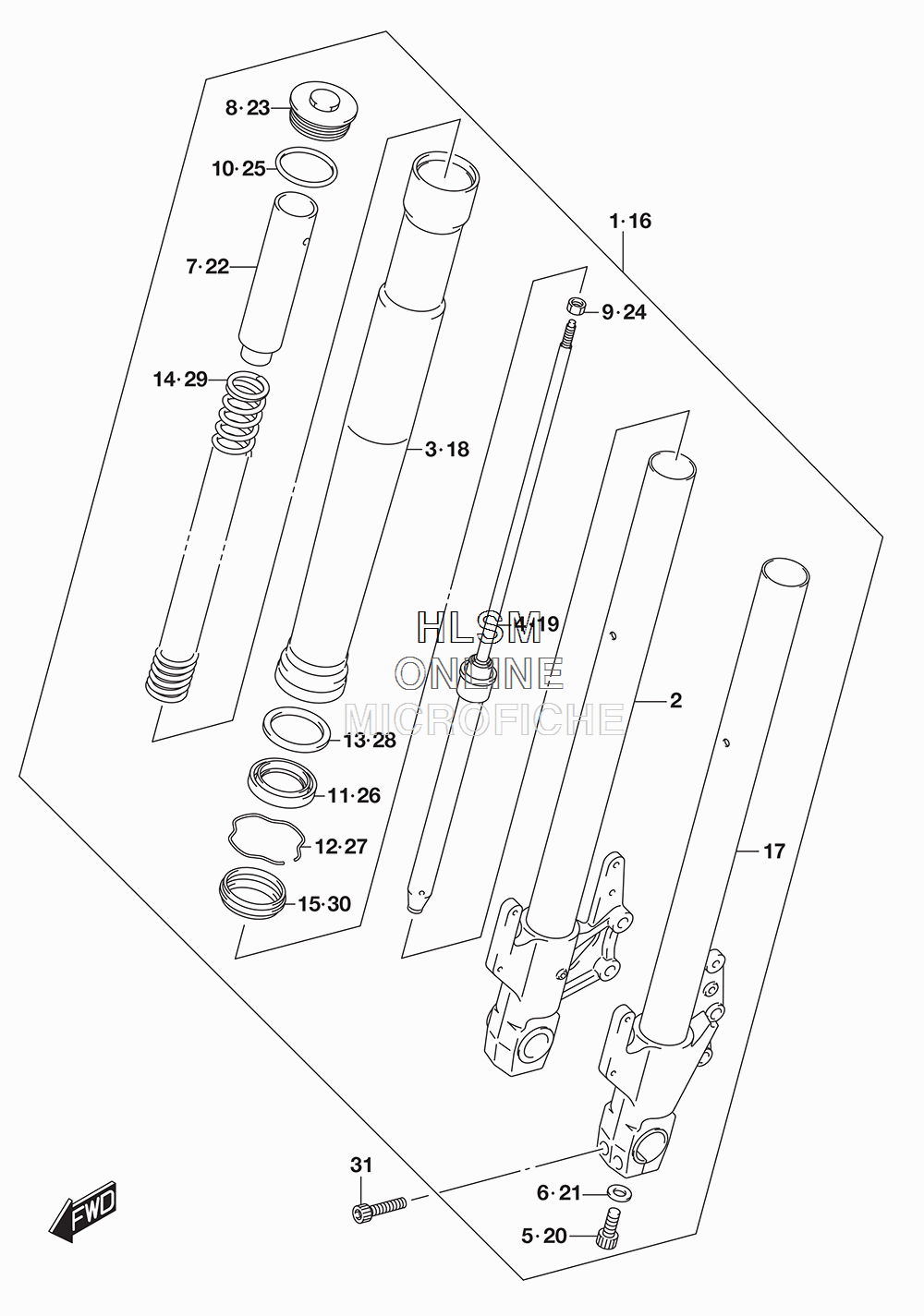

SUSPENSION - FRONT FORK DAMPER для Suzuki VZ1500 M90 - 2017 года выпуска
-
№АртикулНазвание
-
151103-40H30 DAMPER ASSY, FRONT FORK (RH)DAMPER ASSY, FRONT FORK (RH)
-
251110-40H30 ...TUBE, INNER (RH)...TUBE, INNER (RH)
-
351130-40H30 ...TUBE, OUTER...TUBE, OUTER
-
451146-40H00 ...CYLINDER...CYLINDER
-
551147-05H00 ...BOLT...BOLT
-
651148-41310 ...GASKET...GASKET
-
751176-21H00 ...SPACER, SPRING...SPACER, SPRING
-
851351-40H30 ...CAP...CAP
-
951352-13A60 ...NUT, ROD...NUT, ROD
-
1062278-14100 ...O RING...O RING
-
1151153-41G00 ...SEAL, OIL...SEAL, OIL
-
1251156-14200 ...RING, STOPPER...RING, STOPPER
-
1351158-14200 ...WASHER...WASHER
-
1451171-40H00 ...SPRING...SPRING
-
1551173-41G00 ...SEAL, DUST...SEAL, DUST
-
1651104-40H30 DAMPER ASSY, FRONT FORK (LH)DAMPER ASSY, FRONT FORK (LH)
-
1751120-40H30 ...TUBE, INNER (LH)...TUBE, INNER (LH)
-
1851130-40H30 ...TUBE, OUTER...TUBE, OUTER
-
1951146-40H00 ...CYLINDER...CYLINDER
-
2051147-05H00 ...BOLT...BOLT
-
2151148-41310 ...GASKET...GASKET
-
2251176-21H00 ...SPACER, SPRING...SPACER, SPRING
-
2351351-40H30 ...CAP...CAP
-
2451352-13A60 ...NUT, ROD...NUT, ROD
-
2562278-14100 ...O RING...O RING
-
2651153-41G00 ...SEAL, OIL...SEAL, OIL
-
2751156-14200 ...RING, STOPPER...RING, STOPPER
-
2851158-14200 ...WASHER...WASHER
-
2951171-40H00 ...SPRING...SPRING
-
3051173-41G00 ...SEAL, DUST...SEAL, DUST
-
3151328-31F30 BOLTBOLT
