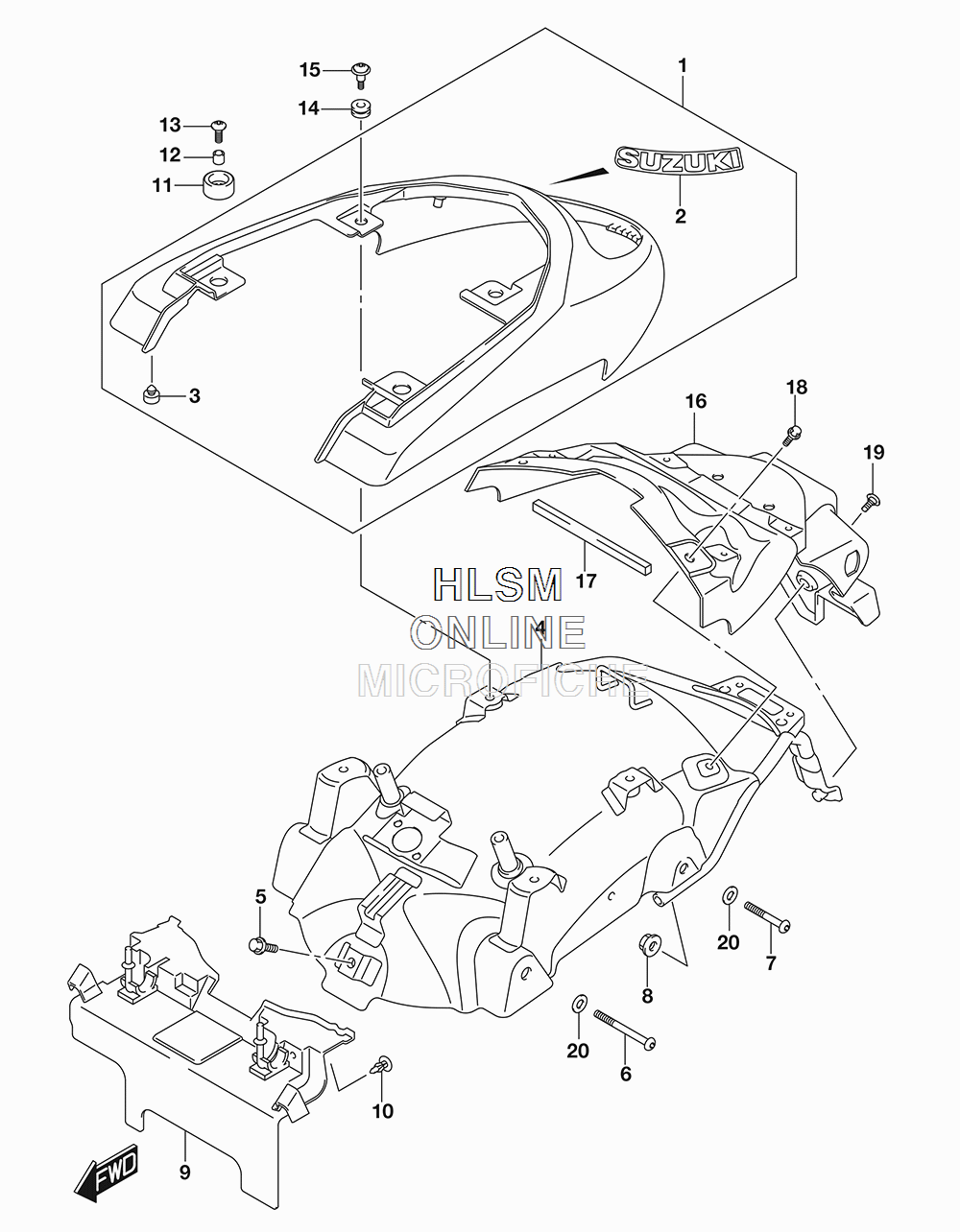

FENDER - REAR для Suzuki VZ1500 M90 - 2017 года выпуска
-
№АртикулНазвание
-
1-163110-40H00-6UX FENDER, REAR (6UX - BLACK FOR YVB - BLACK)FENDER, REAR (6UX - BLACK FOR YVB - BLACK)
-
1-263110-40H00-YYG FENDER, REAR (FOR YYG - RED)FENDER, REAR (FOR YYG - RED)
-
2-168641-19F00-YJH ...EMBLEM (YJH - GRAY FOR REF 1-1 6UX - BLACK FOR YVB - BLACK)...EMBLEM (YJH - GRAY FOR REF 1-1 6UX - BLACK FOR YVB - BLACK)
-
2-268281-24F10-019 ...EMBLEM (019 - BLACK FOR REF 1-2 YYG - RED)...EMBLEM (019 - BLACK FOR REF 1-2 YYG - RED)
-
309250-06012 ...PLUG (OD:10)...PLUG (OD:10)
-
463140-40H10 BRACE, FENDERBRACE, FENDER
-
501550-0812A BOLTBOLT
-
609106-08182 BOLT (8X70)BOLT (8X70)
-
709106-08183 BOLT (8X50)BOLT (8X50)
-
808316-1008A NUTNUT
-
963112-40H00 MUDGUARD, FRONTMUDGUARD, FRONT
-
1009409-06318 CLIPCLIP
-
1109320-10045 CUSHIONCUSHION
-
1209180-06286 SPACER (6.5X10X9.4)SPACER (6.5X10X9.4)
-
1309139-06139 SCREW (6X16)SCREW (6X16)
-
1409320-09016 CUSHIONCUSHION
-
1509139-06190 BOLT (6X20)BOLT (6X20)
-
1663311-40H00 EXTENSIONEXTENSION
-
1747161-29B00 CUSHIONCUSHION
-
1809111-06107 BOLT (6X12)BOLT (6X12)
-
1909139-06144 SCREW (6X12)SCREW (6X12)
-
2008322-0108A WASHERWASHER
