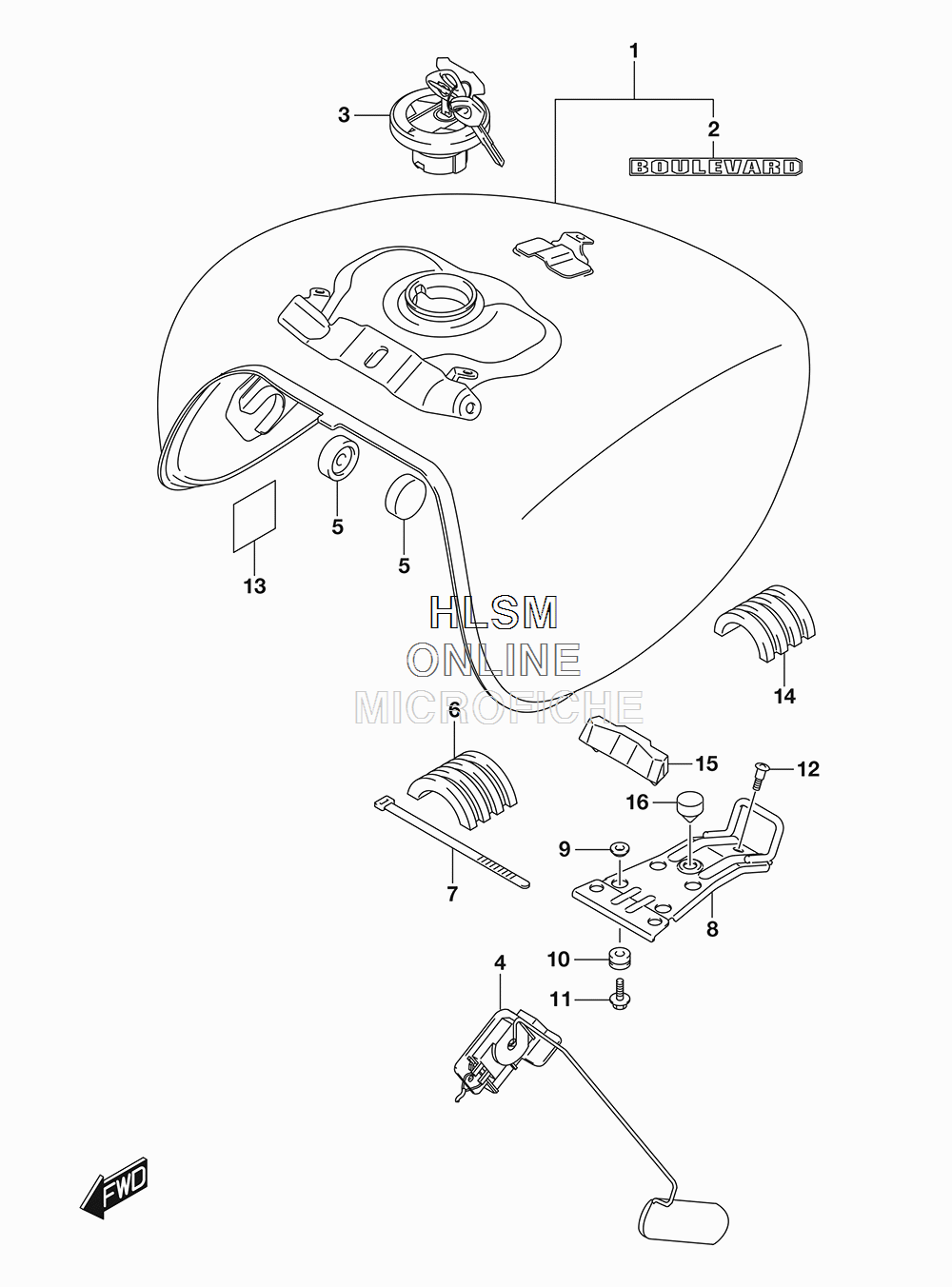

FUEL TANK (CALIF.) для Suzuki VZ1500 M90 - 2017 года выпуска
-
№АртикулНазвание
-
1-144100-40H70-YVB TANK ASSY, FUEL (YVB - BLACK)TANK ASSY, FUEL (YVB - BLACK)
-
1-244100-40H70-YYG TANK ASSY, FUEL (YYG - RED)TANK ASSY, FUEL (YYG - RED)
-
2-168111-48G20-YHG ...EMBLEM (YHG - GRAY FOR REF 1-1 YVB - BLACK)...EMBLEM (YHG - GRAY FOR REF 1-1 YVB - BLACK)
-
2-268111-48G20-019 ...EMBLEM (019 - BLACK FOR REF 1-2 YYG - RED)...EMBLEM (019 - BLACK FOR REF 1-2 YYG - RED)
-
344200-39870 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
434810-40H00 GUAGE ASSY, FUEL TANKGUAGE ASSY, FUEL TANK
-
509329-10007 CUSHIONCUSHION
-
644541-04F00 CUSHION, FUEL TANK, UPPERCUSHION, FUEL TANK, UPPER
-
709407-30402 CLAMP (L:300)CLAMP (L:300)
-
844530-06J00 BRACKET, REARBRACKET, REAR
-
909169-06062 WASHERWASHER
-
1009320-08001 CUSHIONCUSHION
-
1109116-06192 BOLT (6X20)BOLT (6X20)
-
1201550-0812A BOLTBOLT
-
1344283-40H00 PROTECTORPROTECTOR
-
1444541-06J00 CUSHION, TANK SIDECUSHION, TANK SIDE
-
1544545-06J00 CUSHION, FUEL TANK BRACKETCUSHION, FUEL TANK BRACKET
-
1609321-10011 CUSHIONCUSHION
