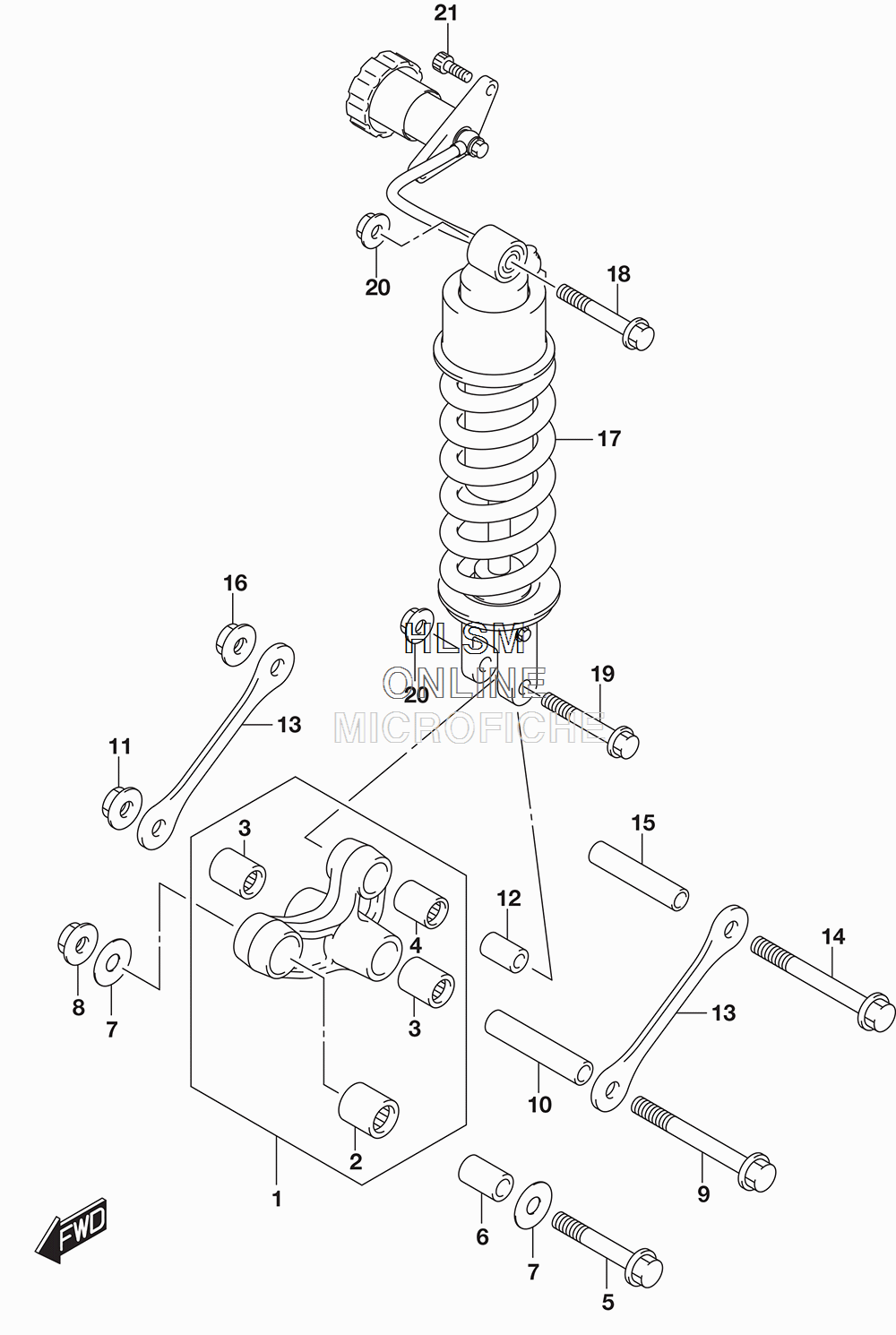

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki V-STORM 650 [DL650A] - 2017 года выпуска
-
№АртикулНазвание
-
162600-06870 LEVER SET, REAR CUSHIONLEVER SET, REAR CUSHION
-
209263-20073 ...BEARING (20X27X30) FRONT...BEARING (20X27X30) FRONT
-
309263-17037 ...BEARING (17X24X25) CENTER...BEARING (17X24X25) CENTER
-
409263-17034 ...BEARING (17X24X26) REAR...BEARING (17X24X26) REAR
-
562658-19F00 BOLT, RR CUSHION LEVER FRBOLT, RR CUSHION LEVER FR
-
662684-12C00 SPACER, RR CUSHION LEVER FRSPACER, RR CUSHION LEVER FR
-
709160-12037 WASHER (12X34X1)WASHER (12X34X1)
-
809159-12056 NUTNUT
-
962621-19D00 BOLT, RR CUSHION LEVER CTRBOLT, RR CUSHION LEVER CTR
-
1009180-12122 SPACER (12X17X85) CENTERSPACER (12X17X85) CENTER
-
1109159-12056 NUTNUT
-
1262684-40A10 SPACER, RR CUSHION LEVER RRSPACER, RR CUSHION LEVER RR
-
1362641-06G00 ROD, REAR CUSHION LEVERROD, REAR CUSHION LEVER
-
1462621-19D00 BOLT, RR CUSHION RODBOLT, RR CUSHION ROD
-
1509180-12122 SPACER (12X17X85) RODSPACER (12X17X85) ROD
-
1609159-12056 NUTNUT
-
1762100-28K10-019 ABSORBER ASSY, REAR SHOCK (BLACK)ABSORBER ASSY, REAR SHOCK (BLACK)
-
1809103-10033 BOLT (10X70) UPPERBOLT (10X70) UPPER
-
1909103-10143 BOLT (10X55) LOWERBOLT (10X55) LOWER
-
2009159-10115 NUTNUT
-
2107130-0816A BOLTBOLT
