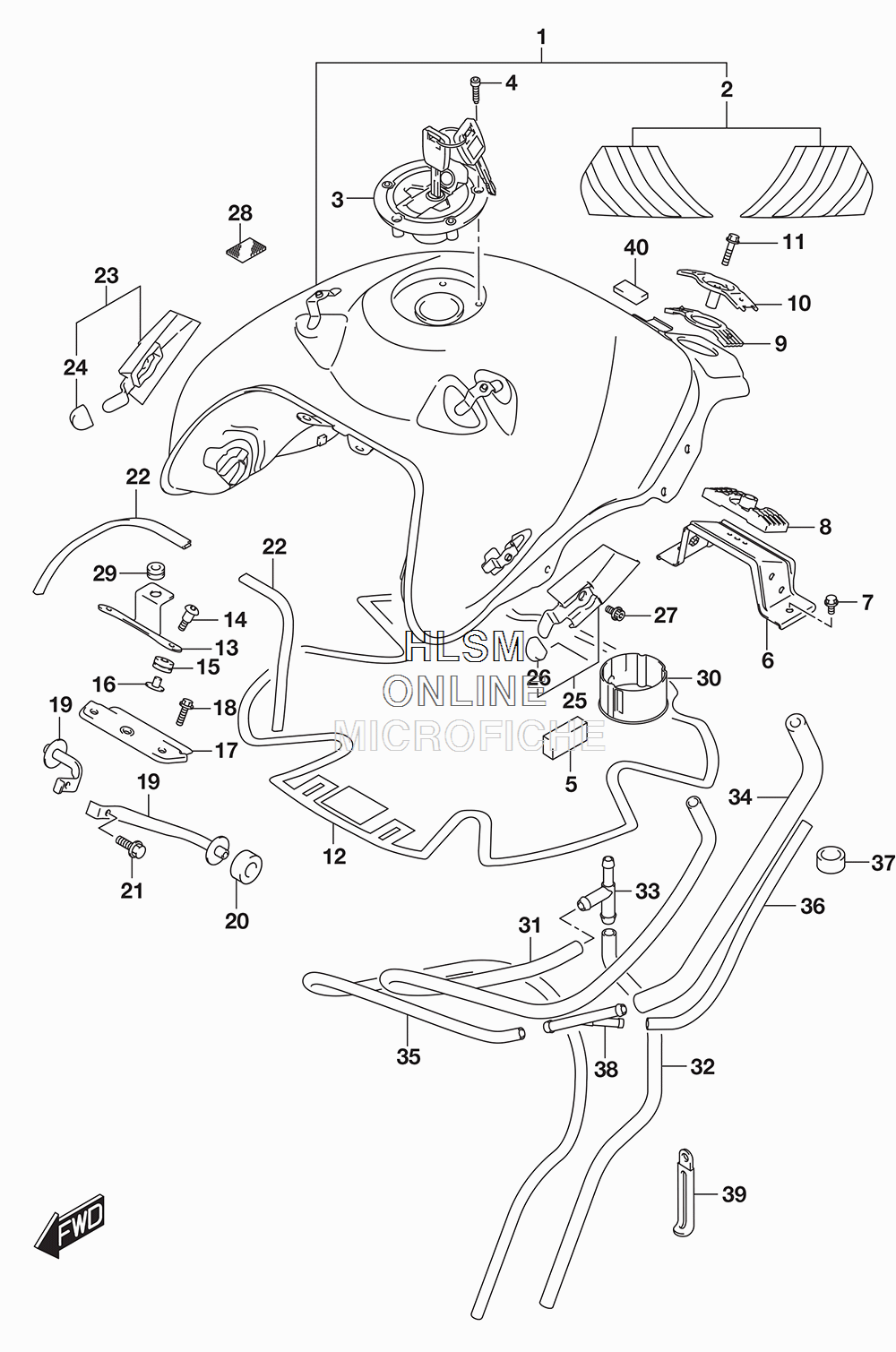

FUEL TANK (YU1 - YELLOW) для Suzuki V-STORM 650 [DL650A] - 2017 года выпуска
-
№АртикулНазвание
-
144100-28KA0-YU1 TANK ASSY, FUEL (YU1 - YELLOW)TANK ASSY, FUEL (YU1 - YELLOW)
-
268110-28K00-GY8 ...TAPE SET, FUEL TANK (GY8 - CHAMPION YELLOW NO. 2/BLACK (019)...TAPE SET, FUEL TANK (GY8 - CHAMPION YELLOW NO. 2/BLACK (019)
-
344200-17820 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
444244-11J00 BOLT, FUEL TANK FILLER CAPBOLT, FUEL TANK FILLER CAP
-
544541-28K00 CUSHION, FUEL TANK SIDECUSHION, FUEL TANK SIDE
-
644550-06G10 BRACKET, REAR LOWERBRACKET, REAR LOWER
-
701550-0816A BOLTBOLT
-
844545-06G00 CUSHION, LOWERCUSHION, LOWER
-
944542-06G00 CUSHION, UPPERCUSHION, UPPER
-
1044530-06G00 BRACKET, UPPERBRACKET, UPPER
-
1101550-0835A BOLTBOLT
-
1244194-11J00 SHIELD, TANK CENTERSHIELD, TANK CENTER
-
1344154-11J00 BRACKET, FRONT COVERBRACKET, FRONT COVER
-
1409139-06192 SCREW (6X25)SCREW (6X25)
-
1544511-16G00 CUSHION, FUEL TANK FRONTCUSHION, FUEL TANK FRONT
-
1644512-16G00 WASHER, FUEL TANK FRONTWASHER, FUEL TANK FRONT
-
1744520-11J00 BRACKET, FUEL TANK FRONTBRACKET, FUEL TANK FRONT
-
1801550-0620B BOLTBOLT
-
1944560-11J00 BRACKET, FRONT SIDEBRACKET, FRONT SIDE
-
2044542-11J00 CUSHION, FRONT SIDE BRACKETCUSHION, FRONT SIDE BRACKET
-
2101550-0612A BOLTBOLT
-
2268241-11J01 MOLDING, FUEL TANKMOLDING, FUEL TANK
-
2344130-28K00 BRACKET, FUEL TANK COVER RIGHT HANDBRACKET, FUEL TANK COVER RIGHT HAND
-
2409329-18001 ...CUSHION...CUSHION
-
2544140-28K00 BRACKET, FUEL TANK COVER LEFT HANDBRACKET, FUEL TANK COVER LEFT HAND
-
2609329-18001 ...CUSHION...CUSHION
-
2707120-0610A BOLTBOLT
-
2844572-37H00 FASTENER, FUEL TANK COVERFASTENER, FUEL TANK COVER
-
2909320-06504 CUSHIONCUSHION
-
3044121-28K00 VESSEL, FUEL TANK INNERVESSEL, FUEL TANK INNER
-
3144423-28K00 HOSE, FUEL TANK DRAIN NO.1HOSE, FUEL TANK DRAIN NO.1
-
3244423-11J30 HOSE, FUEL TANK DRAIN NO.2HOSE, FUEL TANK DRAIN NO.2
-
3309367-08005 3 WAY3 WAY
-
3444424-28K00 HOSE, FUEL TANK BREATHER NO.1HOSE, FUEL TANK BREATHER NO.1
-
3509352-50823-690 HOSE (5X8.2X690)HOSE (5X8.2X690)
-
3609352-50823-600 HOSE (5X8.2X600)HOSE (5X8.2X600)
-
3709352-13162-010 HOSE (13.5X16.5X10)HOSE (13.5X16.5X10)
-
3809367-06007 3 WAY3 WAY
-
3909404-06433 CLAMP (L:80)CLAMP (L:80)
-
4045516-01H00 CUSHIONCUSHION
