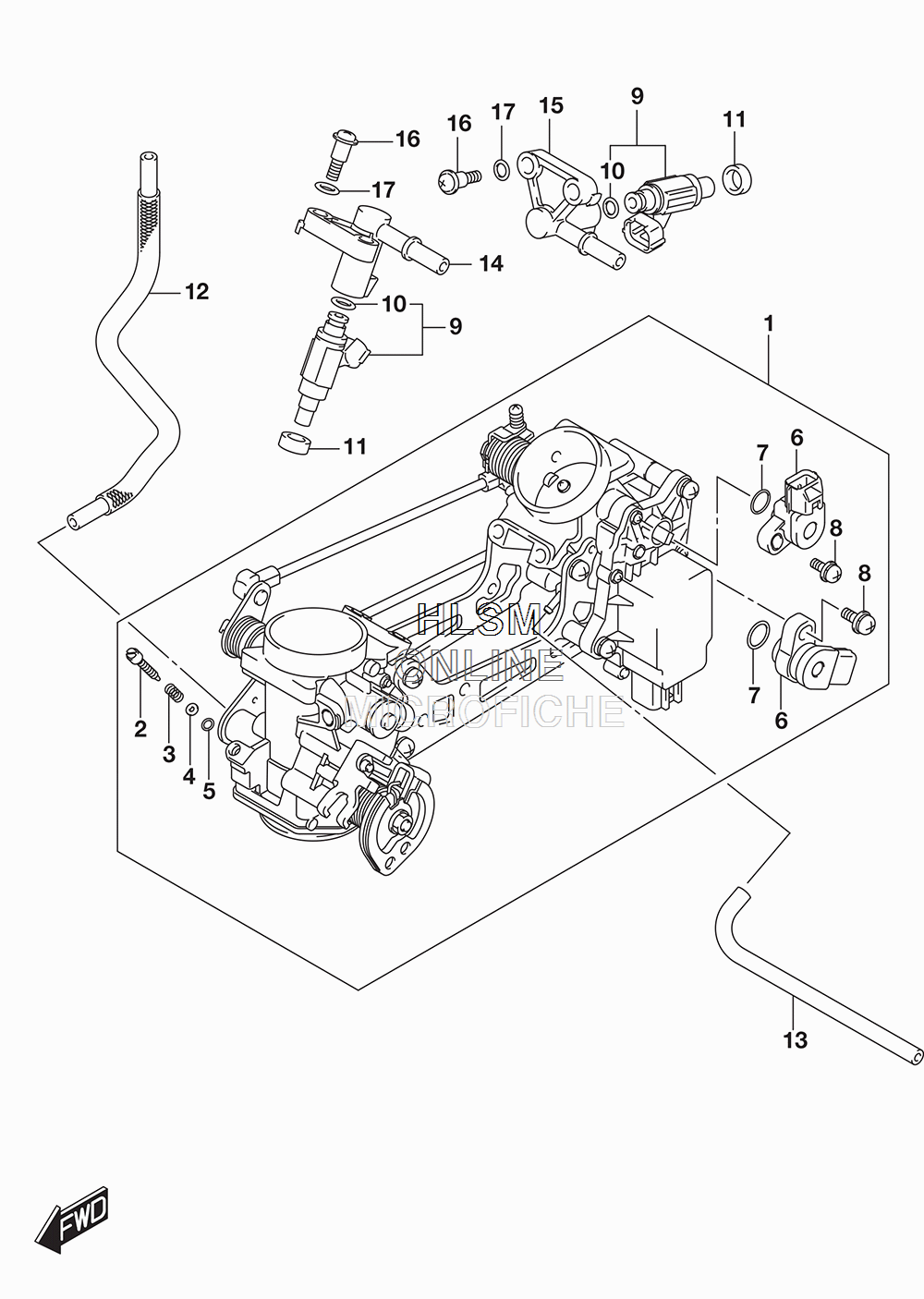

CARBURETOR - THROTTLE BODY ASSY. (EXCEPT CALIF) для Suzuki V-STORM 650 [DL650A] - 2017 года выпуска
-
№АртикулНазвание
-
113405-28K00 THROTTLE BODYTHROTTLE BODY
-
213269-33E00 ...SCREW...SCREW
-
313268-48700 ...SPRING, THROTTLE SCREW...SPRING, THROTTLE SCREW
-
413606-47A00 ...WASHER...WASHER
-
513295-29900 ...O RING...O RING
-
613580-27G21 ...SENSOR ASSY...SENSOR ASSY
-
713575-29G00 ...O RING...O RING
-
813605-02F00 ...SCREW...SCREW
-
915710-11J00 INJECTOR ASSYINJECTOR ASSY
-
1015717-58B00 ...O RING...O RING
-
1115722-29G00 SEALSEAL
-
1213683-28K00 HOSEHOSE
-
1313683-44H10 HOSEHOSE
-
1415731-11J00 DELIVERY PIPEDELIVERY PIPE
-
1515732-11J00 DELIVERY PIPEDELIVERY PIPE
-
1613601-11J00 SCREW, DELIVERY PIPESCREW, DELIVERY PIPE
-
1713602-29G00 PACKINGPACKING
