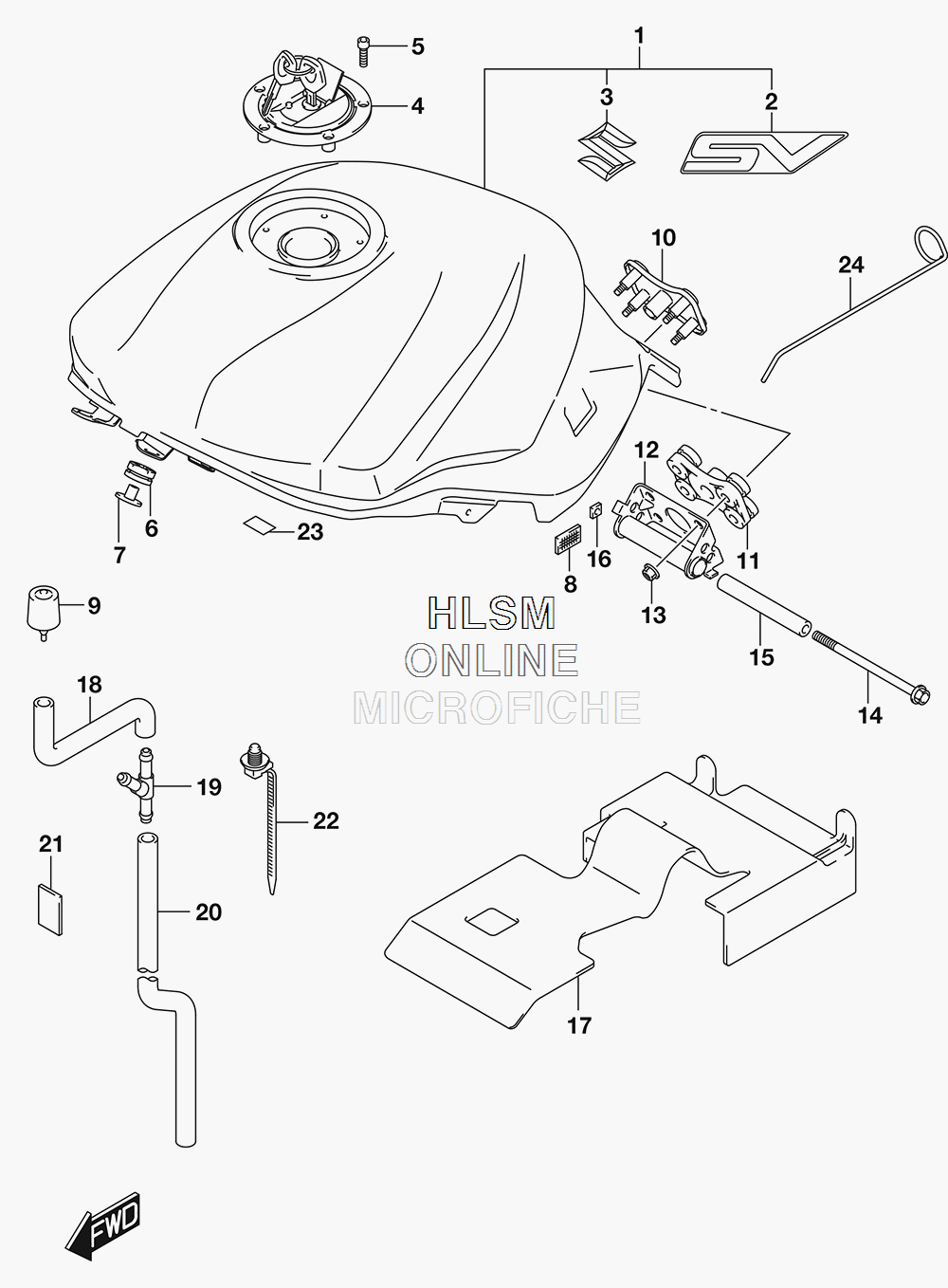

FUEL TANK (CALIF.) (YKV - BLACK) для Suzuki SV650 - 2017 года выпуска`
-
№АртикулНазвание
-
144100-18K20-YKV TANK ASSY, FUEL (YKV - BLACK)TANK ASSY, FUEL (YKV - BLACK)
-
268111-18K00-CTY ...EMBLEM,"SV" (CTY - SILVER/BLACK)...EMBLEM,"SV" (CTY - SILVER/BLACK)
-
368111-47HA0 ...EMBLEM, S...EMBLEM, S
-
444200-16870 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
544244-11J00 BOLT, FUEL TANK FILLER CAPBOLT, FUEL TANK FILLER CAP
-
644511-18K00 CUSHION, FUEL TANK FRONTCUSHION, FUEL TANK FRONT
-
744512-04K00 SPACER, FUEL TANK FRONTSPACER, FUEL TANK FRONT
-
844572-13G00 FASTENER, SIDEFASTENER, SIDE
-
944542-29G00 CUSHION, FUEL TANK SIDECUSHION, FUEL TANK SIDE
-
1044570-16G00 BRACKET, REAR UPPERBRACKET, REAR UPPER
-
1144542-16G00 CUSHION, FUEL TANK REARCUSHION, FUEL TANK REAR
-
1244530-44H00 BRACKET, FUEL TANK REARBRACKET, FUEL TANK REAR
-
1308319-3106A NUTNUT
-
1409103-06060 BOLT (6X100)BOLT (6X100)
-
1544561-35F00 SPACER, FUEL TANK REARSPACER, FUEL TANK REAR
-
1608318-1106A NUTNUT
-
1744191-18K00 SHEET, HEAT SHIELD RUBBERSHEET, HEAT SHIELD RUBBER
-
1844423-18K00 HOSE, FUEL TANK DRAIN NO.1HOSE, FUEL TANK DRAIN NO.1
-
1909367-08010 3 WAY3 WAY
-
2044423-18K10 HOSE, FUEL TANK DRAIN NO.2HOSE, FUEL TANK DRAIN NO.2
-
2144427-18K10 SHIELD, DRAIN HOSE HEATSHIELD, DRAIN HOSE HEAT
-
2209407-17403 CLAMP (L:170)CLAMP (L:170)
-
2336611-16G00 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
2444560-23H00 STAY, FUEL TANK (OPT)STAY, FUEL TANK (OPT)
