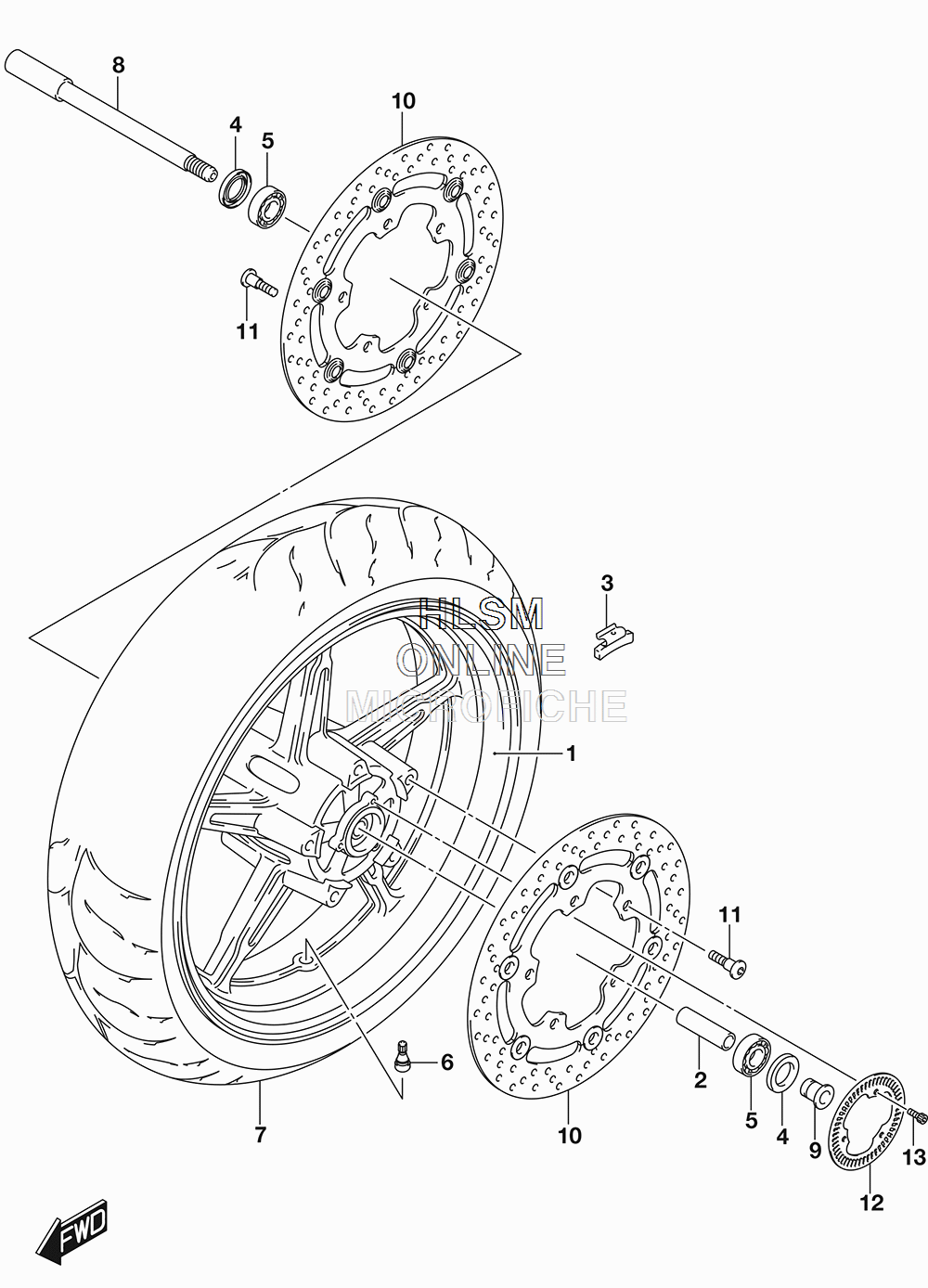

WHEEL - FRONT для Suzuki SV650 - 2017 года выпуска

  • №
    Артикул
    Название
  • 1-1
    54111-18K00-YLY WHEEL, FRONT (17M/CXMT3.50) (YLY - BLUE FOR YWW - WHITE)
    WHEEL, FRONT (17M/CXMT3.50) (YLY - BLUE FOR YWW - WHITE)
  • 1-2
    54111-18K00-019 WHEEL, FRONT (17M/CXMT3.50) (019 - BLACK FOR YKV - BLACK)
    WHEEL, FRONT (17M/CXMT3.50) (019 - BLACK FOR YKV - BLACK)
  • 1-3
    54111-18K00-019 WHEEL, FRONT (17M/CXMT3.50) (019 - BLACK FOR YSF - BLUE)
    WHEEL, FRONT (17M/CXMT3.50) (019 - BLACK FOR YSF - BLUE)
  • 1-4
    54111-18K00-019 WHEEL, FRONT (17M/CXMT3.50) (019 - BLACK FOR YVZ - RED)
    WHEEL, FRONT (17M/CXMT3.50) (019 - BLACK FOR YVZ - RED)
  • 2
    54731-44H00 SPACER, FRONT HUB BEARING
    SPACER, FRONT HUB BEARING
  • 3-1
    55411-22H00 BALANCER, WHEEL NO.1 (10G)
    BALANCER, WHEEL NO.1 (10G)
  • 3-2
    55412-22H00 BALANCER, WHEEL NO.2 (20G)
    BALANCER, WHEEL NO.2 (20G)
  • 3-3
    55413-22H00 BALANCER, WHEEL NO.3 (30G)
    BALANCER, WHEEL NO.3 (30G)
  • 4
    09285-22004 OIL SEAL (22X40X7)
    OIL SEAL (22X40X7)
  • 5
    08133-62037 BEARING
    BEARING
  • 6
    43130-24A00 VALVE ASSY, WHEEL RIM (TR412)
    VALVE ASSY, WHEEL RIM (TR412)
  • 7
    55110-44H01 TIRE, FRONT 120/70ZR17M/C (58W) (QUALIFIER J DUNLOP)
    TIRE, FRONT 120/70ZR17M/C (58W) (QUALIFIER J DUNLOP)
  • 8
    54711-08F00 AXLE, FRONT
    AXLE, FRONT
  • 9
    54751-44H00 SPACER, FRONT AXLE (LH)
    SPACER, FRONT AXLE (LH)
  • 10
    59210-38G10 DISC, FRONT BRAKE
    DISC, FRONT BRAKE
  • 11
    09106-08160 BOLT (8X21)
    BOLT (8X21)
  • 12
    54162-44H00 RING, SPEED SENSOR
    RING, SPEED SENSOR
  • 13
    07130-0512A BOLT
    BOLT
