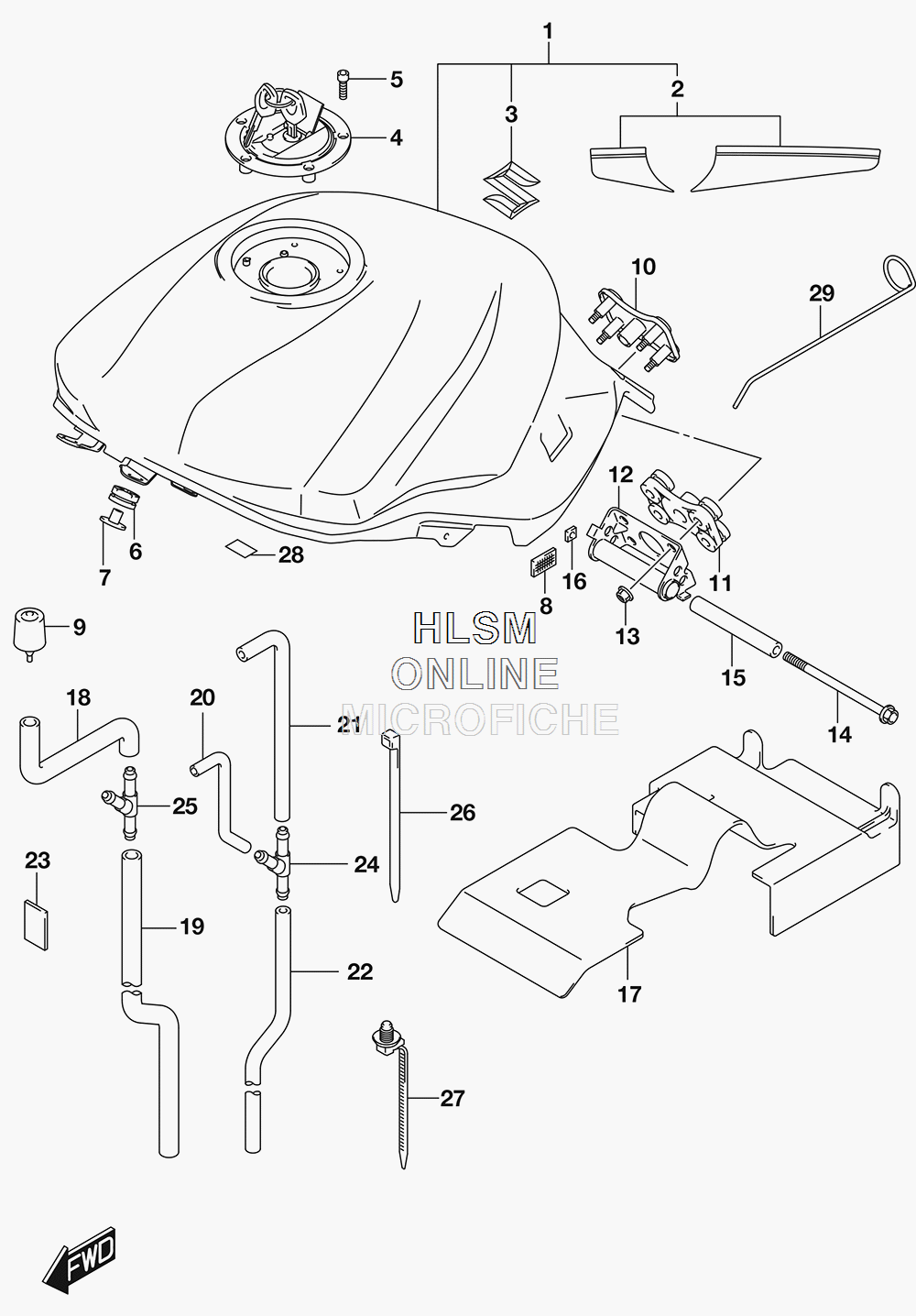

FUEL TANK (EXCEPT CALIF.) (YSF - BLUE/ YVZ - RED / YWW - WHITE) для Suzuki SV650 - 2017 года выпуска

  • №
    Артикул
    Название
  • 1-1
    44100-18K30-YSF TANK ASSY, FUEL (YSF - BLUE)
    TANK ASSY, FUEL (YSF - BLUE)
  • 1-2
    44100-18K30-YVZ TANK ASSY, FUEL (YVZ - RED)
    TANK ASSY, FUEL (YVZ - RED)
  • 1-3
    44100-18K30-YWW TANK ASSY, FUEL (YWW - WHITE)
    TANK ASSY, FUEL (YWW - WHITE)
  • 2-1
    68110-18K00-AGQ ...TAPE SET, FUEL TANK (AGQ - BLUE/WHITE FOR REF 1-1 YSF - BLUE)
    ...TAPE SET, FUEL TANK (AGQ - BLUE/WHITE FOR REF 1-1 YSF - BLUE)
  • 2-2
    68110-18K00-AGS ...TAPE SET, FUEL TANK (AGS - RED/WHITE FOR REF 1-2 YVZ - RED)
    ...TAPE SET, FUEL TANK (AGS - RED/WHITE FOR REF 1-2 YVZ - RED)
  • 2-3
    68110-18K00-AJP ...TAPE SET, FUEL TANK (AJP - BLUE/WHITE FOR REF 1-3 YWW - WHITE)
    ...TAPE SET, FUEL TANK (AJP - BLUE/WHITE FOR REF 1-3 YWW - WHITE)
  • 3
    68111-47HA0 ...EMBLEM, S
    ...EMBLEM, S
  • 4
    44200-16850 CAP SET, FUEL TANK
    CAP SET, FUEL TANK
  • 5
    44244-11J00 BOLT, FUEL TANK FILLER CAP
    BOLT, FUEL TANK FILLER CAP
  • 6
    44511-18K00 CUSHION, FUEL TANK FRONT
    CUSHION, FUEL TANK FRONT
  • 7
    44512-04K00 SPACER, FUEL TANK FRONT
    SPACER, FUEL TANK FRONT
  • 8
    44572-13G00 FASTENER, SIDE
    FASTENER, SIDE
  • 9
    44542-29G00 CUSHION, FUEL TANK SIDE
    CUSHION, FUEL TANK SIDE
  • 10
    44570-16G00 BRACKET, REAR UPPER
    BRACKET, REAR UPPER
  • 11
    44542-16G00 CUSHION, FUEL TANK REAR
    CUSHION, FUEL TANK REAR
  • 12
    44530-44H00 BRACKET, FUEL TANK REAR
    BRACKET, FUEL TANK REAR
  • 13
    08319-3106A NUT
    NUT
  • 14
    09103-06060 BOLT (6X100)
    BOLT (6X100)
  • 15
    44561-35F00 SPACER, FUEL TANK REAR
    SPACER, FUEL TANK REAR
  • 16
    08318-1106A NUT
    NUT
  • 17
    44191-18K00 SHEET, HEAT SHIELD RUBBER
    SHEET, HEAT SHIELD RUBBER
  • 18
    44423-18K00 HOSE, FUEL TANK DRAIN NO.1
    HOSE, FUEL TANK DRAIN NO.1
  • 19
    44423-18K10 HOSE, FUEL TANK DRAIN NO.2
    HOSE, FUEL TANK DRAIN NO.2
  • 20
    44424-15H10 HOSE, FUEL TANK DRAIN NO.3
    HOSE, FUEL TANK DRAIN NO.3
  • 21
    44424-18K00 HOSE, FUEL TANK BREATHER NO.1
    HOSE, FUEL TANK BREATHER NO.1
  • 22
    44424-18K10 HOSE, FUEL TANK BREATHER NO.2
    HOSE, FUEL TANK BREATHER NO.2
  • 23
    44427-18K00 SHIELD, DRAIN HOSE HEAT
    SHIELD, DRAIN HOSE HEAT
  • 24
    09367-06007 3 WAY
    3 WAY
  • 25
    09367-08010 3 WAY
    3 WAY
  • 26
    09407-14407 CLAMP (L:145)
    CLAMP (L:145)
  • 27
    09407-17403 CLAMP (L:170)
    CLAMP (L:170)
  • 28
    36611-16G00 PROTECTOR, WIRING HARNESS
    PROTECTOR, WIRING HARNESS
  • 29
    44560-23H00 STAY, FUEL TANK (OPT)
    STAY, FUEL TANK (OPT)
