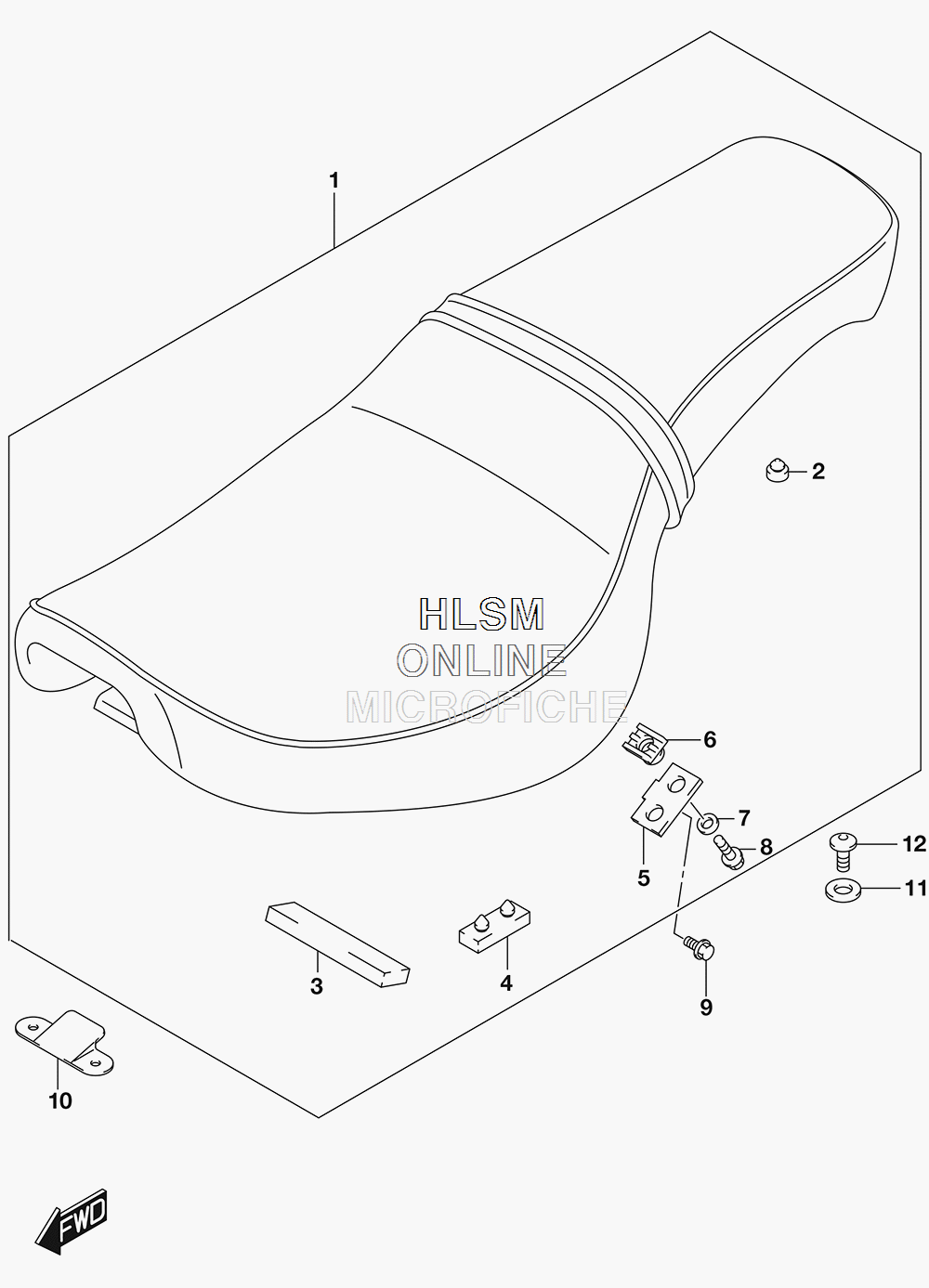

SEAT для Suzuki LS650B S40 - 2017 года выпуска
-
№АртикулНазвание
-
145100-24BA0-HW9 SEAT ASSY (HW9 - BLACK/BLACK)SEAT ASSY (HW9 - BLACK/BLACK)
-
245149-24B00 ...CUSHION, SEAT...CUSHION, SEAT
-
345116-24B00 ...CUSHION, CENTER FRONT...CUSHION, CENTER FRONT
-
445149-43500 ...CUSHION...CUSHION
-
545114-24B00 ...BRACKET, SEAT REAR...BRACKET, SEAT REAR
-
645118-24B00 ...CUSHION, SEAT REAR BRACKET...CUSHION, SEAT REAR BRACKET
-
709160-06066 ...WASHER (6.5X20X1.6)...WASHER (6.5X20X1.6)
-
801550-0625B ...BOLT...BOLT
-
901550-0612B BOLTBOLT
-
1045119-24B00 PLATE, SEAT HOOK FRONTPLATE, SEAT HOOK FRONT
-
1145149-24BA0 CUSHION, SEAT REARCUSHION, SEAT REAR
-
1209106-06117 BOLT (6X12)BOLT (6X12)
